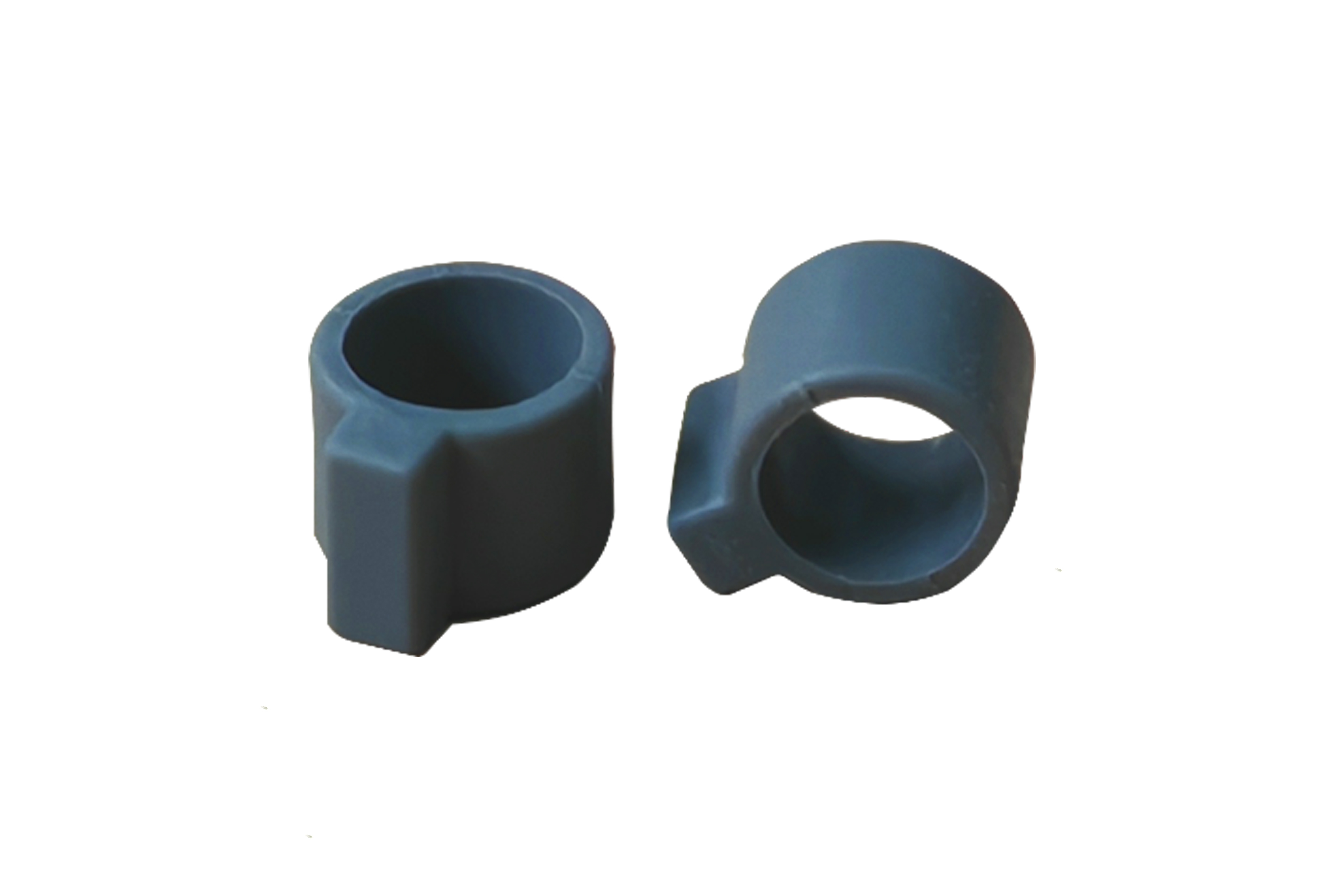

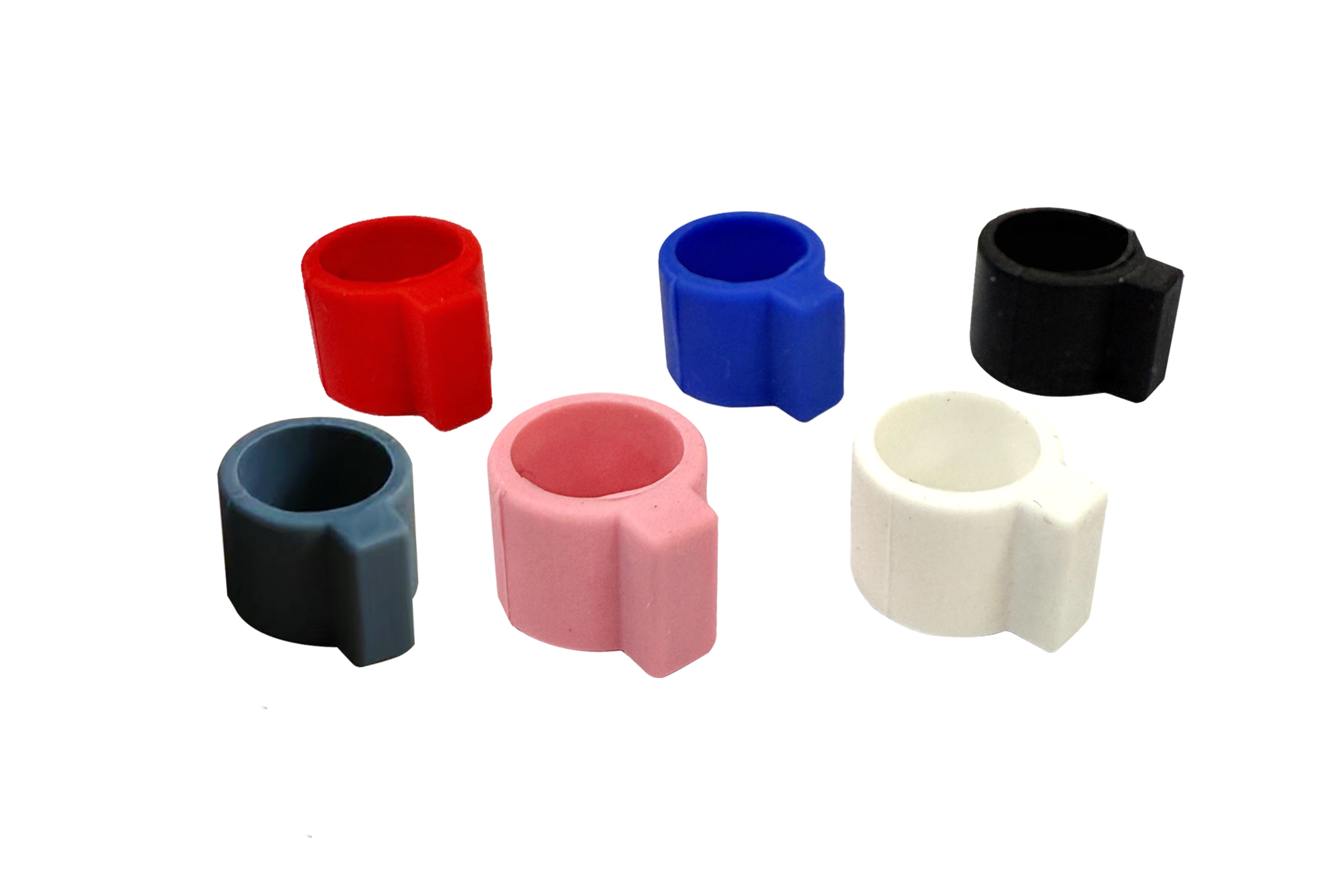

Product: UHF On-metal Silicone Tag Q-Elastic
Dimension: 12.3×10×8mm
RF Protocol: EPC Class 1 Gen 2, ISO 18000-6C
Key Application: On-metal, Asset Sticker Applications
MOQ: 100PCS

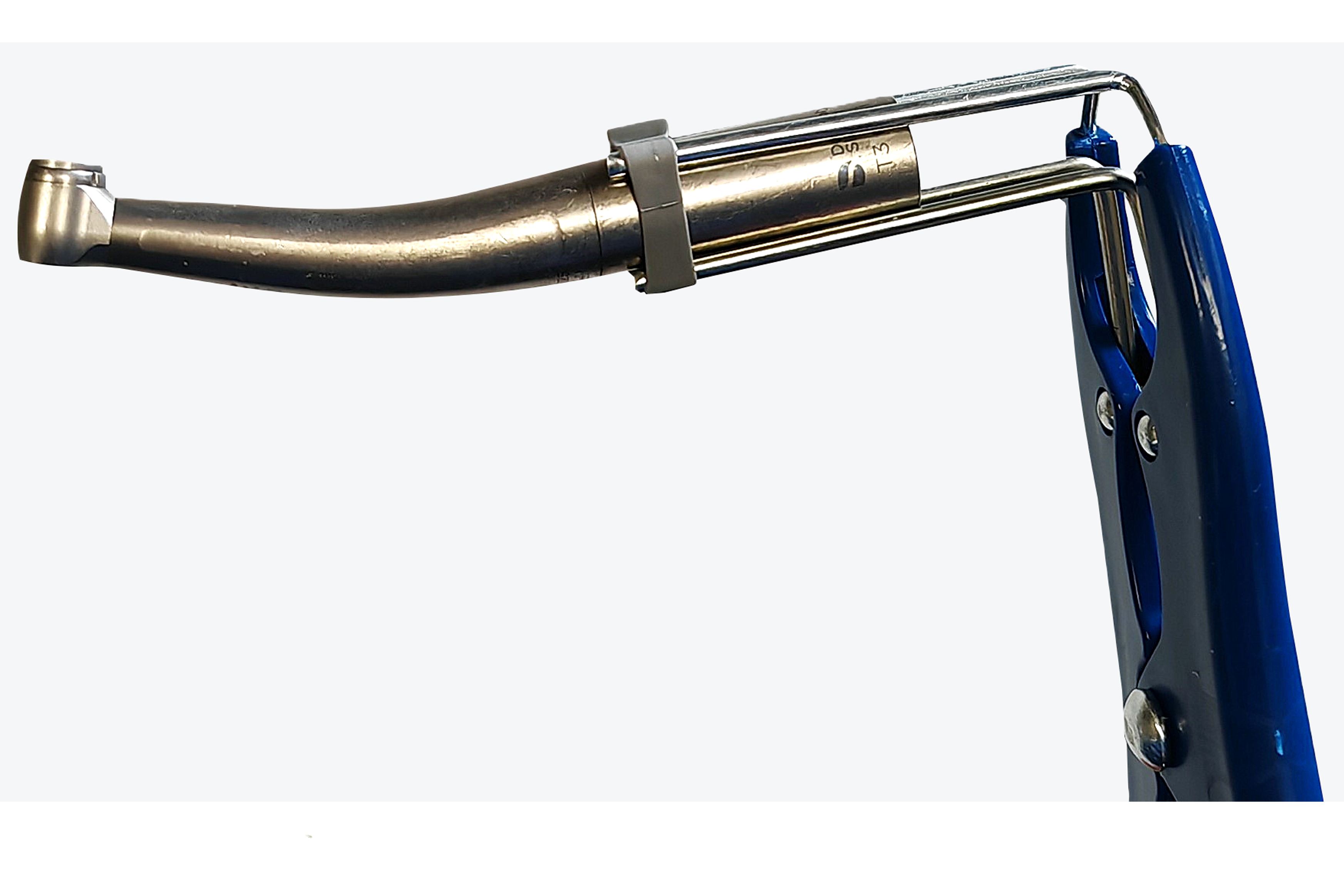

A UHF anti-metal silicone tag specially designed for asset management of cylindrical metal instruments. Made from high-quality silicone material, it offers excellent temperature resistance. The embedded UHF tag enables fast and precise asset identification and tracking. Suitable for managing metal tools, medical equipment, and more.
|
Product Number |
RF-MC6XCP10R6P-6A35 |
|
|

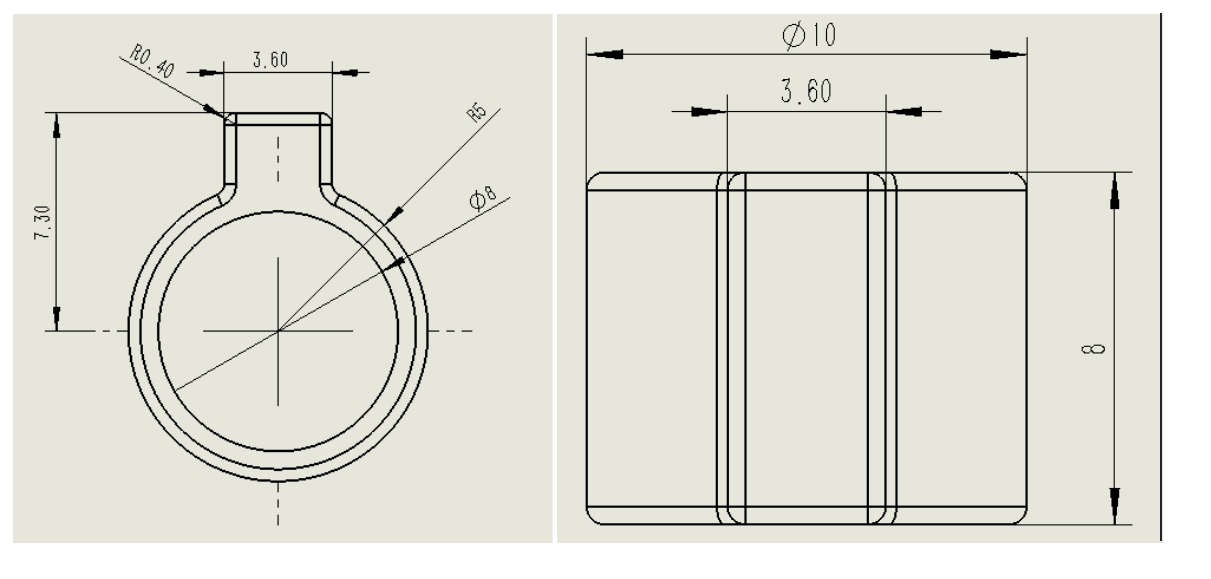

Dimension |
12.3×10×8mm |
|
|
Inner/Outer Diameter |
φ8mm/φ10mm |
|
|
Material |
Silicone |
|
|
Silicone Hardness |
35 Shore A |
|
|
Applicable Outer Diameter |
φ10~φ20mm |
|
|
Frequency |
902~928 MHz |
|
|
Chip |
Monza R6P |
|
|
Protocol |
ISO/IEC 18000-6C |
|
|
Memory |
TID |
96bit |
|
EPC |
96bit |
|
|
User |
64bit |
|
|
Access |
32bit |
|
|
Kill |
32bit |
|
|
Operating Temperature |
-40°C to 100°C |
|
|
Storage Temperature |
-55°C to 100°C |
|
|
Write Cycles |
100,000 times |
|
|
Data Retention |
10 years |
|
|
IP Rate |
IP68 |
|
|
Packaging |
50pcs/bag 1000pcs/box |
|
