Overview

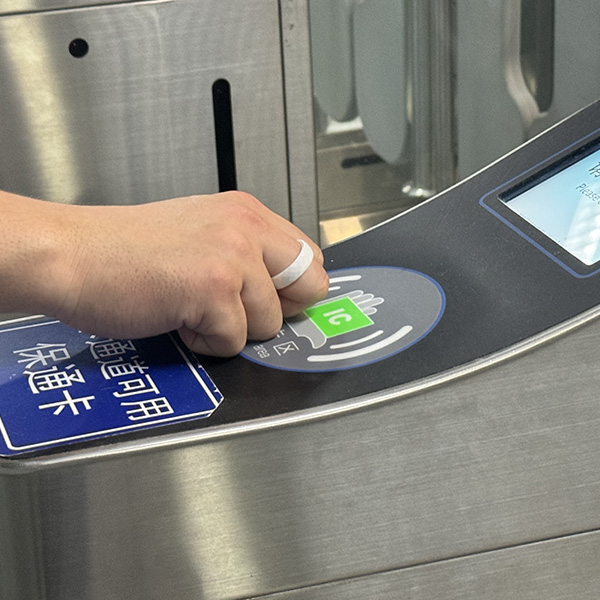

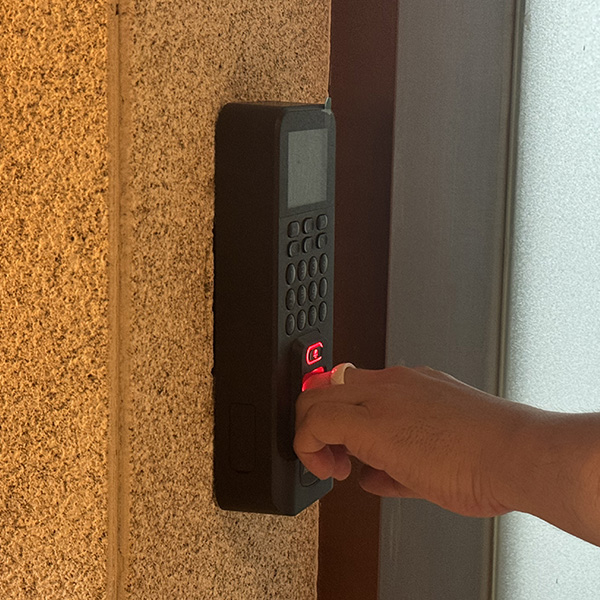

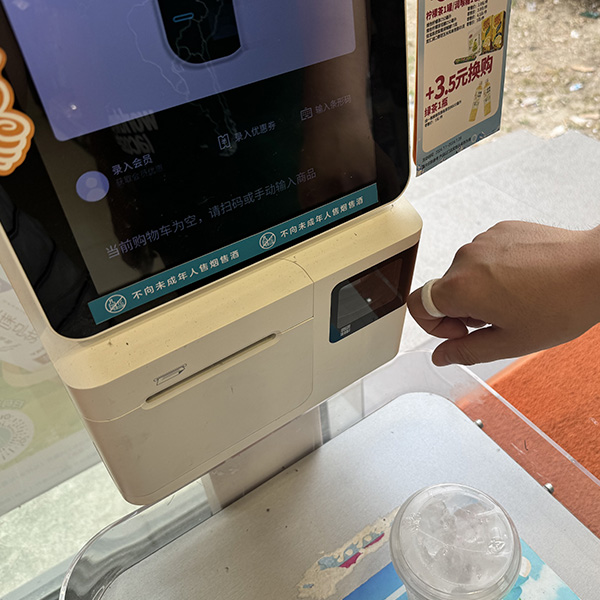

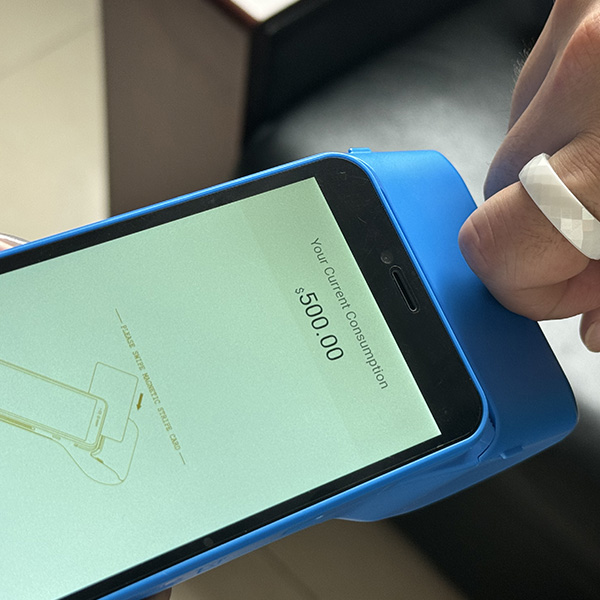

Wearable devices are increasingly entering modern life. NFC Ring integrates fashion, uniqueness, intelligence and NFC functions. With Tap & Go way, it can be used for payment, access control, public transportation, business card sharing, car keys and embrace a smart and convenient lifestyle!

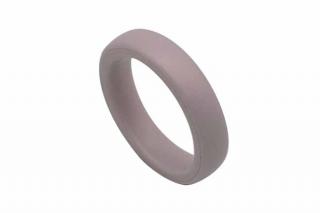

WaveTap Series NFC ceramic ring is made of high-strength ceramic material, which is scratch resistant, lightweight and corrosion-resistant, and comfortable to wear. It has a built-in RFID chip that can realize multiple functions such as mobile payment, identity recognition, access control unlocking and information storage. The 7.2mm width is designed to be moderate, which is both beautiful and suitable for daily wear.

Feature

※ Chip: NTAG 213/215/216, ISO 14443A protocol NFC Chip, Contactless CPU Chip

※ Antenna Size: Customization, according to different models, chips and read & write performance requirements

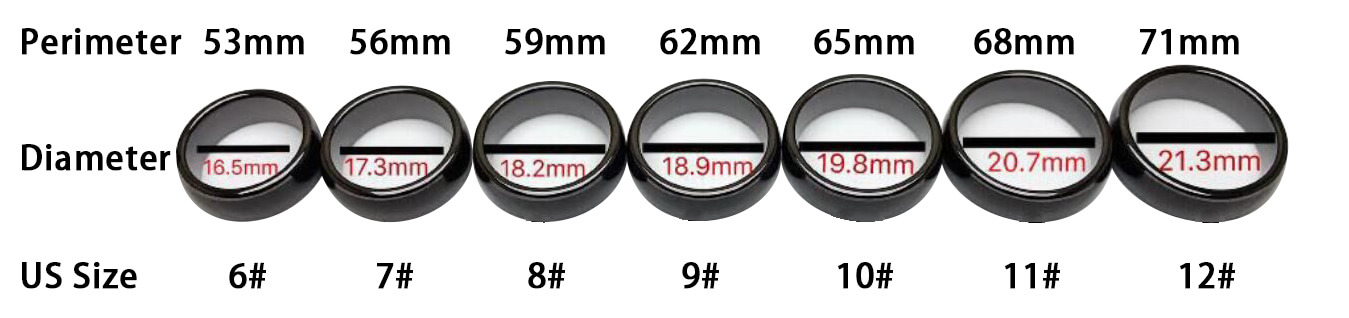

※ Dimensions: Ring Width 7.2mm, inner diameter refer to the following data

※Reading Performance: POS machine 20~25mm, Desktop reader 30~40mm, mobile phone 20~30mm

※ Reading direction: The metal ring has a fixed reading direction, and other materials can be identified in all directions at close range

※ Material: Plastic, Ceramic, Alloy, Silver, Gold (single material optional)

※ IP Rating: IP65~IP68(Different forming processes caused different IP rate)

※ Personalization: Laser engraving, Built-in personalized patterns

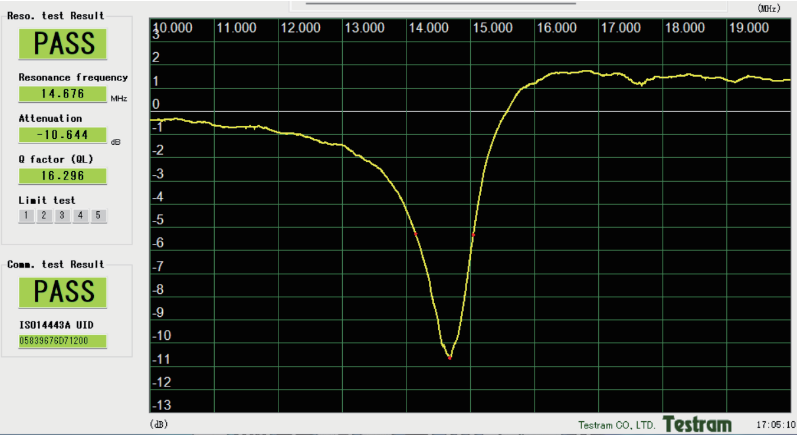

RF Parameter
