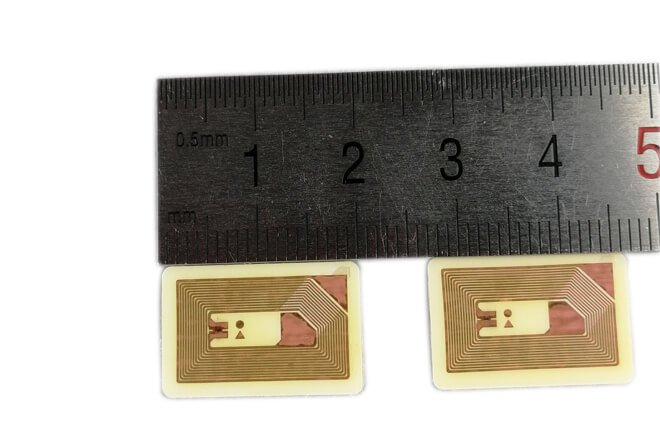

HF Micro Copper Etching Wet Inlay Tag

Antenna Size: 18X11mm(±0.2mm)
Tag Size: 20X13mm(±0.5mm)
Protocol: ISO/ICE 15693
Chip IC: NXP ICODE SLIX(Other compatible chips optional)

REQUEST A QUOTE

Overview

Compare with Aluminum antenna/inlay, copper wire antenna made Inlay & Tag has better performance on RFID Reading/Encoding.

Especially to those small tags like NFC which requires good R/W distance and Q-value, copper wire Inlay plays key roles in RFID industry.

Antenna and inlay manufactured under world-class and eco-friendly facility. Multi-process likes silver coating are available!

HF NFC Micro Copper Etching D13MM Label

What can we do?

  • HF and UHF copper antenna custom design and production

  • Copper antenna inlay and tag custom make.

  • Single side Cu laminate, PET film, plus silver bridge for HF requirement, OSP optional, L/S= min. 75um, Roll to Roll production

HF NFC Micro Copper Etching D13MM Label

How to order your own copper wire antenna for inlay/tag manufacture

1. If the antenna design available

  • Send us antenna design drawing and web layout, according to different RFID chip
  • RealSmart Tech helps you design and antenna according to requirements
  • NRE for samples make
  • Buyer qualifies the samples
  • Buyer placer order for QA lot production
  • Mass production

2. If you need assistance on antenna design

  • Send us antenna, inlay and tag all dimensions and requirements
  • RealSmart Tech helps you design and antenna accordingly
  • NRE for samples make
  • Buyer qualifies the samples
  • Buyer placer order for QA lot production
  • Mass production

Specification

Dimensions

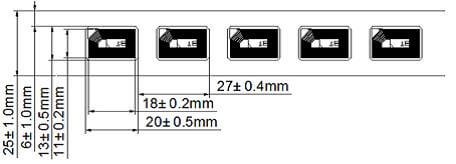

Antenna Size18 X11mm (±0.2mm)
Tag Size20X13mm(±0.5mm)
Product Skip Distance27.0±0.4 mm
Product Margin6.0±1.0 mm
Width of the Tape25.0±1 .0 mm

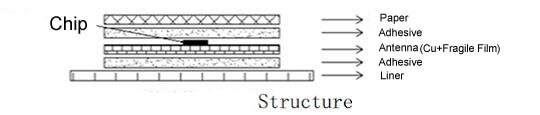

Product Features

Substrate MaterialPolyester Film（PET ）
Antenna MaterialCu Etching
Surface MaterialPET
Appearaence CharacteristicsCopper Label, Wet Inlay
Product CharacteristicsTransparent
Operating Frequency13.0-14.5MHZ
ProtocolISO/IEC 15693
Chip ICNXP ICODE SLIX( Other compatible chips optional)
Memory Capacity1024 bit
Operating ModeRead or Write
Read and write range≥1.0CM（Fixed Reader device）
Programming Cycle100,000 cycles
Personalized CodingSupporting multiple data structure of inside and outside combinatorial encoding（can be synchronous and offline encoding）；Supporting personalized key code

Environmental Parameter

Operating Temperature-25℃～75℃
Storage Temperature0℃～25℃

Packing Details

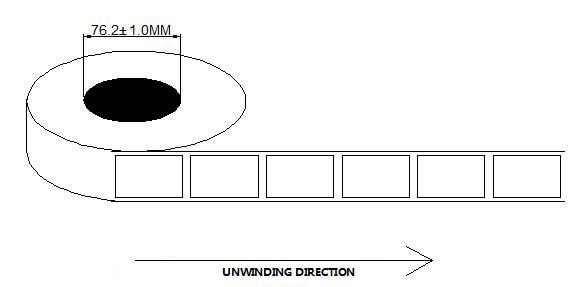

Core Diameter76.2mm(3inch)
Volume Number3000～5000PCS(According to actual demand)
The Roll DirectionThe Surface or Printing Facing out or up
（According to actual demand）
Packing MaterialAnti-static PE + Foam stuff + Anti-static Bag

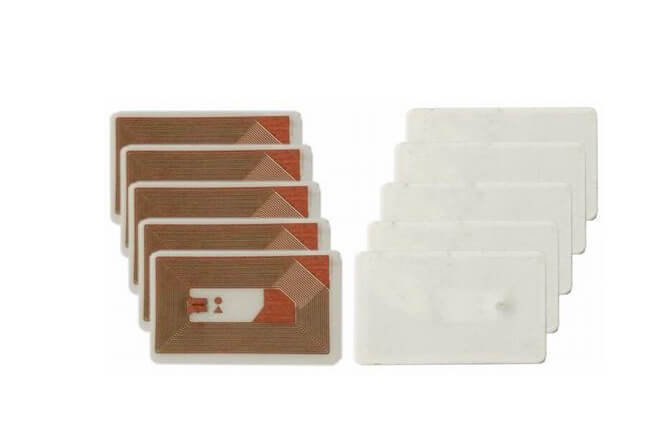

Reference Pictures

Support

Inlay/Tag outsource manufacture.

  • Once antenna ready, if you want to get inlay/tag produced by one pass. Happy to do it for you!
  • Abundant IOT will generate more demands on various RFID tags including high performance NFC etc applications. As same, all inlays/tags will be manufactured in first-class equipped facilities. Secure your lead time and quality!



HF NFC Micro Copper Etching D13MM Label
HF NFC Micro Copper Etching D13MM Label
HF NFC Micro Copper Etching D13MM Label

Support

  • Chip of HF 13.56MHz ISO14443A,B, ISO15693, NFC, Felica etc
  • Chip of UHF: ISO18000-6C, EPC C1G2 etc from Impinj, Alien etc.
  • Copper Wire Antenna and Aluminum Antenna
  • Various Dry Inlays, Wet Inlays, Labels as custom made.

Capacity

  • Dry Inlay: 50M/month
  • Wet Inlay: 55M/month
  • Label: 50M/month



Heretable is machines list of 2017. Now more are in procurement process. You are so welcome to visit and witness by yourself!

For most RFID Inlays and Tags are customized as project. We’re able to provide turn-key-solutions from antenna design, inlay manufacture and tag converting make.

What’san ideal RFID Antenna/Inlay/Tag design and manufacturer partner you are looking for?

Stillheadache to find reliable copper wire antenna and inlay provider?
