Description
Overview
How to test HF Tag’s performanc in one step for Frequency, Q value, Response Bandwidth, RF Protocol,Chip UID,Specturm Curve in one device in simple way?

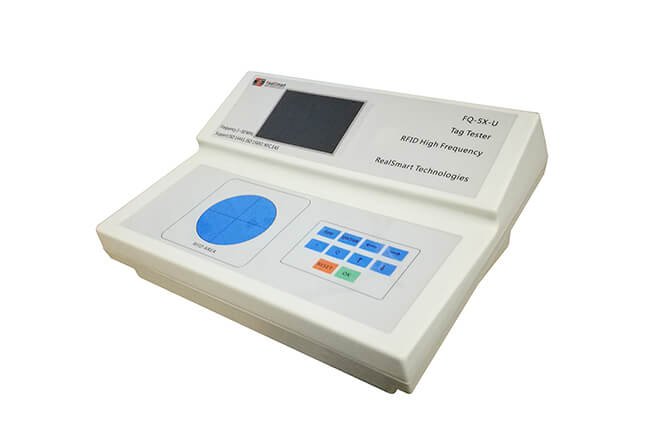

YES! FQ-5X-U is right portable solution to do it!
It supports 13.56MHz (14443 A/ B, 15693 and NFC) also 8.2MHz for EAS label etc resonant components! Ideal to test various items of RFID inlay / transponder, tag/label and cards

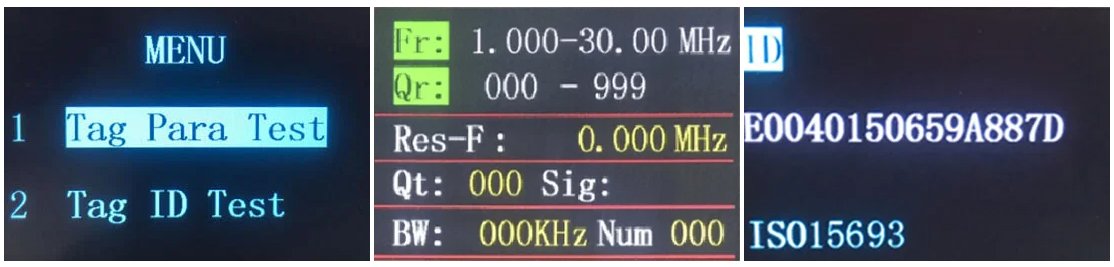

Put test-item on device, all data comes automatically! Resonance Frequency, Q Value, Response Bandwidth, RF Protocol, Chip UID, Spectrum Curve displays on screen immediately!
Another great function, can tell pre-set Frequency and Q value in range or not, make QC sorting job easier! All test data can be input to PC via optional USB port and software.
For RFID inlay/card/tag manufacturer, it’s big help for RD and QC job. For system integrator, card/tag issuer, end user or agency, can test & verify consistency!
Amazing tools for any RFID players, especially to production and QC people for consistence analysis! Believe it’s a wonderful & essential testing tools for RFID industry?
Specification
| RFID Frequency and Protocol | 13.56 MHz: 14443 A,B and ISO 15693; 8.2 MHz; EAS label | ||
| Frequency Test Range | 1-30MHz DDS digital synthesis signal | Q Value Test Range | 0–999 |
| Frequency Pre-Set Range | 1–30MHz | Q Value Set Range | 0–999 |
| Frequency Testing Tolerance | 1 × 10-3 ± 5 character | Q Value Test Tolerance | ≤ 7% |
| Power Supply | 110V-240V±10%, 50-60Hz | Consumption | 10W |
| Outline Dimension | 240*180*100mm (L*W*H) | Net Weight | 1.4 KG |
| Bandwidth and Counting | Yes | Spectrum Curve Display | Yes |
| Resonance Frequency Capture | Auto Scan | Displayer | 3.2 ‘TFT LCD |
| Min. Testing Tag Dimension | Diameter 8mm | ||
| LCD Display Item | Resonance Frequency, Q Value, Effective Bandwidth, Spectrum Curve,RF Protocol, Chip UID. | ||
| Optional Function | FQ-5X-U with USB port and specific PC software, which can be used for data upload, remote monitor, data records etc. | ||
