Description

Overview

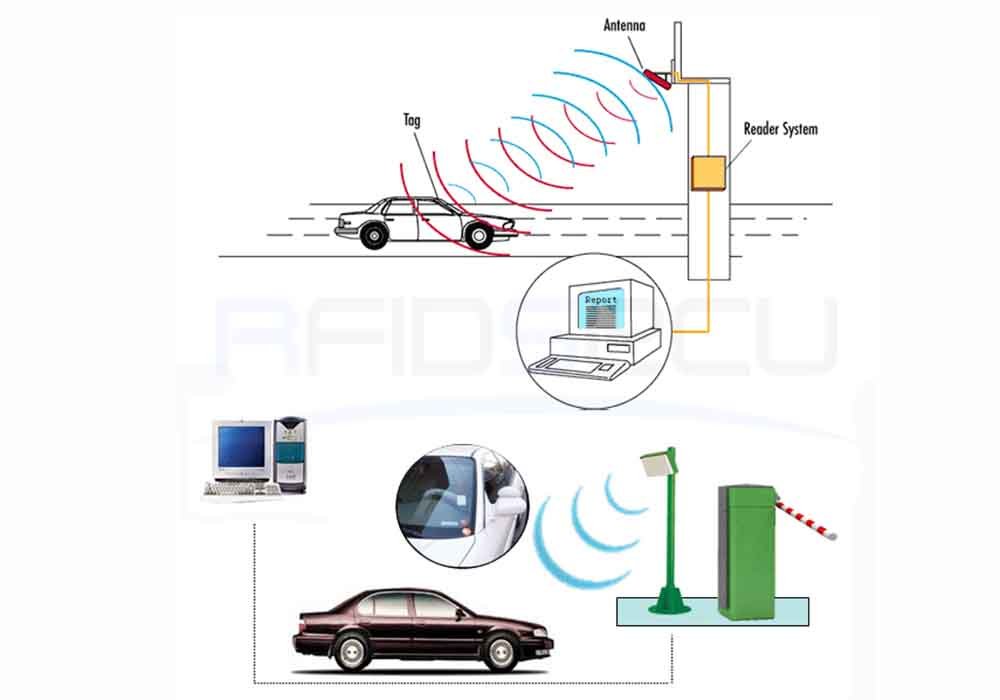

Parking technology has finally caught up to our on-the-go culture: pay without paying attention. Researchers have built a device that does for parking lots what radio transponders do for highway tolls. You park, it keeps track. The near field communications (NFC) system, consists of RFID Windshield Tag, parking lot transceivers that read tags, and a central database. The windshield tag signals the parking transceiver as you’re entering and exiting a parking lot. A central database tallies your time in the lot and debits your account accordingly.

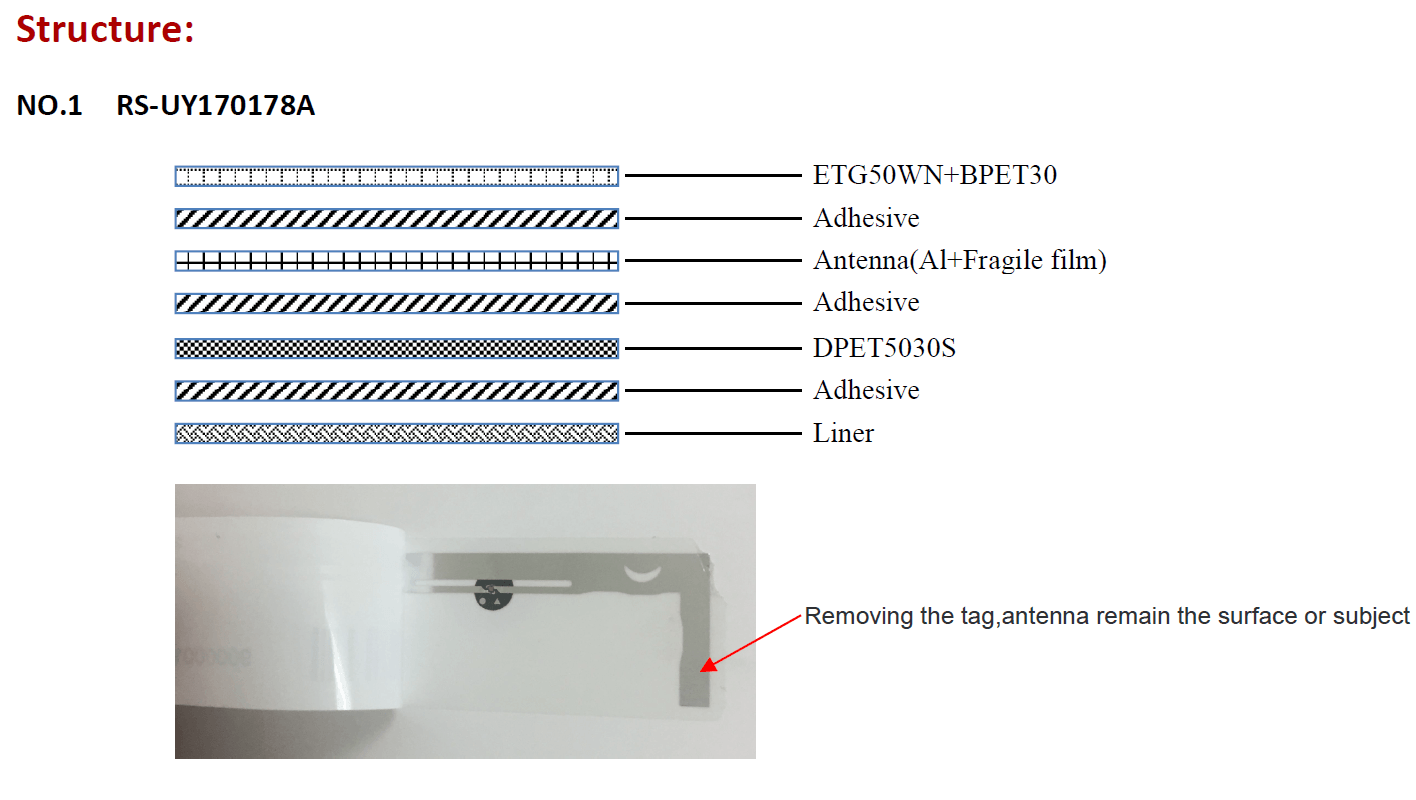

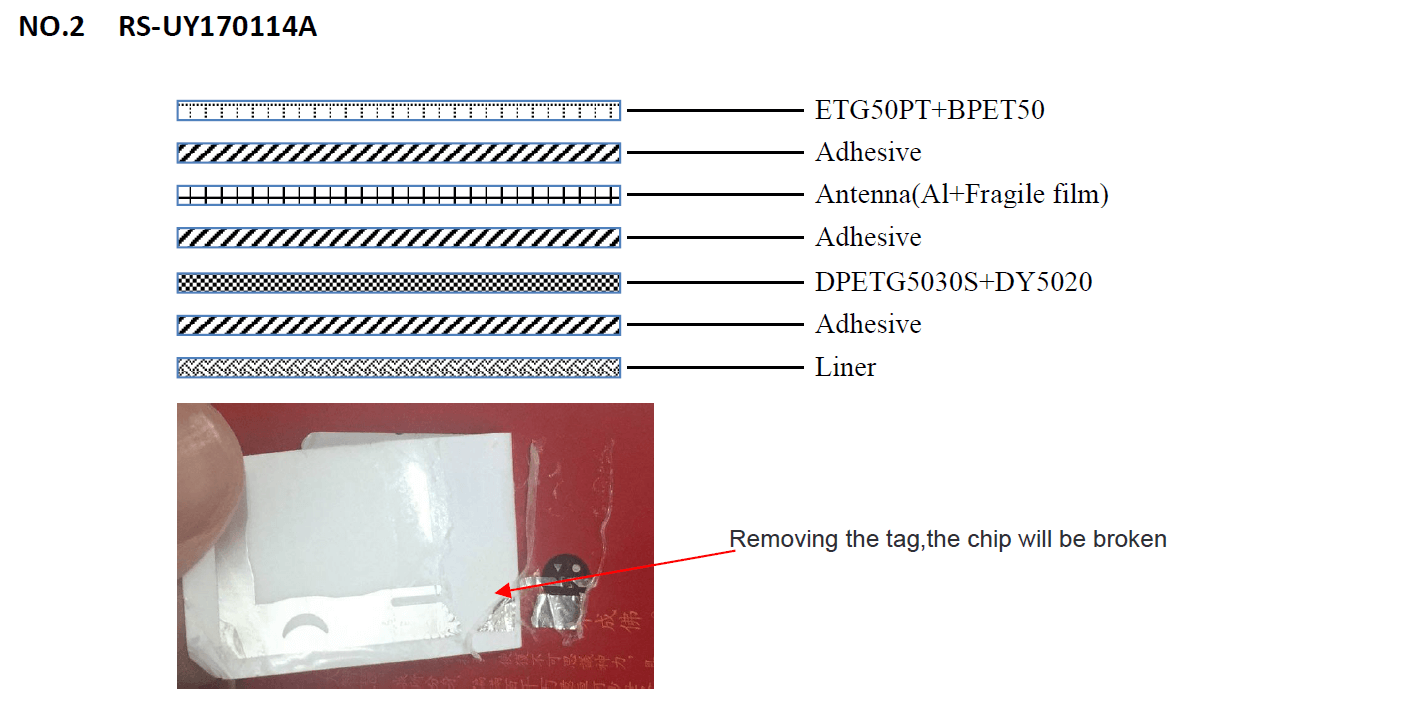

Self destructive Ceramic tag uses composite ceramic substrate, which has high temperature resistance, stable performance, and when combining with the automobile glass can obtain excellent read performance. Once the tag is removed from the vehicle windshield, the tag fails, immediately stop using, so it can prevent illegal demolition of tag.

Who Needs?

Traffic management

logistics management

vehicle traffic guide

automatic parking lot

Parameter

Physical

Material	PET

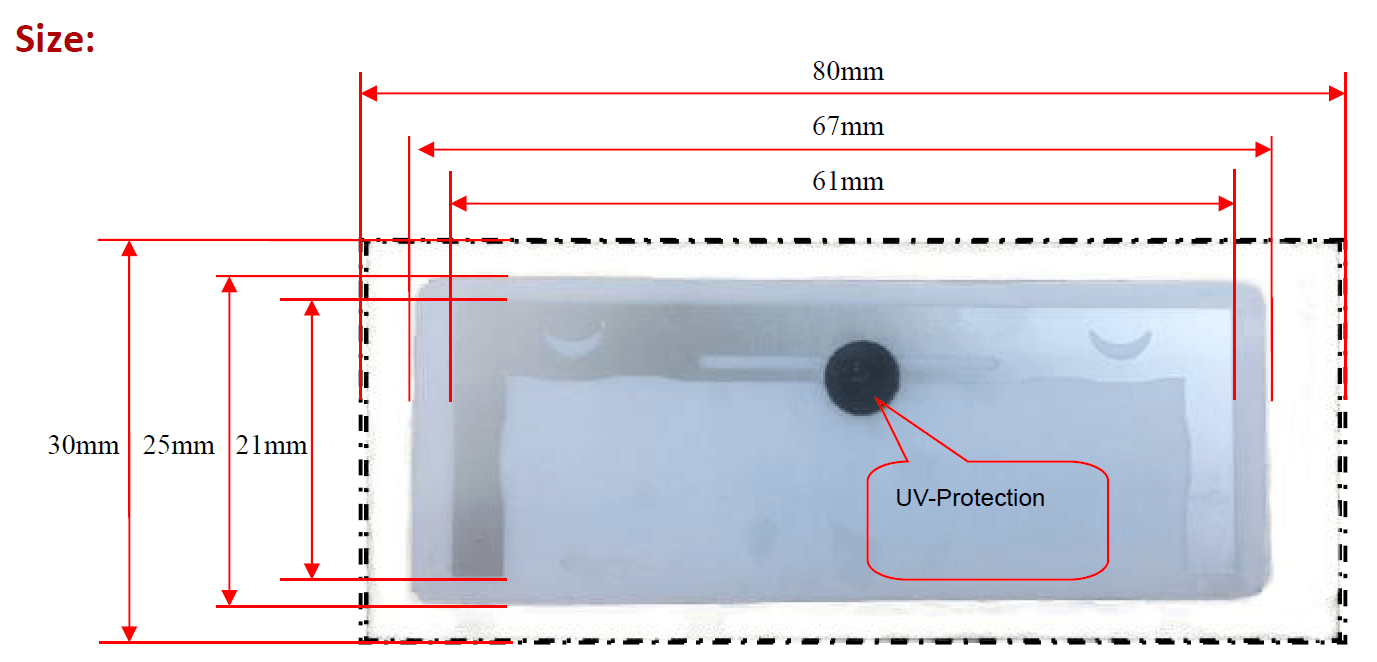

Dimension	L67W25T≤0.25mm(Thickness ≤0.38mm on chip location)
Antenna	Aluminum etching
Protocol	ISO18000-6C & EPC Global Class Gen 2
Reading Distance	1m(Reader and Environment Dependent)

Feature

Frequency	902~928MHZ(US)
RFID Chip	Higgs 3
Memory	EPC 96 bits, User 512 bits, TID 64 bits
Write Endurance	100,000 cycles
Data Retention	10 years
Reading Distance	5m(1w fixed reader 6dB Antenna)
Product Attribute	Disposable, Prevent Heat Transfer
Reading Distance	1m(Reader and Environment Dependent)
