Description
Communication performance evaluation
communicates the UHF tag by seitching power in the frequency range from 800MHz to 1000MHz and evaluates its communication performance of the UHF tag with plots.
Morover, the strength of response level from the tag can be visually verified by indicationg in awaveform.
Inspection for mass production

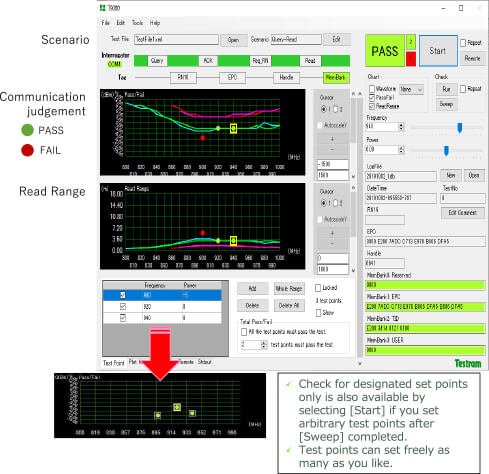

A100% inspection using a mass production equipment can be proformed by judging PASS/FAIL via arbitrary test points after set several test points.
Optional DIO makes you to control T9000 from PLC on the automatic machine side.
Easy operation
Easy to test from the dedicated software. No need to complicated settings.
Main unit, software, and antenna are included-all in one package, readily available!
UHF band tags have been rapidly diffused, but the tag cost itself is cheap. Thus, introducting an expensive tester for UHF tags in difficult.
Therefore, Testram aimed to provide UHF tag tests at low-cost.
Testram supports UHF tag tests with this easy-to-use tester. No need to set some complicated test processes.

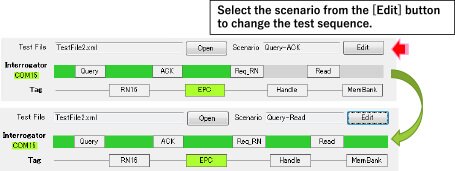

Settings can be freely changed in accordance with the test sequence from Query response to EPC/TTD read at scenario settings.
You can change the scenario by clicking a mouse only. No disturbing complicated settings required.

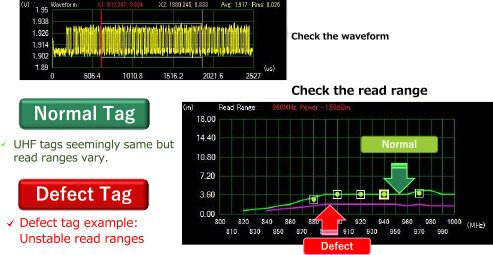

Unable to identify by communication test via the reader/writer.
Enable to identify from the waveform and the read range.
| Item | Product |

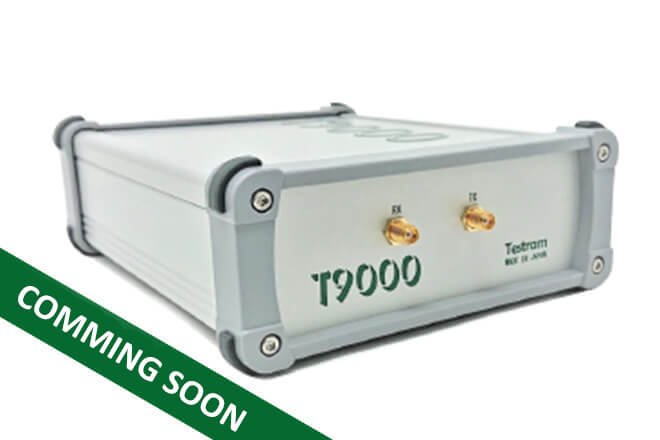

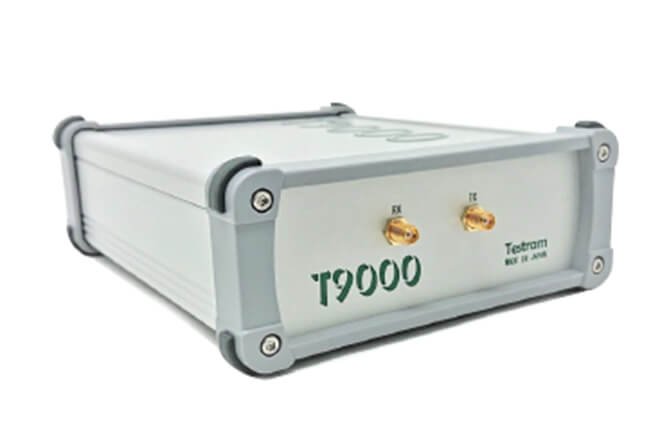

| Main Unit | T9000 Main Unit |
| Sorfware | Installation CD |
| Measuring Antenna | TX antenna, RX antenna |
| Accessories | SMA cable(2 pcs.), USB cable, HUF-RFID radio wave absorbent panel |
※The design and specifications are subject to change without prior notice.
| Item | Description |
| Communication Prodocols | EPC Class1 Gen2 |
| Modulations | Interrogator.100% ASK, Tag:FM0 |
| Test Items | Communication PASS/FAIL |
| Setting Items | Scenario, Career frequency, Transmit power, Transmit power, Transmit and receive rate |
| Frequency Range | 800MHz~1000MHz(1MHz step) |
| Transmit Power(@50Ω loaded) | -15~+15dBm(0.25dBm step) |
| Test Time | At EPC reading test 1 point / 100msec below*) |
| Logs | Test time, PASS/FAIL, Received data |
| Power Supply | USB bus powered |
*Test time depends on the PC used, settings of the equipment and characteristics of the divice under test.
DIO option
Wooden adjuster(in preparation)
4-panel UHF-RFID radio wave absorbent material box
Anechoic box
Made by MICRONIX Corp.
Model No.:MY1520+MYA77
