Description

Overview

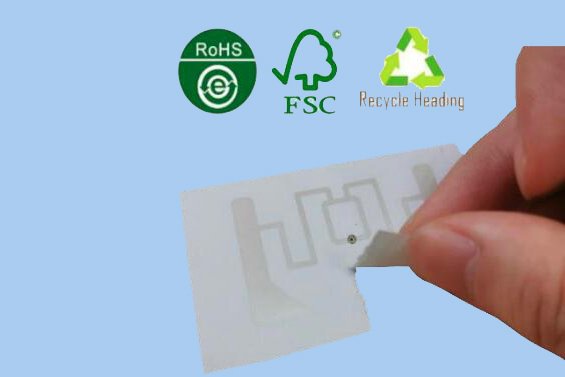

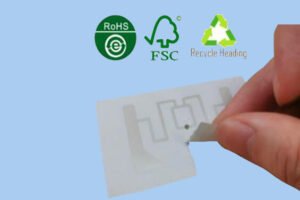

Thanks to advanced biodegradable RFID antenna technology, the use of pure paper to replace plastic antenna substrates such as PET has the advantages of 100% green, renewable, high reliability, and high price. The RFID antenna is printed on the surface of the paper using the conductive paste of nano silver-coated copper technology, which has the advantages of good bending resistance, high conductivity, high chemical stability, and resistance to oxidation.

Support diversified RFID product forms, suitable for cards, tickets, tags, tags, etc. It is widely used in personnel management, asset management, anti-counterfeiting traceability, cold chain transportation, library smart management, shoes and clothing, logistics and other scenarios. Empowers carbon peaks, carbon neutrality and green earth.

Feature

※ 100% green and environmental protection. No plastic, no pollution, recyclable
※ Simple production process. Support rapid production and large energy advantages
※ Good fragility. Paper-based antenna, supporting applications such as anti-counterfeiting RFID
※ High performance price. Compared with the cost of aluminum etching RFID antenna
※ Various product forms. HF, UHF Inlay, cards, labels, etc.
※ Ability to professional design, customized service, fast proofing and delivery

Base material	Coated paper / fragile paper / kraft paper / thermal paper
RFID chip	HF/NFC ISO14443	NXP Mifare Series, ICode Series, Ntag Series, ST25TA Series etc.
	HF/NFC ISO15693	NXP Icode Series, ST25TB Series etc.
	UHF ISO18000-6C	NXP UCode Series, Impinj Monza Series, Alien Higgs Series, Kiloway Series etc.
Frequency	HF 13.56MHz, UHF 860~940MHz
Antenna & Inlay	Size and performance can be customized and designed on behalf of customers, or according to customer specifications
Operating temperature	-5℃~60℃/20%~80%RH
Storage temperature	Storage temperature

Application & Form

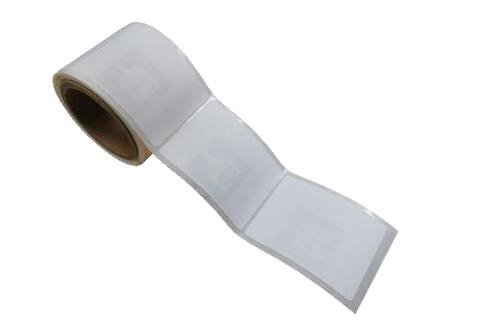

RFID Inlay

※ Shipment form: roll material, large sheet

※ Inlay specifications

Coil size: 275mm (maximum width)

Large sheet size: 500×275mm (maximum size)

Optional thickness: 0.07~0.12mm

※ Personalized service

Chip encoding: initialization, personalization

Reprocessing: compounding, printing

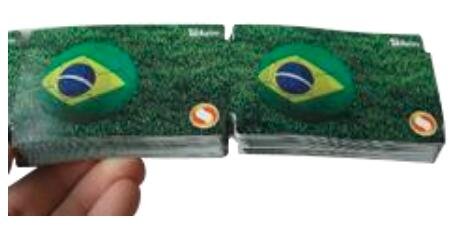

RFID paper card/voucher

※ Shipment form: single sheet, continuous ticket

※ Material options: coated paper, thermal paper

※ Paper card specifications: 86×54mm; thickness 0.2~0.7mm

※ Personalized service

Pattern printing: double-sided offset printing or digital printing

Data printing: variable data printing, laser coding

Chip coding: initialization, personalization

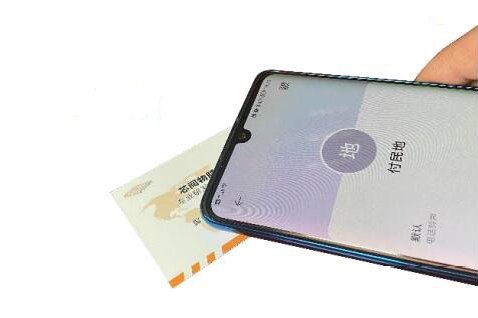

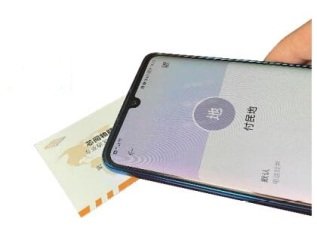

NFC Business Card

※ Shipment form: single sheet, large sheet

※ Material options: coated paper, pearl paper

※ Dimensions: 86×54mm (can be customized as required); 297×210mm (large sheet)

※ Personalized service

Pattern printing: double-sided offset printing or digital printing

NFC chip writing code: initialization, personalization such as NDEF data

NFC coding software: available

RFID paper label

※ Shipment form: roll material, single sheet

※ Material options: coated paper, thermal paper

※ Label specifications: customizable, design on behalf of (maximum width 275mm)

※ Personalized service

Pattern printing: flexo or digital printing

Data printing: variable data coding

Chip coding: initialization, personalization

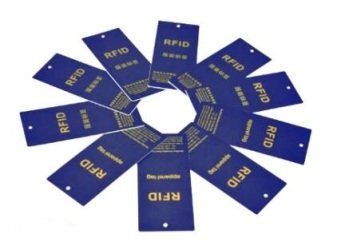

RFID paper hang tag

※ Shipment form: single sheet

※ Material options: coated paper, offset paper, thermal paper, kraft paper

Hang tag specifications: customizable and design (maximum width 275mm)

※ Personalized service

Pattern printing: double-sided offset printing or digital printing

Data printing: variable barcode, two-dimensional code printing

Chip encoding: initialization, personalization

RFID smart packaging

※ Shipping form: single sheet

※ Material options: coated paper, offset paper, kraft paper ➢ Sheet size: 500×275mm (maximum size)

※ Personalized service

Pattern printing: offset printing or digital printing

Data printing: variable barcode, two-dimensional code printing

Chip coding: initialization, personalization
