Mini UHF On-Metal Tag

Product: Mini UHF On-metal Tag Conqueror Series
Dimension: 2*5.8*1.7mm, 3*10*3.5mm
RF Protocol: EPC Class 1 Gen 2, ISO 18000-6C
Key Application: On-metal, Asset Sticker Applications
MOQ: 100PCS

REQUEST A QUOTE

Description

Overview

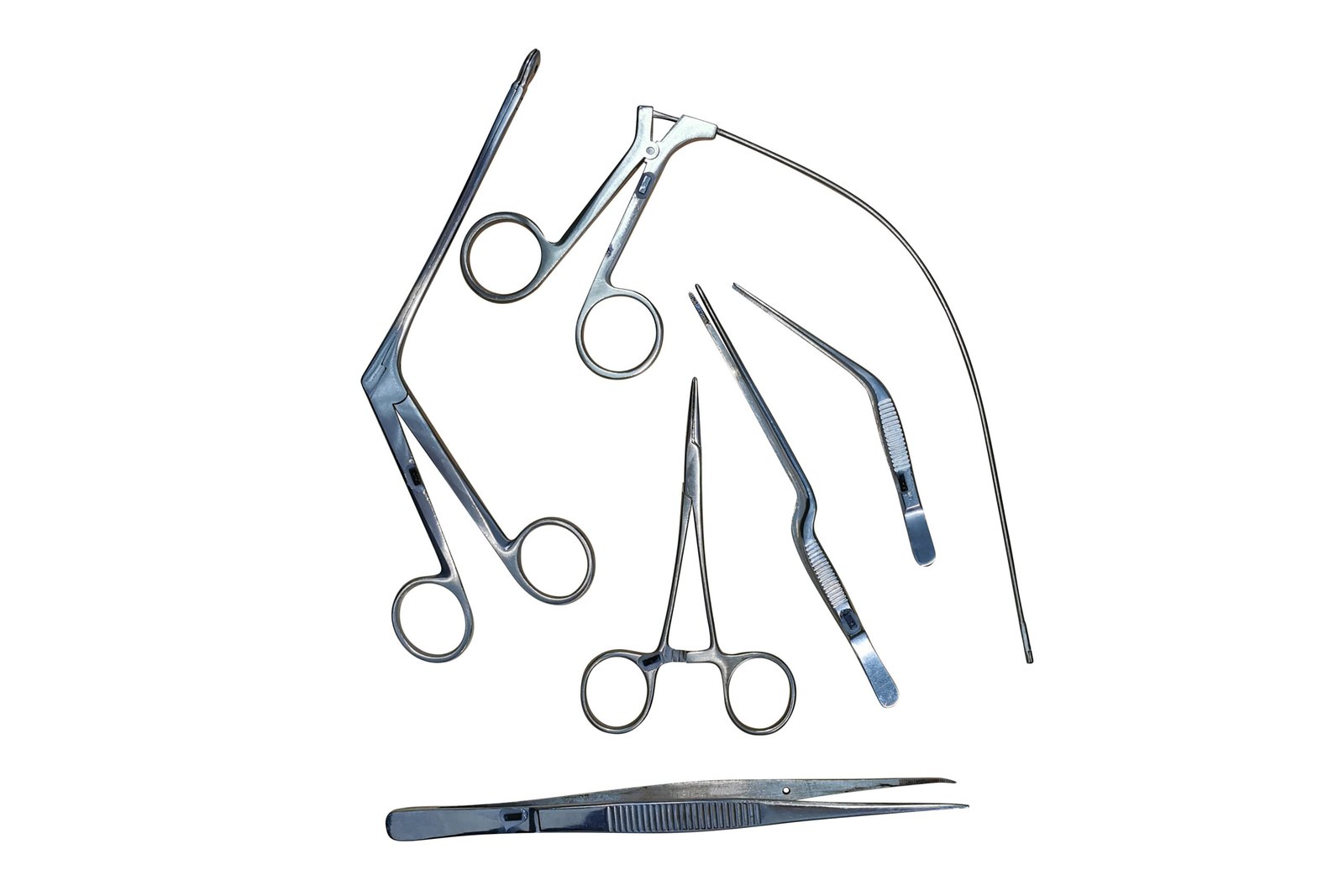

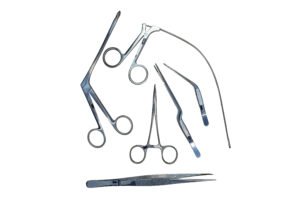

Mini UHF On-metal tag Conqueror Series come for RFID applications of metal objects such as tools, instruments, and instruments!

Industrial-grade special labels have outstanding characteristics such as metal resistance, high temperature resistance, corrosion resistance, and high waterproof level (IP67)!

Whether it is attached to a metal surface or embedded in it, it can be efficiently read, group read or even read over and over, enabling a new level of RFID application!

Feature

※ Build-in Antenna: Direct reading

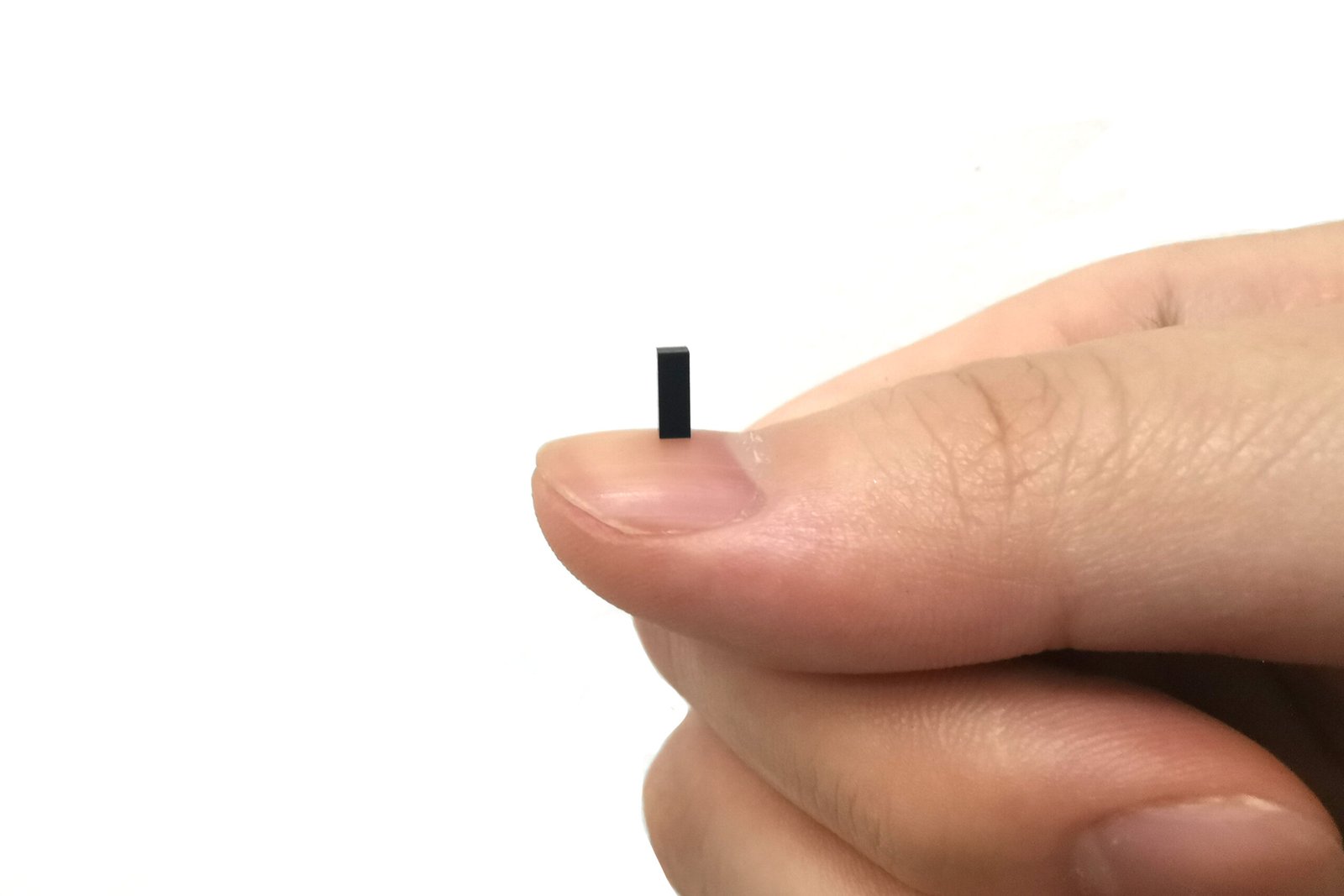

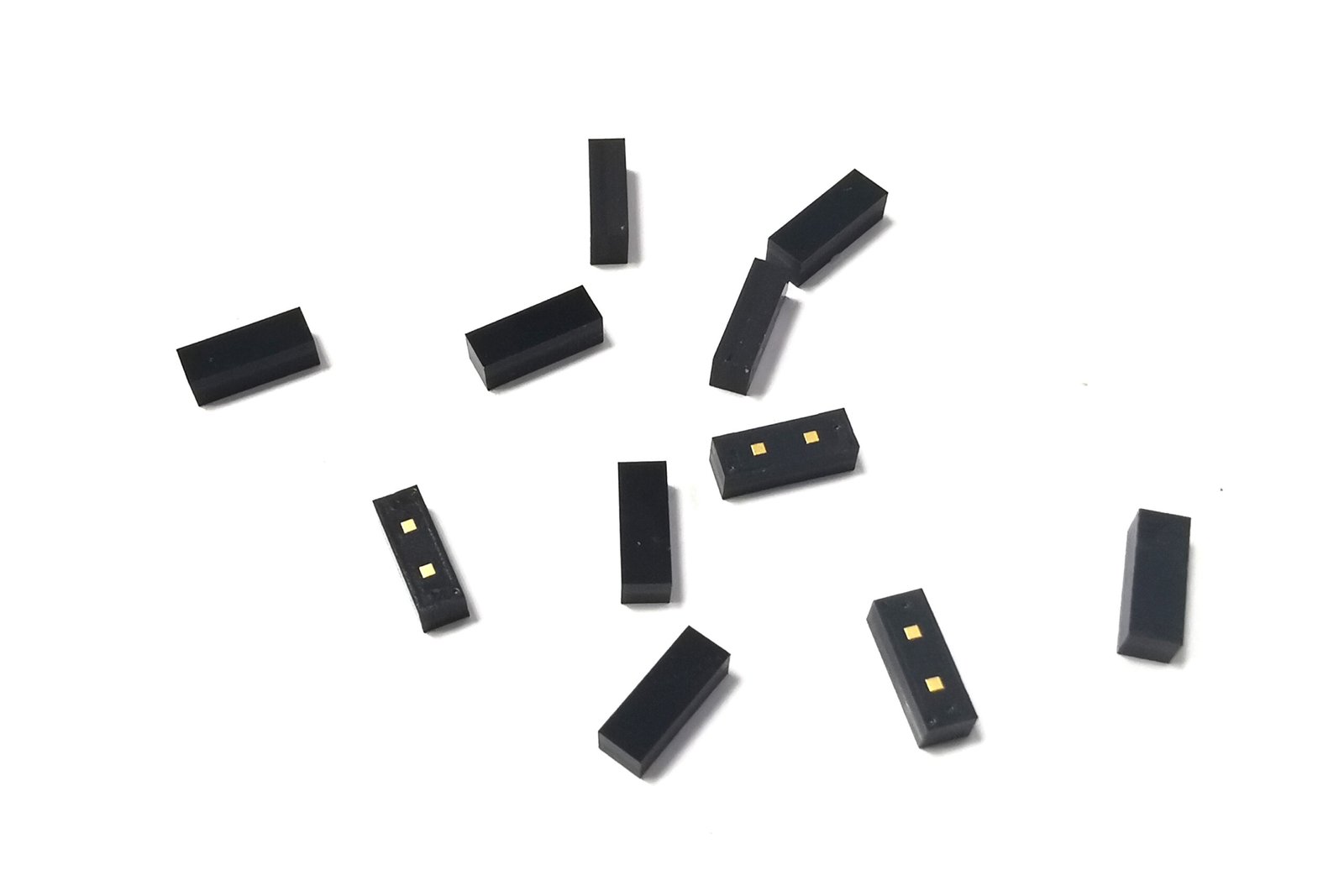

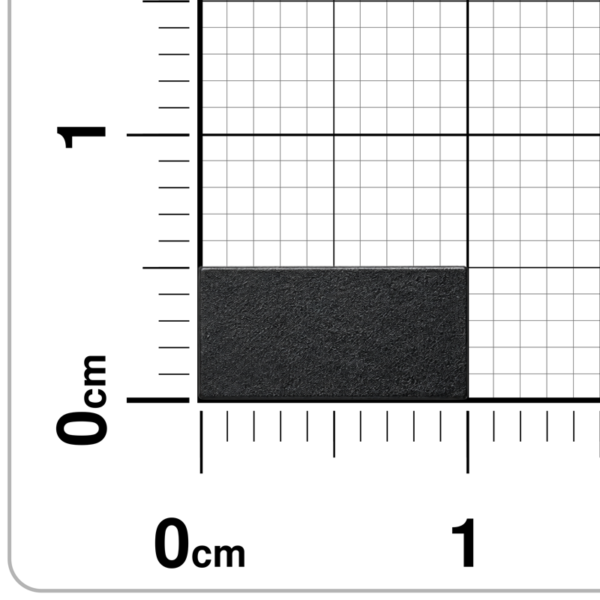

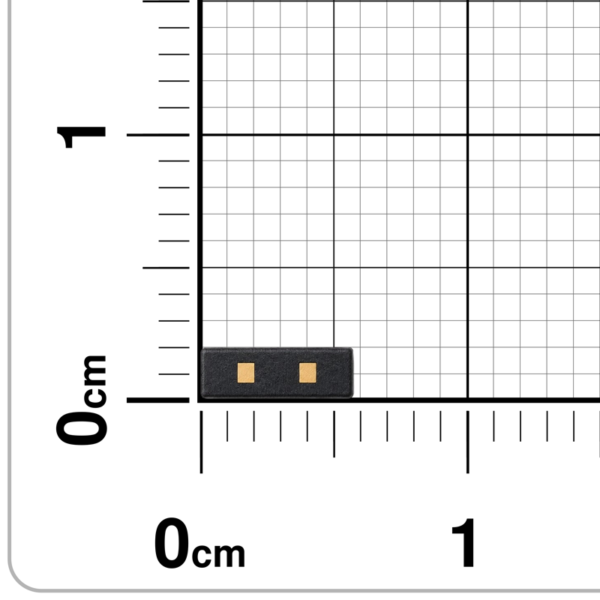

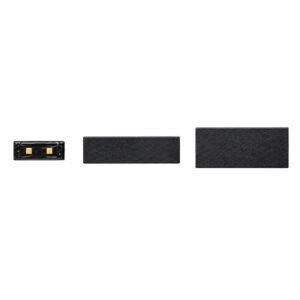

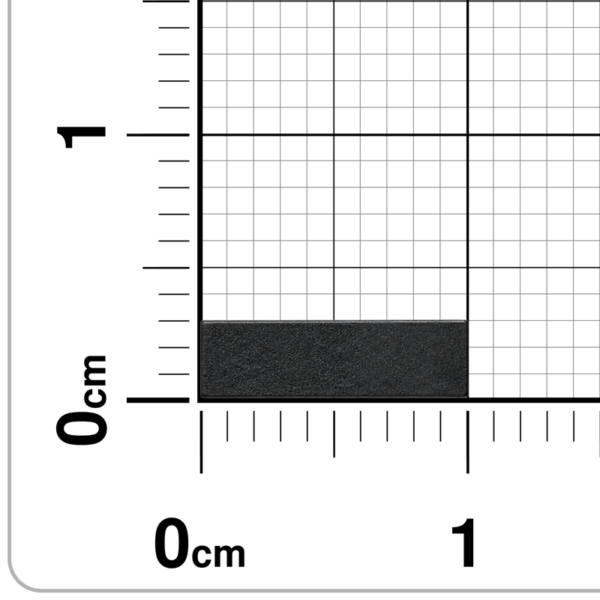

※ Dimension: 2×5.8×1.7 mm,3×10×3.5mm
※ Chip: Impinj Monza R6P, NXP UCODE 9
※ Protocol: ISO18000-6B/C
※ Wide Frequency Range: 860~940M meets variable RFID/IOT applications
※ Installation Way：Attached to metal surface(glue), implant inside(slotting + glue)
※ Outstanding Performance:
Reference as implanting inside metal surface
40-10cm（depend on slotting depth）
※ Temperature Resistance：
-196 °C/ >2000h, 125°C/ 1000h, 260 °C/5min
-40 ° C ~+ 85 °C Working Temperature
※ Waterproofing Grade：IP67
※ Multi application scenarios

Application



FAQ

  • Physical Feature

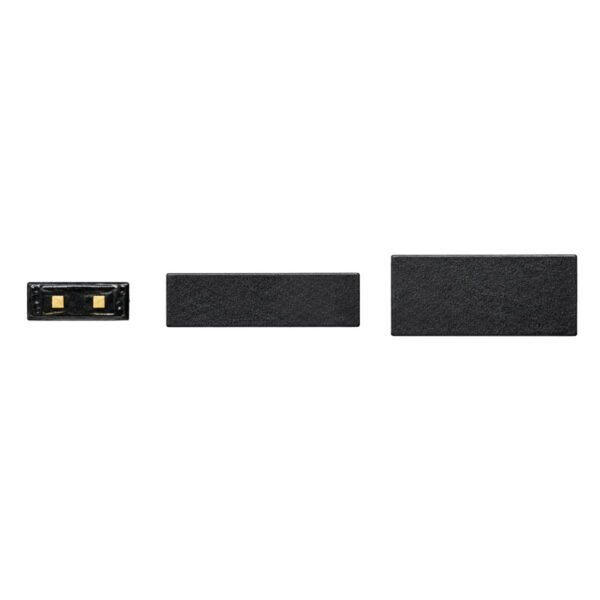

    Q: Is there any difference between the front and back of Conqueror series?

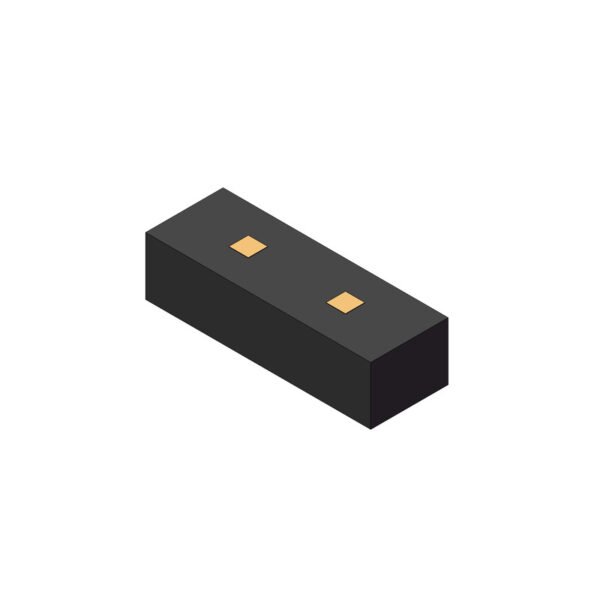

    A: There are positive and negative differences. The gold mark point should face the metal surface.

    Q: What chips can Conqueror series be used?
    A: ISO18000-6C-protocol chips can be used.

    Q: Is the tag high temperature resistant?
    A: -196℃/>2000h, 125℃/>1000h, 260℃/5min.

    Q: How long can data be retained on tags?
    A: According to the chip, it has been available for 10 years, 20 years and 50 years.

    Q: Is the label waterproof?
    A: Protection grade IP68.

    Q: What materials are used in the tag?
    A: Epoxy resin and fiberboard.

    Q: In what form is the product shipped?

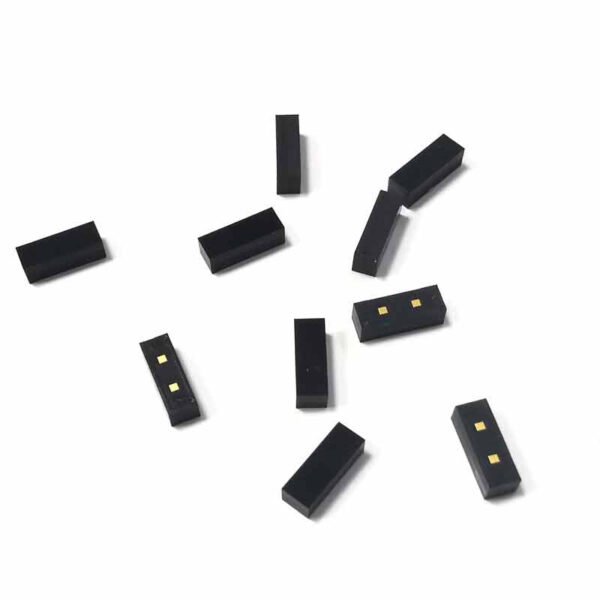

    A: Three ways: scattering, braiding and UV film.

    Q: Does the tag carry adhesive when shipping?
    A: Without adhesive.

    Q: Can the tag be sterilized?
    A: High temperature sterilization or ultraviolet sterilization can be performed.

  • Application

    Q: Can Conqueror series be embedded in metal?
    A: The 5.8*2*1.7 model can be embedded into metal, while the 10*3*3.5 model cannot, and the performance will be reduced.

    Q: Can Conqueror series be put in metal boxes?
    A: It can be put into a metal box with an open top, and the performance will change according to the size of the opening. The larger the opening, the better the performance.

    Q: Can Conqueror series be used on nonmetallic substances?
    A: This series is developed for metal Media. It can be read on non-metal media and recognized in short distance, but its performance cannot reach the best.

  • Performance

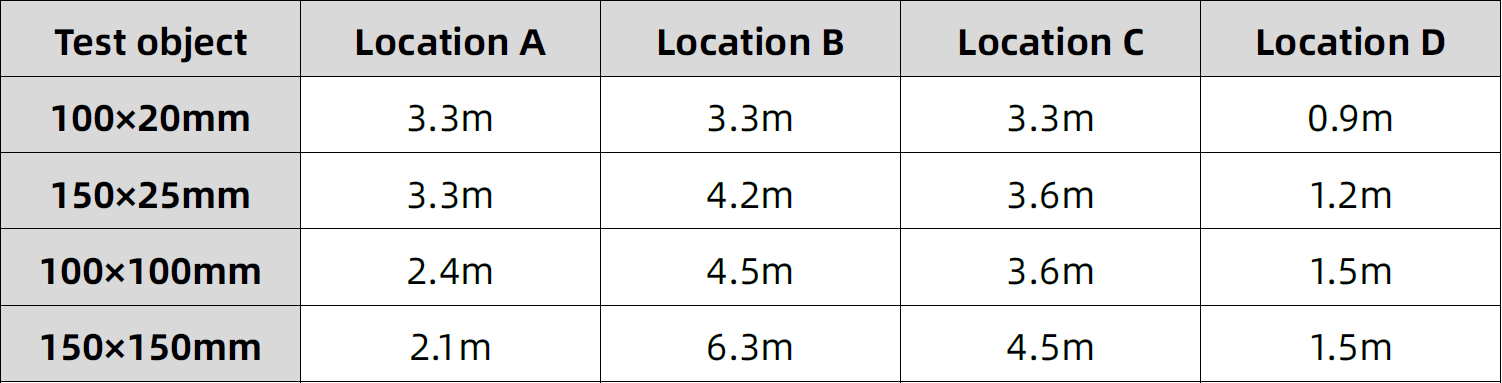

    Q: How far is the read distance?

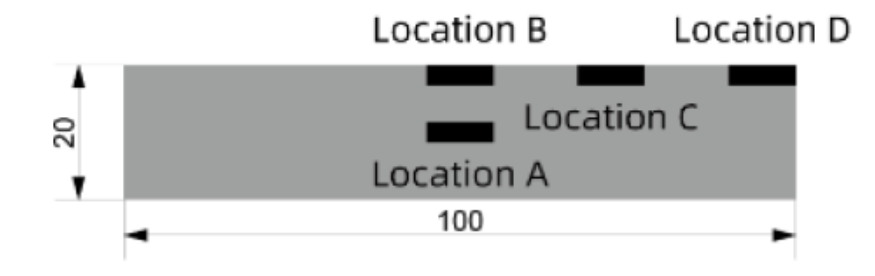

    A: The reading distance varies from 1m to 6m according to the shape of metal medium and the position of label placement.

  • Other

    Q: What’s the MOQ of this tag?
    A: The MOQ is 10K.

    Q: How long is the general delivery date?
    A: the general delivery time is 2 weeks.

    Q: What personalized service does the tag have?
    A: Laser code or screen printing can be printed on the surface.

    Q: Can I customize the size?
    A: Square tag can be customized.

    Q: What must be considered when recycling?
    A: It can be used as ordinary garbage disposal and recycling.

    Q: Are biocompatibility reports available?
    A: All raw materials can provide MSDS report, which conforms to all relevant test items of Rohs and Reach.

    Q: Are there any documents for the toxicity test?
    A: Refer to MSDS report and Reach test report.
