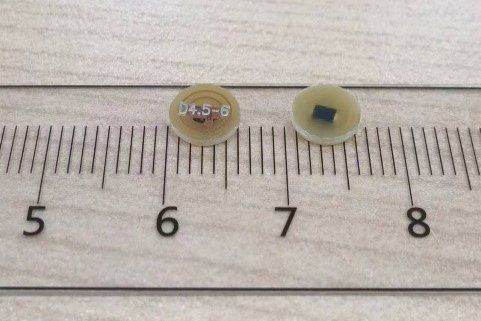

Mini UHF PCB Tag

Mini UHF PCB tag is an industrial-grade component for coupling RFID tag making with an external RF boosting antenna likes laundry tag or object with limited installation space to build RFID in.

It has excellent characteristics of high temperature resistance and high waterproof level (IP68). DFN chip package and FR4 encapsulation protection will improve the performance of physical impact resistance.

Parameter

※ Size: φ6×1.0 mm
※ SMT Pad: Optional
※ Chip: All UHF chips, recommend U9, R6P, H9
※ Protocol: ISO 18000-6C, EPC Class 1 Gen 2
※ Operating Temperature: -40℃~85℃
※ Heat Resistance: ≦260℃/5min
※ IP Rate: IP68

Feature

※ Embedded antenna design, can be read and identified directly by RFID reader
※ Wide frequency range 860~960MHz can meet the different types of customers
※ Mini size module can meet the demanding requirements of cutting-edge designers when choosing ultra-small RFID products
※ Comply with EPC C1G2 and ISO18000-6C and other protocols
※ Chip encapsulated with DFN module supports SMT process
※ FR4 material and DFN encapsulation increases the physical impact resistance
※ Use 70~120mm extended enhanced antenna to read RFID tags and data transmission at a long distance

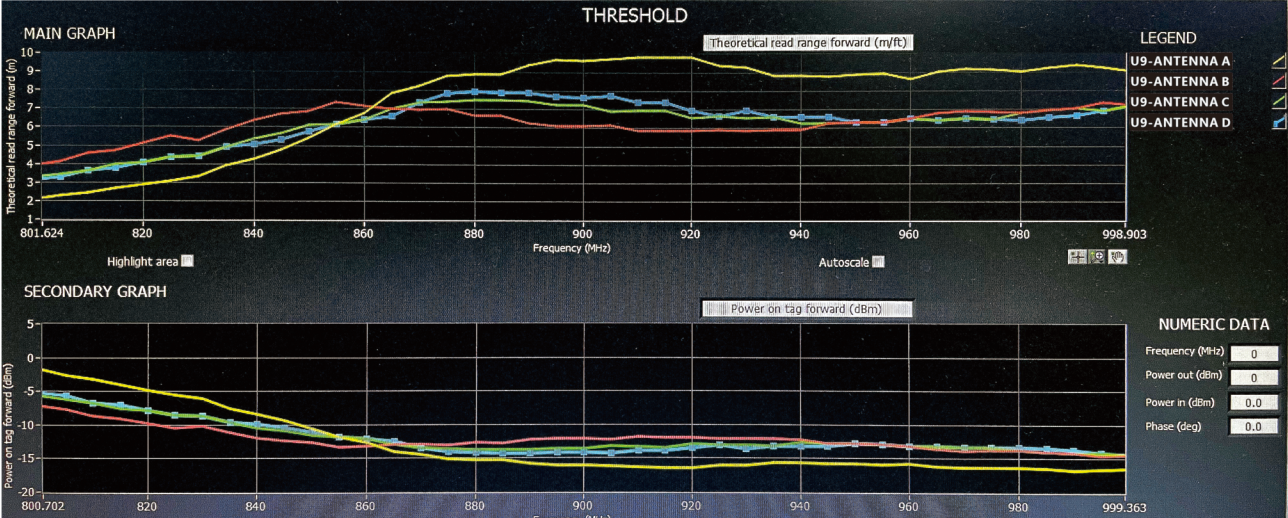

Test screenshots when an external booster antenna is attached (Several Mini PCB TAG of U9 chips)

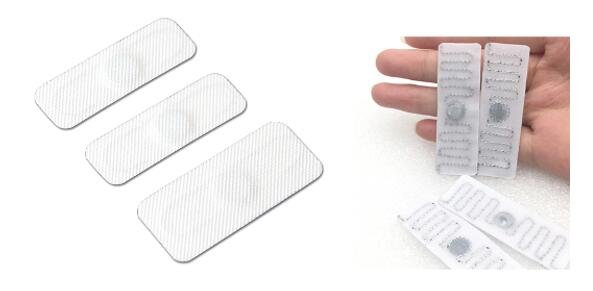

The label is applied to the nylon laundry label with the coupling antenna, which can significantly increase the cycle times of industrial washing and even recycle and reuse to make new laundry labels.
