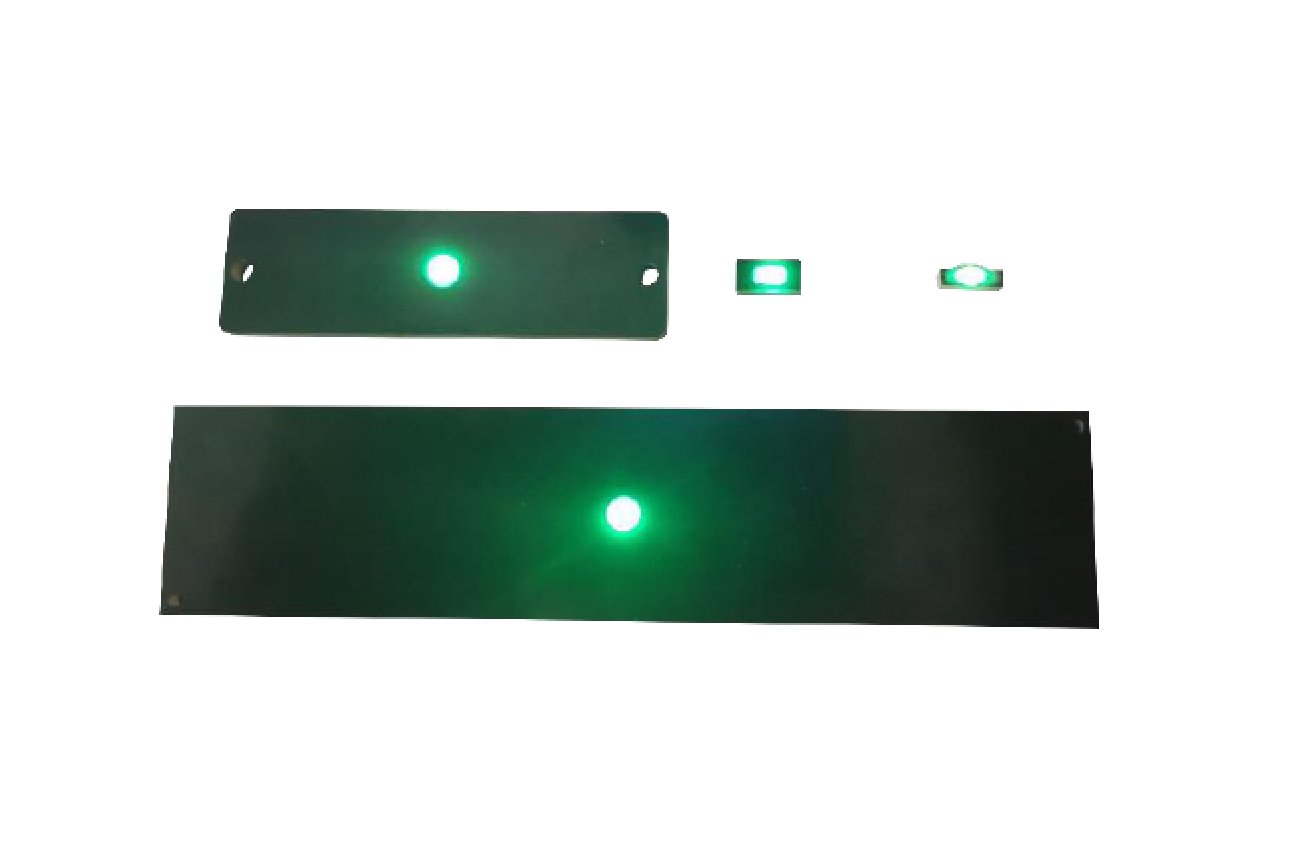

On-metal UHF LED PCB Tag

Skai series On-metal UHF LED PCB tags, have excellent read and write performance on metal objects. The flashing LED can assist people for item-finding and positioning more quickly.
It brings great help for inventory management and search of metal shelves, trays, metal and other items.
According to different metal article shape, small to large sized tag can be customized make, also can be equipped with a plastic protective case.

Application

※ Metal article and asset management
※ Warehousing, Inventory management

Feature

※ LED flashing on specific tag’s EPC from group items
※ Various On-metal applications
※ Small to large tag dimensions to meet different application
※ Mounting way by Adhesive Tape, screw or magnet (optional)
※ Bulk-reading, quick Led trigger On
※ Tag’s Led light up range up to 4.5m (depends on tag, reader, scenario)

Specification

※ Dimension: 10×3mm; 10×5mm; 70×20mm;140×32mm (Customizable)
※ Thickness: 3.2mm
※ Protocol: ISO18000-6C, EPC C1G2
※ RFID Chip: KX2005XBL (OTP memory)
※ Frequency: 840~960MHz
※ Working Mode: Passive
※ EPC: 160bits, User: 1312bits, TID: 96bits
※ Chip Sensitivity: -23.5dBm (Read); -16dBm (Write)
※ LED: Green, Red

Physical Feature

Q: What are the sizes of the tag?
A: There are three sizes: 2.6×2.6×0.8mm; 3.0×3.0×0.8mm; 4.0×4.0×1.0mm

Q: What frequency can these tag support?
A: According to the shape of the external coupled antenna, it can adapt to the full frequency of 860MHz ~ 960MHz.

Q: What chips does the tag support?
A: Supports all ISO18000-6C chips.

Q: Is the tag high temperature resistant?
A: -196℃/>2000h, 125℃/>1000h, 260℃/5min.

Q: Is the label waterproof?
A: Protection grade IP67.

Q: Are these tags divided into both sides?
A: There is no distinction between positive and negative.

Q: Can these tags be with adhesive?
A: Tag without adhesive.

Q: In what form is the tag shipped?
A: Single bulk static bag packaging or braiding.

Application

Q: Can tags be used on metal?
A: The metal material itself can be used to change it into a coupled antenna.

Q: Can these tags be used on metal?
A: The metal itself can be used as a coupled antenna.

Q: Can these tags be embedded into metal?
A: Can’t be embedded in the metal.

Q: How to place theses tags on metal materials?
A: Directly place the tag upright on the metal edge or open a long slit on the metal and place the tag flat on the slit (the placement position needs to be adjusted according to the shape of the metal)

Performance

Q: What is the read distance of the extended antenna without coupling?
A: It can be identified at close range without using the coupling extension antenna. The identification distance will vary according to the model of the reader, and the identification distance is within 0.5m.

Q: What is the read distance of the extended antenna using coupling?
A: Depending on the length and shape of the coupled antenna, the recognition distance can be extended to several meters.

Other

Q: Can the tag size be customized?
A: The size cannot be customized.

Q: Can these tag surface be printed?
A: The surface can be printed with laser UV codes within 6 characters.

Q: What’s the MOQ of this tag?
A: The MOQ is 10K.

Q: How long is the general delivery date?
A: 6-8 weeks for less than 500K, 8-10 weeks for more than 500K
