Description

Specification:

Chip:	ICODE SLI
Frequency:	13.56MHz
Protocal:	ISO 15693
Memory:	128 bytes
Read/Write Times:	100,000 times
Working Life:	10 years

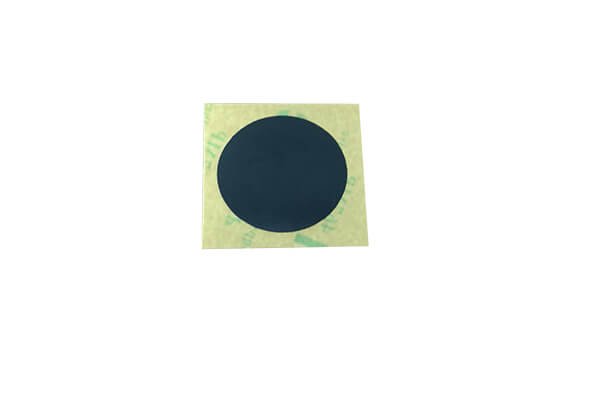

Size:	25mm diameter, 25×38mm (Depends on Request)
Thickness:	0.3 ~ 0.8mm
Material:	PVC/PET
Antenna:	Aluminium Foil
Reading Distance:	1-10cm(Depends on the card reader and antenna)
Working Tmeperature:	-45℃ ~ 85℃
Storage Temperature:	-20℃ ~ 45℃
Available Crafts:	Printing and laser logo, Bar code and Serial numbers, etc.

Application

NFC Interoperability in Automotive

E-Purse

Information Interaction

Quality Guarantee

Providing first class RFID tags is our key and constant mission! Never compromise on quality!!

Quality doesn’t come from inspection, even we do 100% inspection for each item!
Quality comes from advanced design and strict control during manufacturing process!!In order you know exactly performance of such product, we will show our lab testing to measure key parameters, including Resonance Frequency, Q Value, Read/Write Distance, Protocol, UID etc.

Test Sample Description

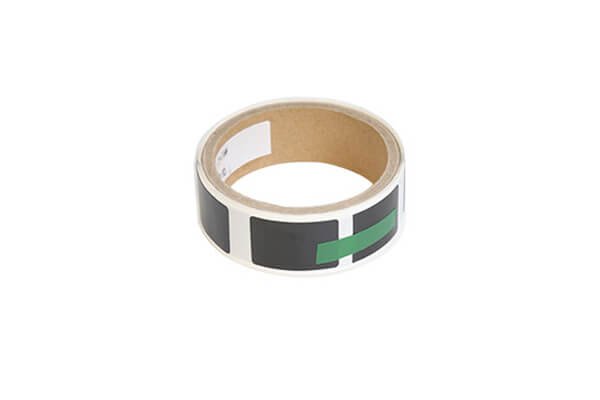

Product: RFID NFC Label

Chip: ICODE SLI

Material: PET

Dimension: 25 x 38 mm

Performance Test

Mainly, we will use following professional instruments to measure key functionality parameters.

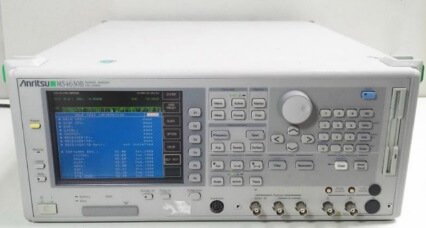

Network Analyzer

Model: Anritsu MS4630B

Frequency Range: 10HZ-300MHz

Calibration certificate authorization

Frequency
Range: 10 HZ to 300MHZ
Resolotion: 0.01HZ
Accurancy(standard)
Aging rate:≤1×10-6/day(15 minutes after power-on)
Temperature characteristics:≤±5×10-6(0 to +50℃)
Accurancy(Option 13: High stability refrence oscillator)
Aging rate:≤1×10-8/day(15 minutes after power-on)
Temperature characteristics:≤±5×10-8(0 to +50℃)

Testing Results

	Sample 1	Sample 2	Sample 3	Sample 4	Sample 5
Resonance Frequency	13.72MHz	13.72MHz	14.04MHz	14.17MHz	13.76MHz

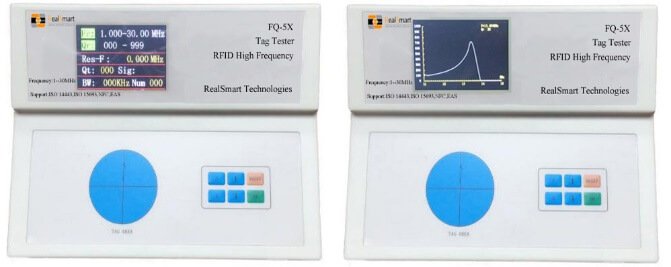

HF RFID Tag Tester

Model: FQ-5X-U
Frequency Range: 1-30MHz
Use this device to measure: RF Functionality, Resonance Frequency, Q Value, RF Protocol

Testing Results

Parameter	Sample 1	Sample 2	Sample 3	Sample 4	Sample 5
Resonance Frequency	13.11MHz	13.58MHz	13.37MHz	13.41MHz	13.01MHz
Q value	31	47	16	16	11
Protocol	ISO15693	ISO15693	ISO15693	ISO15693	ISO15693
UID	E0 04 01 00 7D 4E DB E9	E0 04 01 00 7D 4E CE F0	E0 04 01 00 7B 9A EE C0	E0 04 01 00 7B 9A F2 B4	04 AE 69 D2 24 55 80

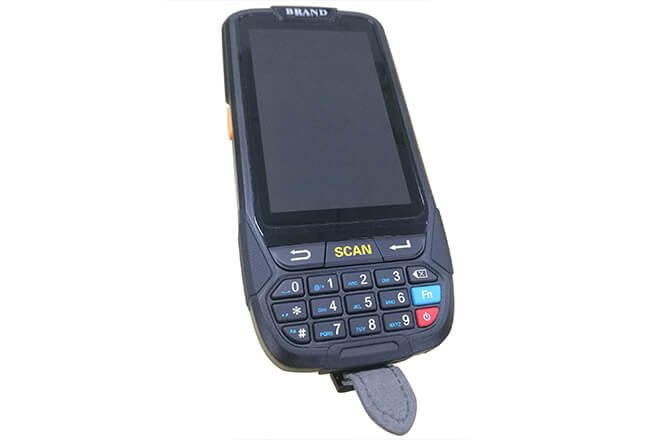

Handheld RFID Card/Tag Reader

Model………………………………………
Power: ……………………………………….
Support Protocol: ISO 14443/15693/NFC etc.
Use this reader to do RF function testing and reading distance measurement.

Testing Results

	Sample 1	Sample 2	Sample 3	Sample 4	Sample 5
RF Functionality	Yes	Yes	Yes	Yes	Yes

We are happy to optimize tag’s RF performance to match your R/W device and reach best results for your application! Welcome to ask if you want to know more about this instrument =>Biz@readfind-iot.com

Reviews

There are no reviews yet.

Be the first to review “PET ICODE NFC Label”

PET ICODE NFC Label

Description

Application

Quality Guarantee

Performance Test

Reviews

Related products

PET NTAG216 NFC TAG

PET NFC Ultralight C Label

Synthetic Paper Felica Label

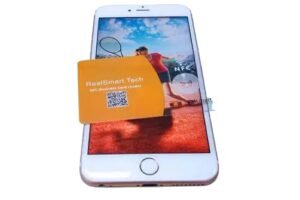

NFC Business Card
