Size: Φ15, L=32
Chip: Alien H3
Operating Temperature: -40 to +85 ℃
MOQ: 100 PCS
The RS-Jasper-Nail is constructed to perform under extreme heat and repeated exposure to caustic fluids for applications such as hot water wash cycles. It is certified for use in explosive atmospheres where customers can be assured that, with great performance, safety has not been compromised.
IT Asset Management
Asset Management
Material Management| Protocol | EPC C1G2(ISO18000-6C) |
| Operating Frequency | 902-928 MHz(US);866-868 MHz(EU) |
| IC Type | Alien H3 |
| Memory | 512-bit user memory;64-bit TID;96-bit EPC |
| Read Rate | 400 tags per second for 96-EPC bit number |
| Write Cycles | 100,000 at 25℃ |
| Data Retention | 50 years |
| Operating Temperature | -40 to +85 ℃ |
| Application Temperature | -40 to +150 ℃ |
| IP Rate | IP 68 |
| Attachment | Nail into the object |
| Warranty | 1 year |

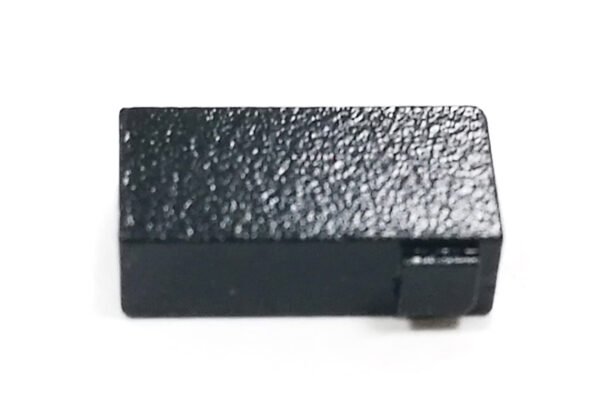

| Product Model | RS-Jasper 10×5×3-Nail |
| Size L*W*H(mm) | 10x5x3 |

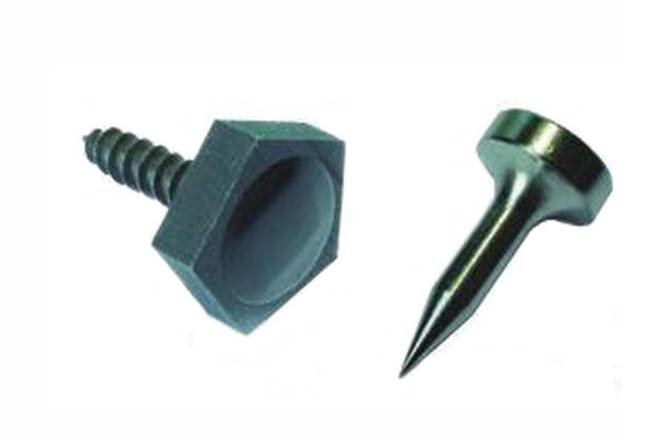

| Nail Size (mm) | Φ15, L=32 |
| Weight | 8.6g |
| Avg Read Range ,4W EIRP | 1.2m |
| Encasing | Glue |
