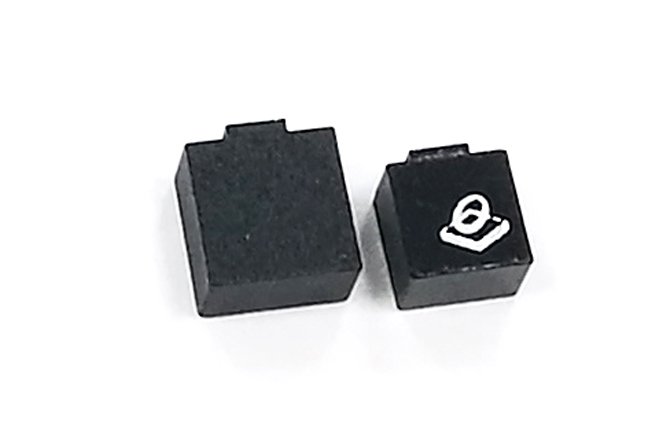

Size: 4x4x3 or 5x5x3 mm
Chip: Alien H3
Operating Temperature: -40 to +85 ℃
MOQ: 100 PCS

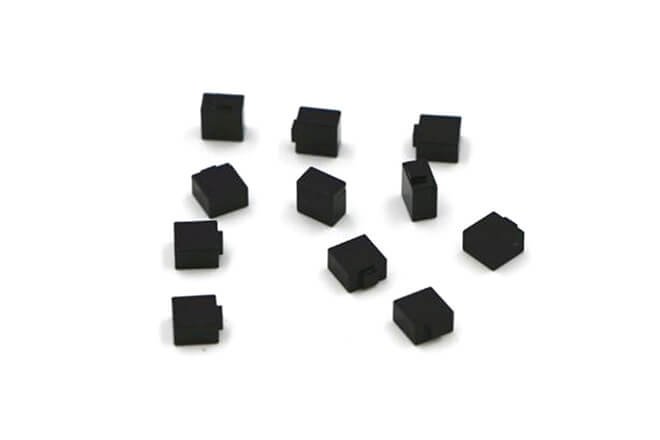

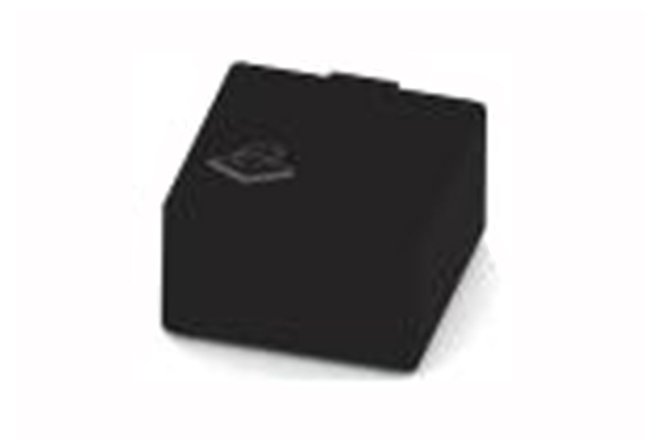

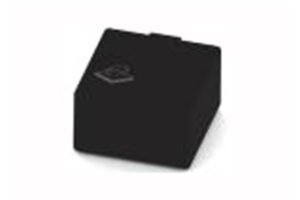

The RS-Opal ceramic tag is useful when you need to embed an RFID tag in a small space like a tool handle. The tag has ideal thermal and chemical properties. As a metal-mount tag, the RS-Opal tag is unparalleled in both size and ruggedness. Reliable 100,000 cycle / 50 year retention capability.
Surgical Instruments Management
Asset Management
Material Management| Protocol | EPC C1G2(ISO18000-6C) |
| Operating Frequency | 902-928 MHz(US);866-868 MHz(EU) |
| IC Type | Alien H3 |
| Memory | 512-bit user memory;64-bit TID;96-bit EPC |
| Read Rate | 400 tags per second for 96-EPC bit number |
| Write Cycles | 100,000 at 25℃ |
| Data Retention | 50 years |
| Operating Temperature | -40 to +85 ℃ |
| Application Temperature | -40 to +150 ℃ |
| IP Rate | IP 68 |
| Attachment | Adhesive |
| Warranty | 1 year |
| Product Model | RS-Opal |

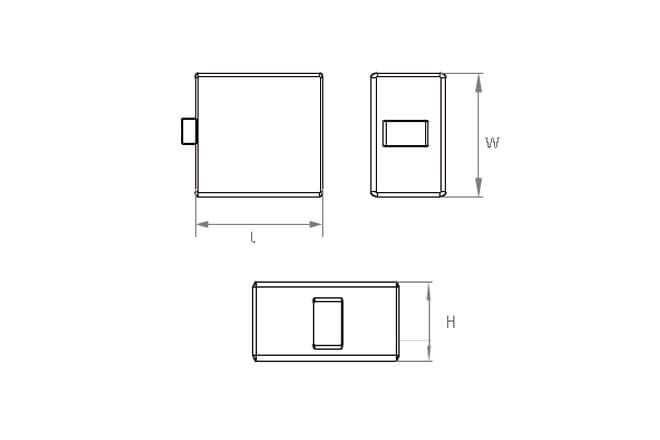

| Size L*W*H(mm) | 4*4*3 or 5*5*3 |
| Weight | 0.26g |

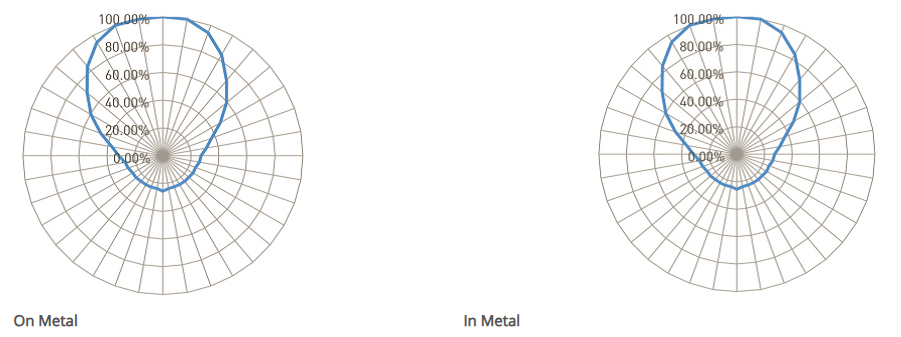

| Avg Read Range on Metal,4W EIRP | 1.0m |
| Avg Read Range in Metal,4W EIRP | 0.5m |
| Encasing | Durable Paint |

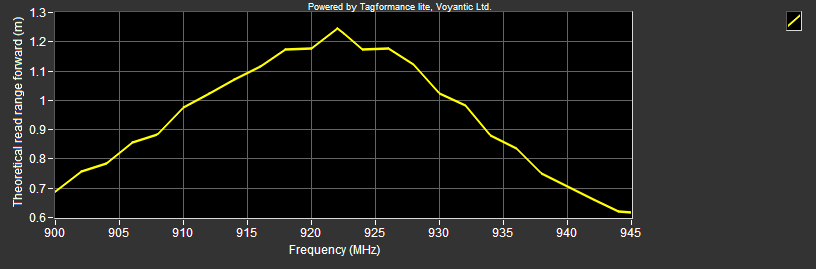

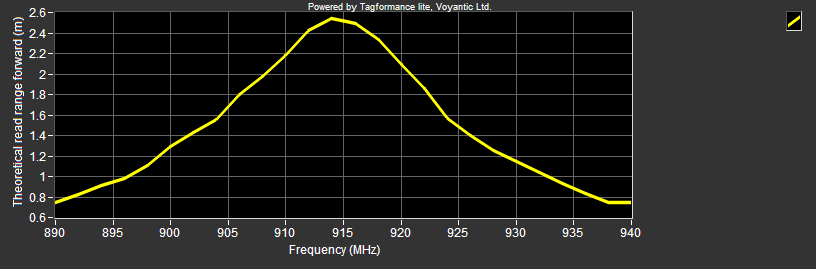

Voyantic
Model: Tagformance Lite
Version: 2.2
