Size: 5x5x3 mm
Chip: Alien H3
Operating Temperature: -40 to +85 ℃
MOQ: 100 PCS

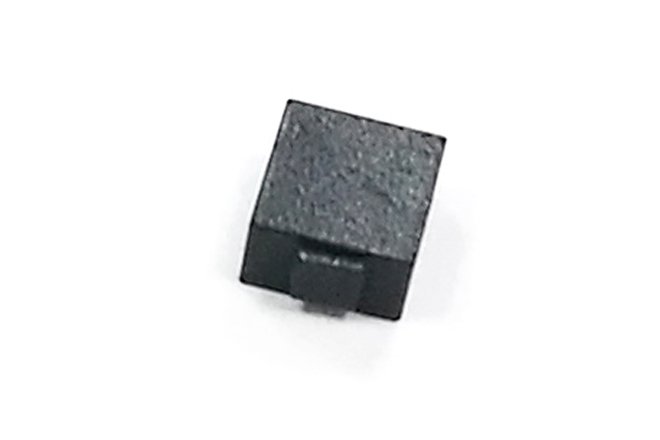

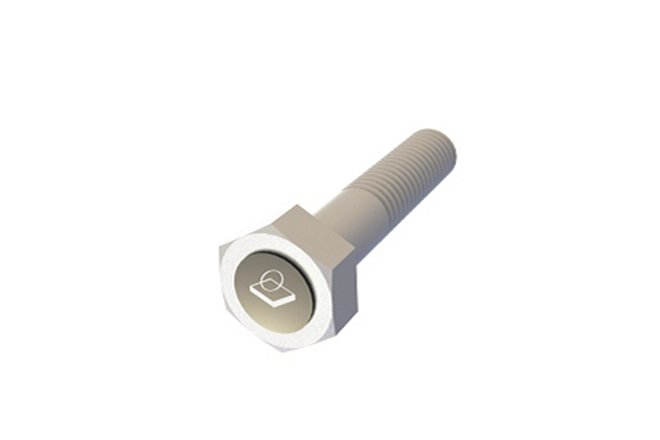

The RS-Opal-Bolt ceramic tag is useful when you need to embed an RFID tag in a small space like a tool handle. The tag has ideal thermal and chemical properties. As a metal-mount tag, the RS-Opal tag is unparalleled in both size and ruggedness. Reliable 100,000 cycle / 50 year retention capability.
Surgical Instruments Management
Asset Management
Material Management| Protocol | EPC C1G2(ISO18000-6C) |
| Operating Frequency | 902-928 MHz(US);866-868 MHz(EU) |
| IC Type | Alien H3 |
| Memory | 512-bit user memory;64-bit TID;96-bit EPC |
| Read Rate | 400 tags per second for 96-EPC bit number |
| Write Cycles | 100,000 at 25℃ |
| Data Retention | 50 years |
| Operating Temperature | -40 to +85 ℃ |
| Application Temperature | -40 to +150 ℃ |
| IP Rate | IP 68 |

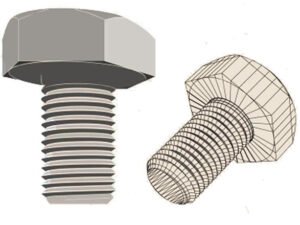

| Attachment | Screw installation |
| Warranty | 1 year |
| Product Model | RS-Opal-Bolt |
| Size L*W*H(mm) | 5*5*3 |
| Weight | 35g |
| Avg Read Range,4W EIRP(Bolt Mounted on metal) | 1.5m |
| Encasing | Plastic or glue |
