Description

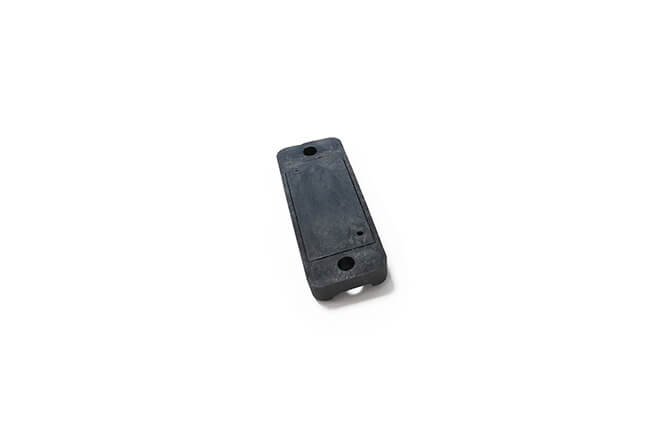

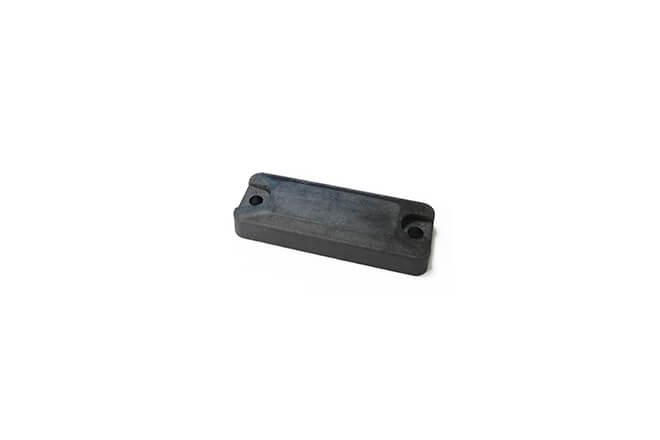

RS-3714
RS-3714 high temperature resistance metal tag is designed and
manufactured for use in harsh environment, its installation on the
surface of metal material, its long-term resistance to high temperature
of 200℃, long-term resitance to acid and alkaline environment, and can withstand ultrasonic cleaning.
This tag installation flexible, can use rivet installation, or screw installation.
Specifications:
| Protocol |
EPC Class Gen2; ISO18000-6C |
| Working Frequency |
902~928MHz(Customize other specific frequencies) |
| Chip |
Alien H3(customize same resist high temperature tags based on M4QT, Ucode8, Ucode7M, R6P) |
| Chip Memory |
Alien H3: EPC 96bits, User memory 512bits |
| Read & Write Performance |
R/W (Customer an rewrite the information) |
| Data Srorage |
20 years |
| Warranty |
1 year |
| Main Material |
High temperature resistant injection material & ceramic material |
| Weight |
12g/pcs |
| Working Temperature |
-25 ~ 115℃ |
| Storage Temperature | -40 ~ 200℃ |
| Storage Humidity | 5% ~ 95% |
| Mounting | Screw, Rivet, Super glue, Adhesive for two sides |

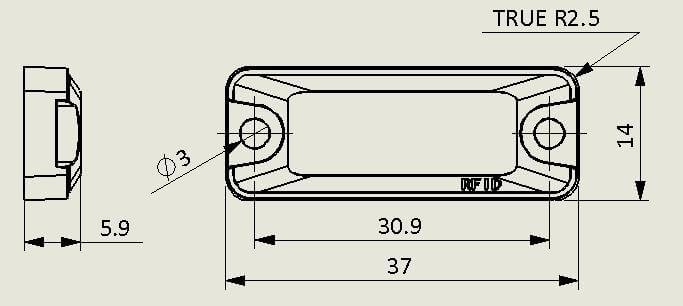

Product Size:
| Dimension |
37×14×5.9mm |
| Hole Diameter |
3mm |
| Hole Center Spacing |
30.9mm |
RF Performance:
| Fixed Reader (on metal) |
Over 2m (4W EIRP,by Alien9900 fixed reader, maybe different by other reader) |
| Hand Reader (on metal) |
Over 1.2m (Via Alien9011 hand reader at the outdoor space, maybe different by other reader) |
| Polarization Mode |
Linear Polarization |
| RF Performance Consistency Test | 100% passed by Finland Voyantic tester |
Reliabilith Testing:
| Drop Testing |
10 times passed for 1m high |
| Alcohol Testing |
95% Alcohol test pass |
| Gasoline Testing |
#92 Gasoline test pass |
| Temperature Shock Testing | Pass (from -40℃ to 150℃, 7 times, 2 days total) |
| RoHS | Passed, Material passed SGS certification |
| IP Tating | IP68 |
| Ultrasinic Cleaning Testing | Passed |
