Description

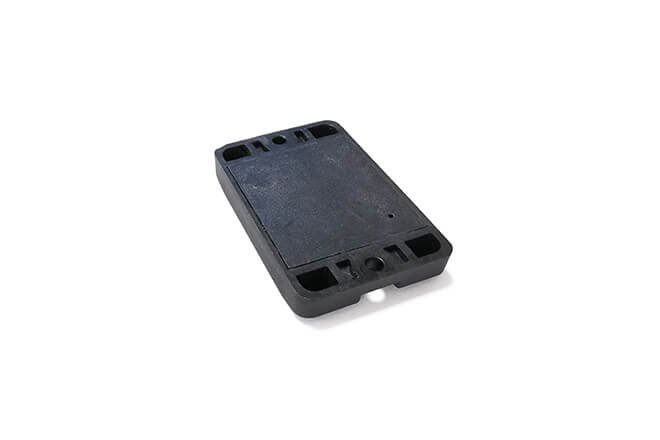

RS-4631

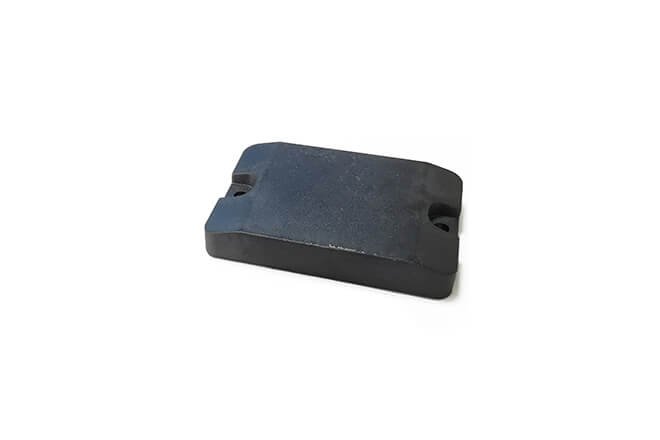

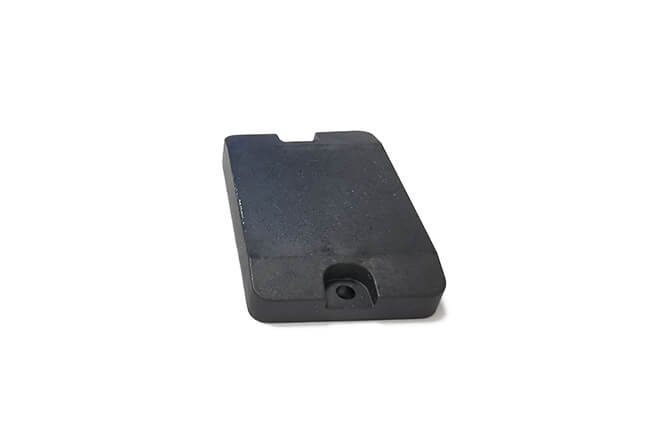

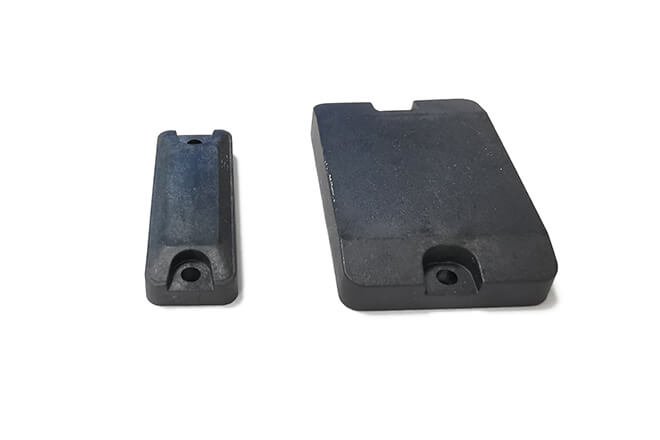

RS-4631 high temperature resistance metal tag is designed and manufactured for use in harsh environment, its installation on the surface of metal material, its long-term resistance to high temperature of 200℃, long-term resitance to acid and alkaline environment, and can withstand ultrasonic cleaning.
This tag installation flexible, can use rivet installation, or screw installation. The reliability of the tag can withstand: high temperature test, high and low temperature alternating test, acid base test, vibration test, ultrasonic washing test.
Specifications:
| Protocol | EPC Class Gen2; ISO18000-6C |

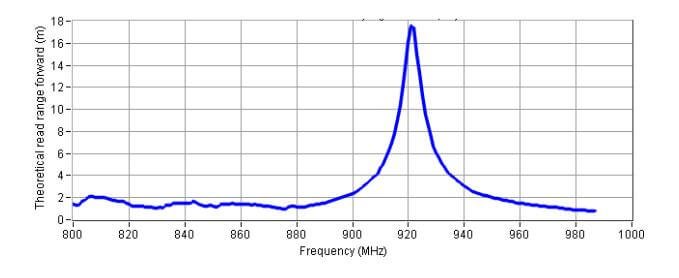

| Working Frequency | 902~928MHz(US), 865~868MHz(EU)(Customize other specific frequencies) |
| Chip | Alien H3(customize same resist high temperature tags based on M4QT, Ucode8, Ucode7M, R6P) |
| Chip Memory | Alien H3: EPC 96bits, User memory 512bits |
| Read & Write Performance | R/W (Customer an rewrite the information) |
| Data Srorage | 20 years |
| Warranty | 1 year |
| Main Material | High temperature resistant injection material & ceramic material |
| Weight | 21g/pcs |
| Working Temperature | -25 ~ 95℃ |
| Storage Temperature | -45 ~ 200℃ |
| Peak Temperature | 230℃ @ 1 hour |

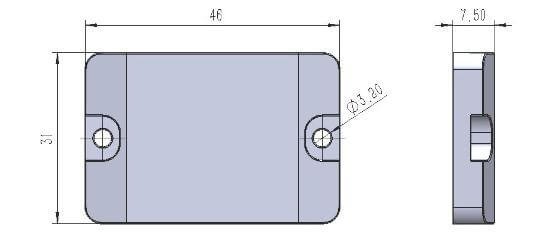

Product Size:
| Dimension | 46×31×7.5mm |
| Hole Diameter | 3.2mm |
| Hole Center Spacing | 39.6mm |
