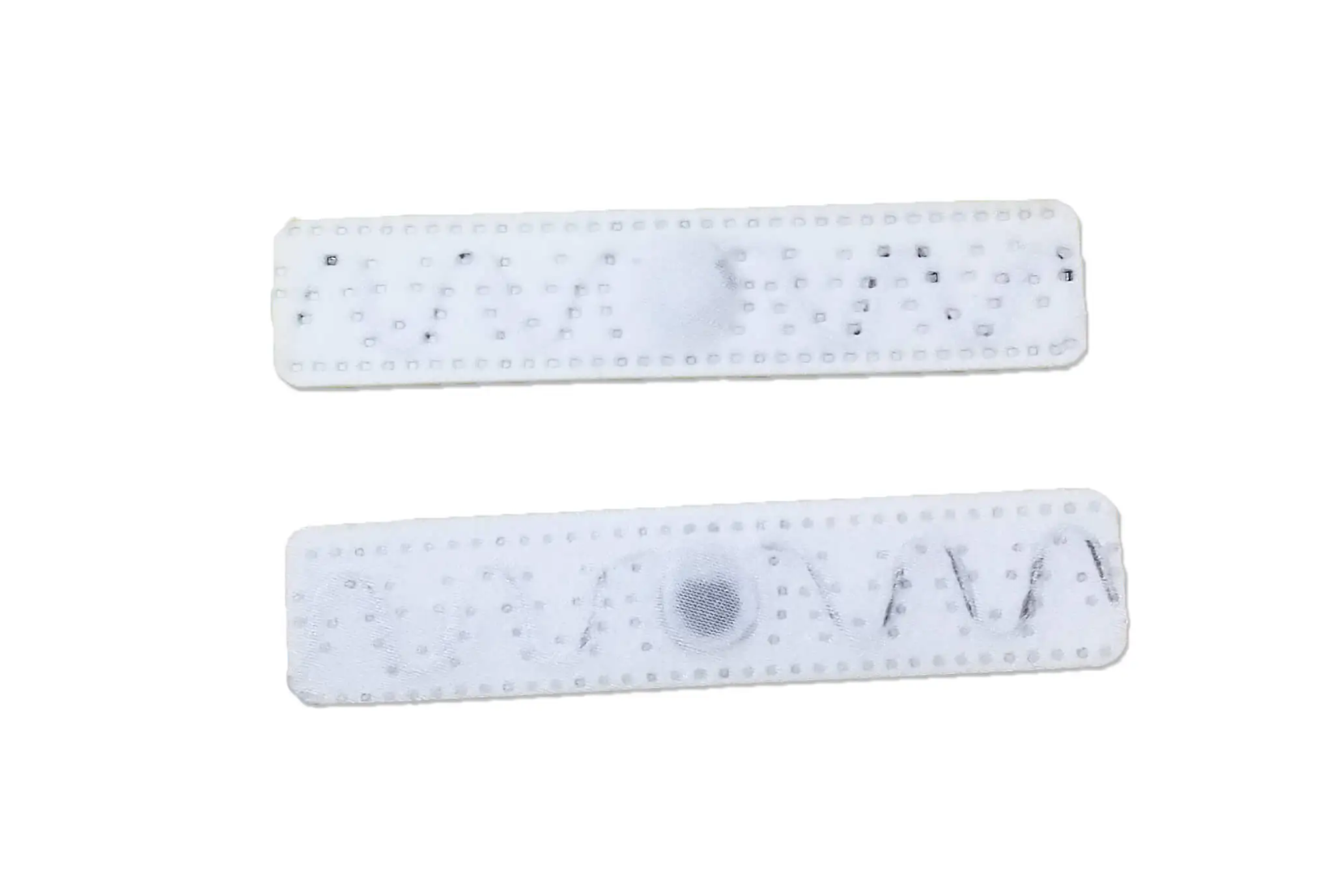

Overview

RFID Laundry Tags is soft, flexible and thin tags,it can be applied quickly and easily in multiple ways – sewn, heat-sealed or pouched – according to your wash process needs.it was designed specifically to meet the rigors of high volume, high pressure wash workflows to help extend the life of your assets and have been tested in real-world laundries for over 200 cycles to ensure guaranteed tag performance and endurance.

Feature

1. Waterproof, high temperature resistant
2. Outstanding mechanical resistance ensures tag performance and endurance for reduced wear-and-tear
3. Tested for over 200 cycles in real laundries!
4. Suitable for autoclave
5. best-in-class for confined field applications

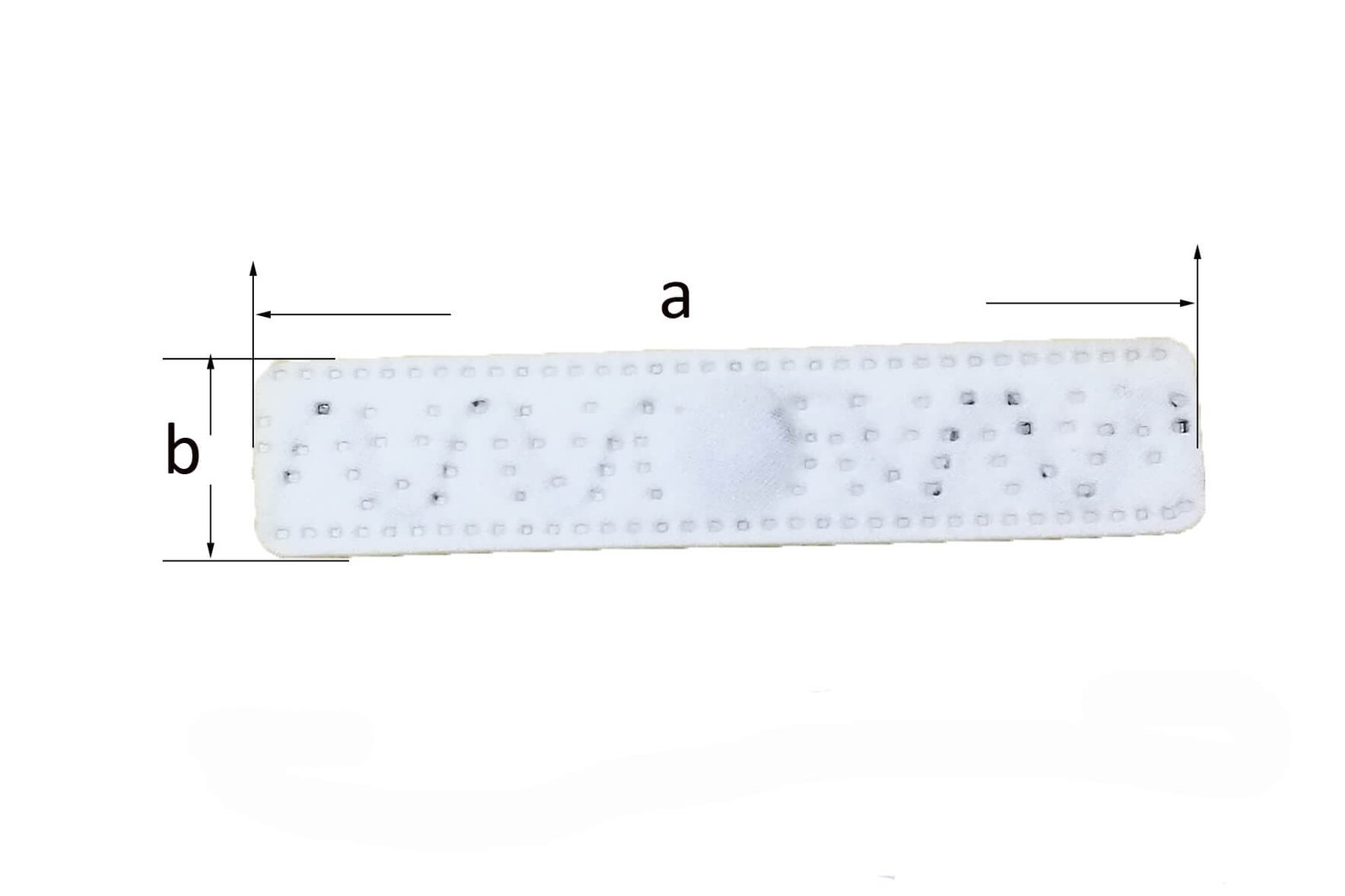

a(mm)	70	70	70
b(mm)	17	15	14

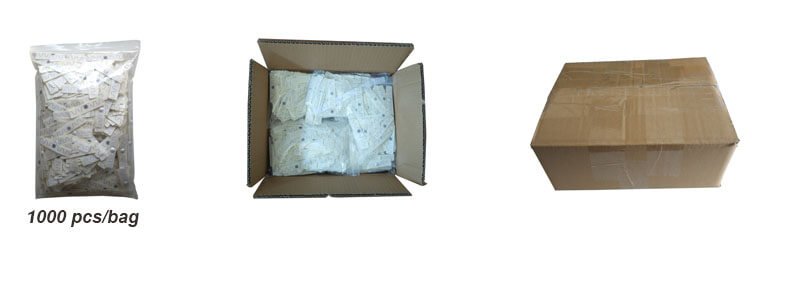

Package

Parameter

Physical:

Material	50/50 polycotton or full polyester

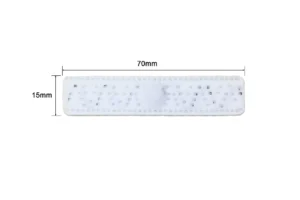

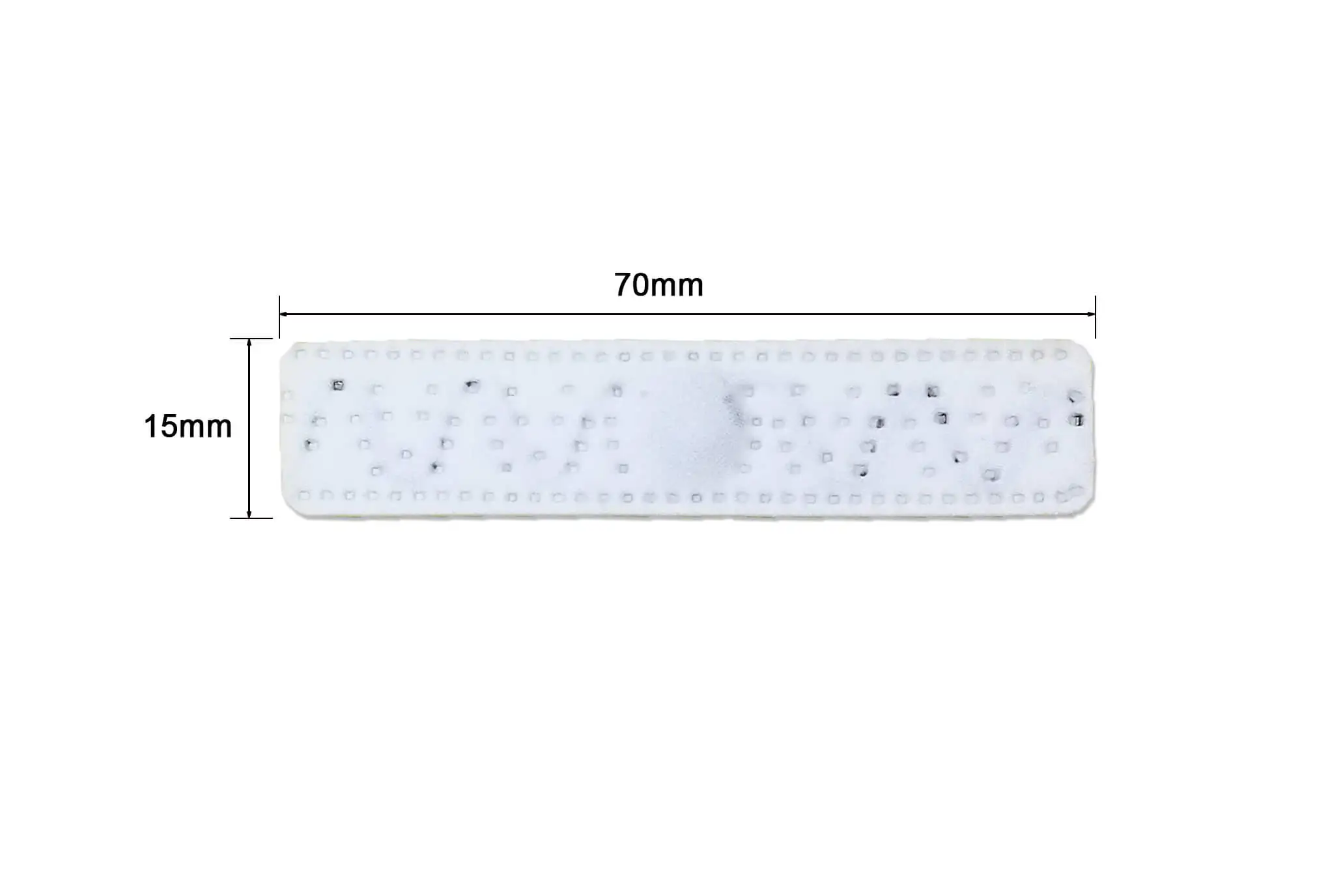

Dimension	70x15x1.8mm or 70x17x1.8mm
Antenna	Copper
Weight	0.4g/pcs
Reading Distance	Up to 6m
Protocol	ISO 18000-6C EPC Global Class Gen2
Tag Warranty	First of 200 wash

Features

Frequency	902~928MHz(US)
Chip	Monza R6-P
Write Endurance	100,000 Cycles
Data Retention	10 years
Working Life	Machine washable up to 200 cycles
Reading Distance	3m(fixed reader)

Environmental Parameter

Operating Power	Passive, operates through antenna’s RF field
Typical Washing Cycle	Wash: 90℃@15min, Dry: 180℃@3min, Ironing: 200℃@12sec, Water Extractor: 60bar@80sec
Autoclave	Air Removal: 100℃@5min, 0.1bar Sterilizing: 140℃@10min, 3.25bar Drying: 45℃@15min,0.2bar
Patching Instructions	204℃@12sec, 0.5kg/m²
Storage Temperature	-40℃ ~ 120℃
Chemical Resistance	All chemicals common to the washing process

Specification

☆ World wide UHF supported

☆ High security: UID, write protection

☆ Multiple tags operation allowed

☆ Logo printing, serial number, bar code allowed

☆ Advanced RFID tag production technology ensured outstanding quality

☆ Green products, ROHS, SGS compliance

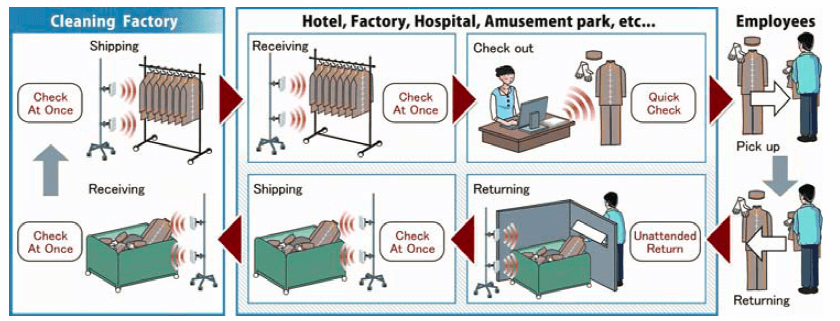

Application

RFID UHF Woven Laundry Tag

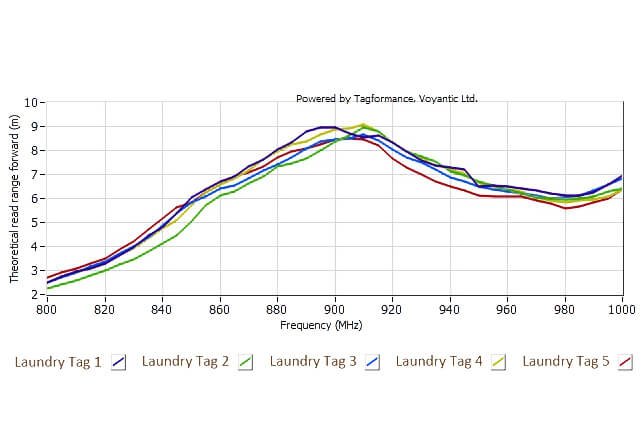

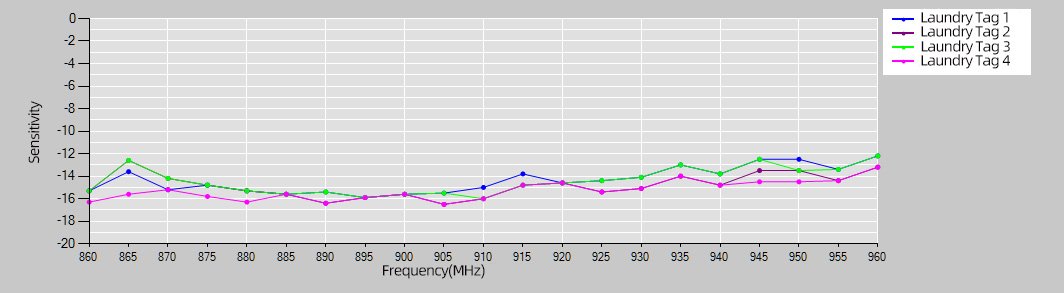

Test Performance
