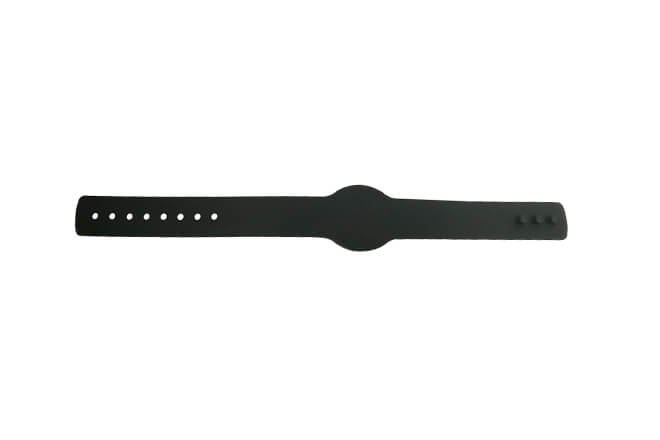

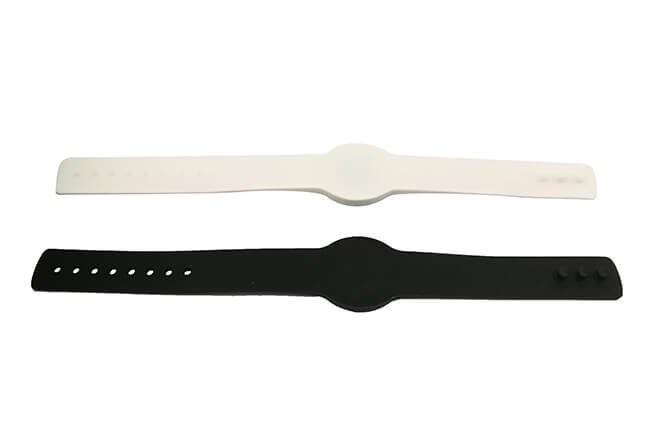

Silicone Wristband RSW-KG08

Size: 240*19*31mm
Support chip: LF, HF, UHF
MOQ: 100PCS

REQUEST A QUOTE

Description

Specification

Material: Silicone
Body Color: Black, Blue, Red, Yellow, Pink, Green etc.
Available Chip: LF, HF, UHF on request
Optional Service: Color/logo/numbers printing, customized requirement, UID
Working Temperature: -30℃～ 220℃
Standard Package: 100 pcs/pouch
Main Features: Water proof, high temperature resistance, durable, eco-friendly
Application: Water Parks, Theme Parks, Concerts/Festivals, Resorts, Clubs, Sporting Venues, etc.

Personalized Service

Graphics Laser EngragvingGraphics Laser Engragving
Laser ColoringLaser Coloring
QRQR
Fill ColorFill Color
Graphics Colorful PrintingGraphics Colorful Printing
EpoxyEpoxy

RFID vs Barcode Wristbands Comparison Table

Work flow

Application

RFID Silicone Wristband is a portable transponder It provides outstanding performance and durability in harsh environmental conditions.
E-Purse: Make trading easierE-Purse: Make trading easier
Transport: More personalized transit paymentsTransport: More personalized transit payments
Membership: Better membership managementMembership: Better membership management

Manufacturing View

DyeingDyeing
InjectionInjection
MoldingMolding
DemouldDemould
Function TestFunction Test
LaserLaser

Package

BaggingBagging
EncasementEncasement
SealingSealing

Ordering

-MOQ: 100 pcs.
-Lead Time for standard job: 1K 10 days, 10K 15 days, 50K 20 days, 100K & above ask sales. You will get response in 24 hours.
-Quotation: Ask our sales & service team Biz@readfind-iot.com

Quality Guarantee

Providing first class RFID tags is our key and constant mission! Never compromise on quality!!

Quality doesn’t come from inspection, even we do 100% inspection for each item!
Quality comes from advanced design and strict control during manufacturing process!!

In order you know exactly performance of such product, we will show our lab testing to measure key parameters, including Resonance Frequency, Q Value, Read/Write Distance, Protocol, UID etc.

Test Sample Description
Product: Silicon RFID wristband
Chip: NTAG213
Model: RSW-KG08
Dimension: 240*19*31mm

Performance Test

Mainly, we will use following professional instruments to measure key functionality parameters.

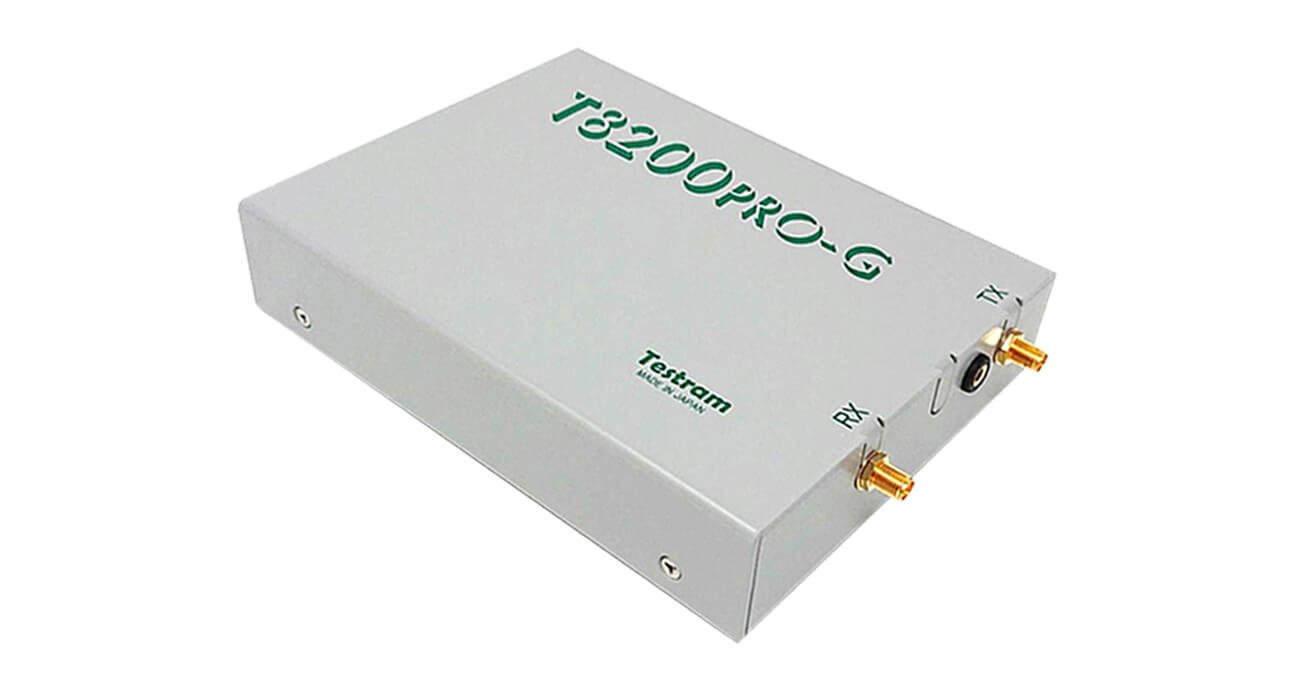

T8200PRO-G LF/HF Tag Tester
Testing Item:
1. Resonance frequency
2. Attenuation
3. Q factor
4. UID

Silicone Wristband RSW-KG08



Network Analyzer

Model: Anritsu MS4630B

Frequency Range: 10HZ-300MHz

Calibration certificate authorization

PET NFC Ultralight C Label

Frequency Range: 10 HZ to 300MHZ
Resolotion: 0.01HZ
Accurancy(standard)
Aging rate:≤1×10-6/day(15 minutes after power-on)
Temperature characteristics:≤±5×10-6(0 to +50℃)
Accurancy(Option 13: High stability refrence oscillator)
Aging rate:≤1×10-8/day(15 minutes after power-on)
Temperature characteristics:≤±5×10-8(0 to +50℃)

Main measurement parameter: Resonance Frequency, Q Value

Testing Results

  Sample 1 Sample 2 Sample 3 Sample 4 Sample 5
Resonance Frequency 13.41MHz 13.58MHz 13.53MHz 13.56MHz 13.56MHz


HF RFID Tag Tester

Model: FQ-5X-U
Frequency Range: 1-30MHz
Use this device to measure: RF Functionality, Resonance Frequency, Q Value, RF Protocol
Testing Results

PET NFC Ultralight C Label

  Sample 1 Sample 2 Sample 3 Sample 4 Sample 5
Resonance Frequency 13.68MHz 13.81MHz 13.78MHz 13.84MHz 13.66MHz
Q value 35 36 36 36 34
Protocol ISO14443A ISO14443A ISO14443A ISO14443A ISO14443A
UID 041B7B1A4B3F80 0480691A4B3F80 0438701A4B3F80 04AF6F1A4B3F80 04B0671A4B3F80


Handheld RFID Card/Tag Reader

Model………………………………………
Power: ……………………………………….
Support Protocol: ISO 14443/15693/NFC etc.
Use this reader to do RF function testing and reading distance measurement.
Testing Results

PET NFC Ultralight C Label

  Sample 1 Sample 2 Sample 3 Sample 4 Sample 5
RF Functionality Yes Yes Yes Yes Yes
R/W distance-mm <15mm <15mm <15mm <15mm <15mm

We are happy to optimize tag’s RF performance to match your R/W device and reach best results for your application!
Welcome to ask if you want to know more about this instrument =>Biz@readfind-iot.com

Quality Control

Quality Control During Manufacturing
— R&D process: Reliable technology for key component/part choose

Fill Oil

Fill Oil

Epoxy

Epoxy

Pad Printing

Pad Printing

Laser

Laser

Compare with other vendor, even outlooking is nearly same, but probably the heart of Silicon Wrist Band is different!!  The embedded token tag is such heart!!  Actually, so many know-hows lead the quite different reliability and quality! But most seller will not tell you!! Even they don’t care about it! But, we are not!
— Proper material used

FPC

FPC

PCB

PCB

Epoxy

Epoxy

Ceramic

Ceramic

— Trackable production
Molding

Molding

Injection

Injection

Encoding

Encoding

Pad Printing

Pad Printing

— 100% functionality and visual inspection
Material Hardness

Material Hardness

Tensile Test

Tensile Test

Appearance Instrumentation

Appearance Instrumentation

Function Test

Function Test

We’re happy to share you more details by offline, allow you know more as we can.

FAQ

General Information

Question Answer
Can I get a quotation? If you have a special request you can simply email us at contacts@rsmart.com.cn and we will be more then glad to help you out.
What is your minimum order quantity for wristbands? 100 pcs.
What’s the turnaround time? We have the fastest turnaround time in the nation. Standard turnaround is 7 days production and 7 days shipping. The best part about our company is that we guarantee our delivery dates.
What sizes are available? If you want a custom size then please call our sales team and they will advise you on how to place a special order.
Can I place my order online? Yes, you can. Following are the ways you can place your order:

1. Online

2. On the phone +86 21 6432 6941

3. Via email contacts@rsmart.com.cn

4. Via Skype/whatsapp
I need to make a change to the order that I placed. Contact with our sales team and they will try to make the change as long as the order is not in production.
How printing will appear on Tyvek/Plastic? All Tyvek/Plastic bands the message is always left indent unless any special instruction is given.
I want custom rubber wristbands, Is your price lowest? Our prices are ALWAYS the lowest in the market for wristbands. We can assure you that there will be no company in the market that will be able to provide a lower price and faster turnaround then our company.
Badge Holders/ID Reels Printing Extra Charges Depending on the gradiation of colors and artwork complexities for overlapping colors, there might be additional cost which can be informed post proof made by factory.

About Artwork

Question Answer
Can I put a logo or emblem on my bands? Yes you can send your own logo to our sales.
Why the color of actual products is not exact same as the proof I approve? The colors of the proof as shown are approximate and will differ on each computer monitor. We use PANTONE color number for mixing colors.
Can I use other font, not the regular font? Yes, you can provide the font you want to print on the band.
Can I customize wristbands with a different color than the popular colors? Yes you can use any color from the Pantone Card.

About Digital Proof

Question Answer
Can I preview before I purchase? We offer you free proof before you decide to purchase and a hassle free experience.
Will I be charged extra if want to change the proof before confirming the order? No, you can make as many changes as you like.
I received my proof and I want to make a change. How can I do that? Simply reply back to the email proof that you received and tell us the change you would like and we will revise the proof and send you a new proof.
How long does it take to get a digital proof? It will take anywhere from 4-6 hours.
What is a digital proof? A digital proof is a digital image of how your wristbands will look. We will show you a image before we start production. You can make as many changes as you like to the digital proof until you are satisfied.
How can I confirm to the proof I received? Simply reply to the proof email stating that you confirm the proof layout and then we will start production.
