SlimTap Ring Series

Overview

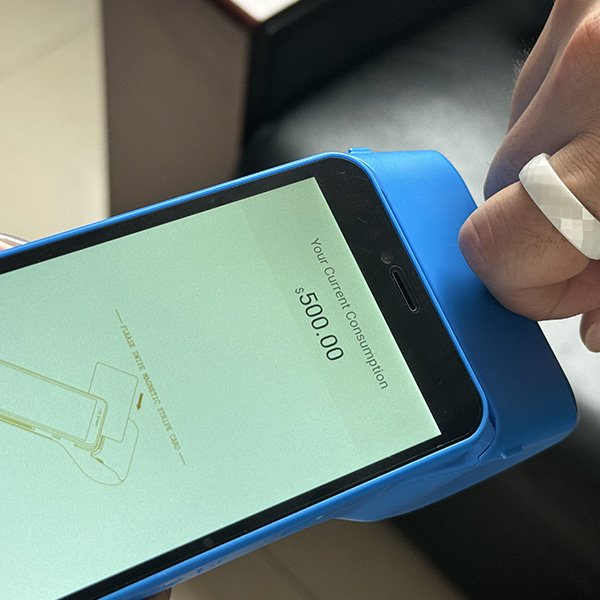

Wearable devices are increasingly entering modern life. NFC Ring integrates fashion, uniqueness, intelligence and NFC functions. With Tap & Go way, it can be used for payment, access control, public transportation, business card sharing, car keys and embrace a smart and convenient lifestyle!

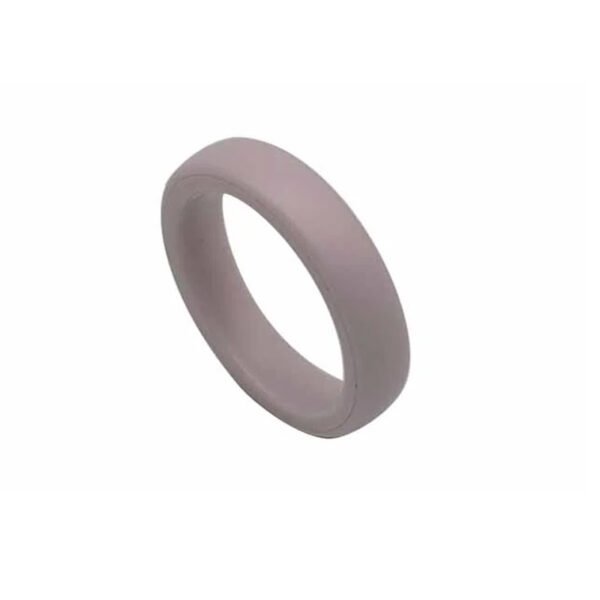

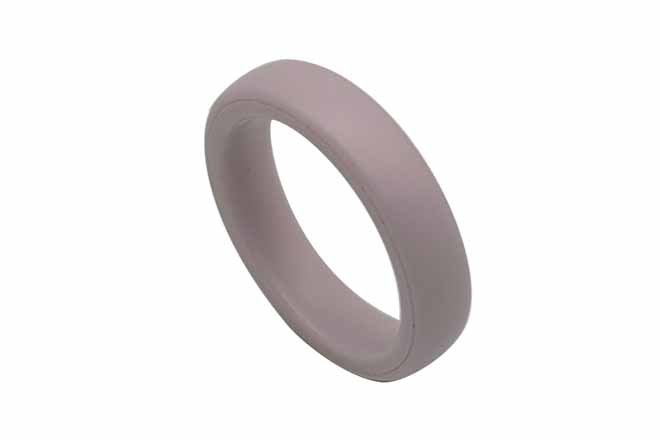

SlimTap series is a high-tech product that combines fashion and intelligence. It is made of wear-resistant and scratch-resistant ceramic material, with a delicate and slender design and is comfortable to wear. Users can store personal business cards, Wi-Fi passwords, payment information, etc. in the ring, and quickly share or unlock access control through simple approach movements.

Feature

※ Chip: NTAG 213/215/216, ISO 14443A protocol NFC Chip, Contactless CPU Chip

※ Antenna Size: Customization, according to different models, chips and read & write performance requirements

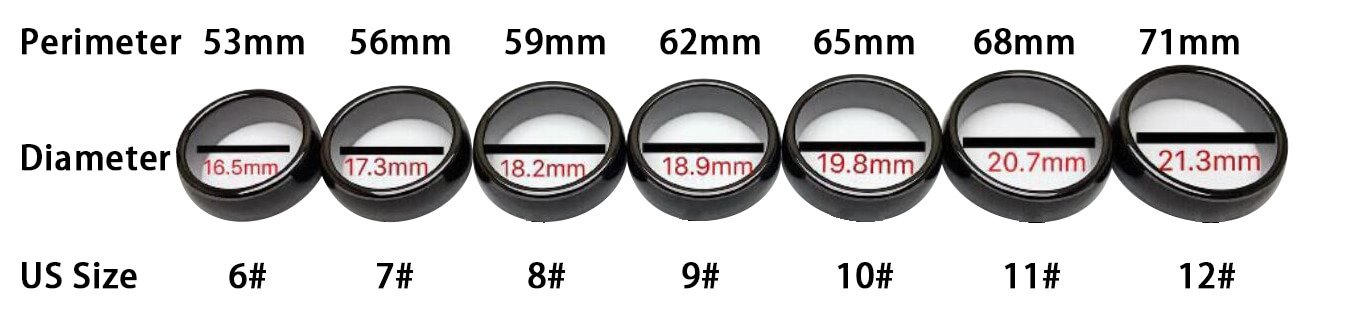

※ Dimensions: Ring Width 5.2mm, inner diameter refer to the following data

※Reading Performance: POS machine 20~25mm, Desktop reader 30~40mm, mobile phone 20~30mm

※ Reading direction: The metal ring has a fixed reading direction, and other materials can be identified in all directions at close range

※ Material: Plastic, Ceramic, Alloy, Silver, Gold (single material optional)

※ IP Rating: IP65~IP68(Different forming processes caused different IP rate)

※ Personalization: Laser engraving, Built-in personalized patterns

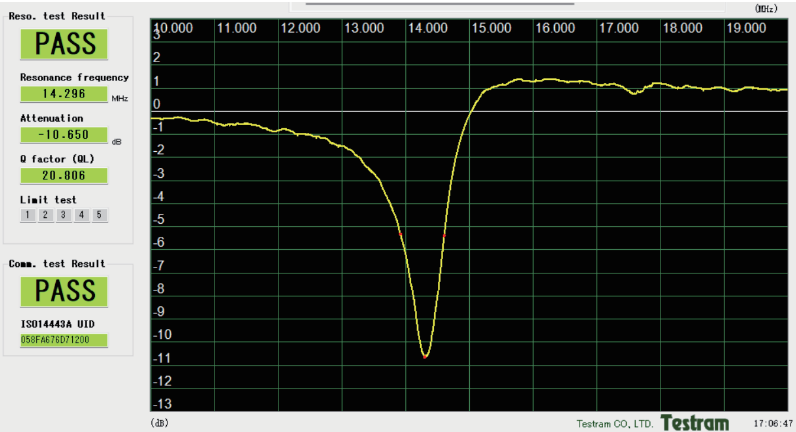

RF Parameter

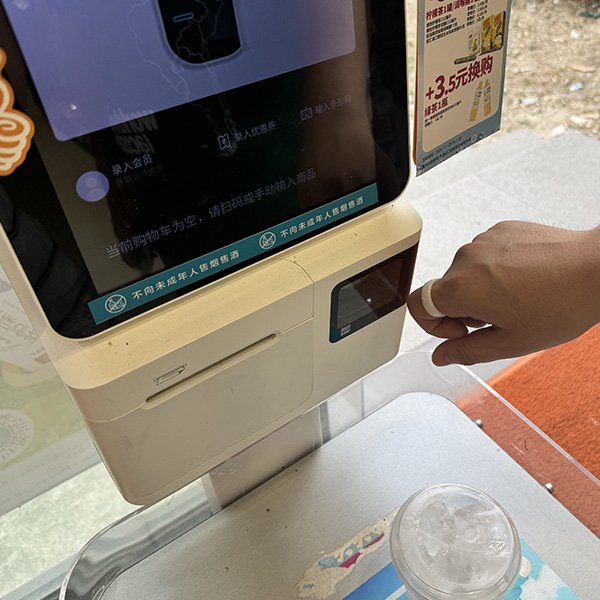

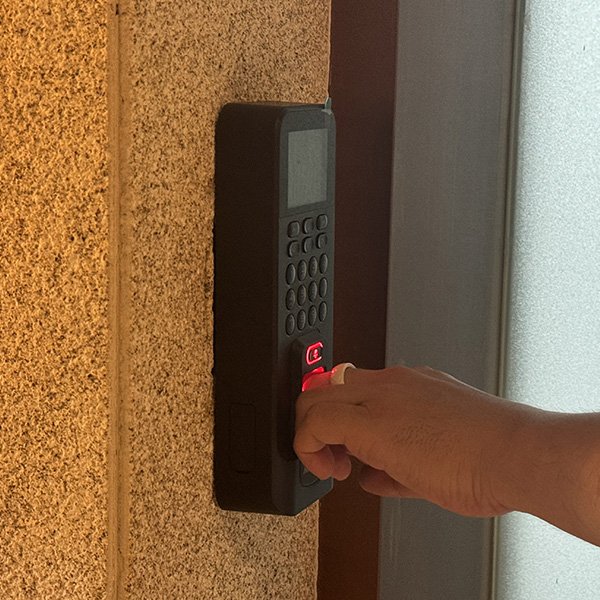

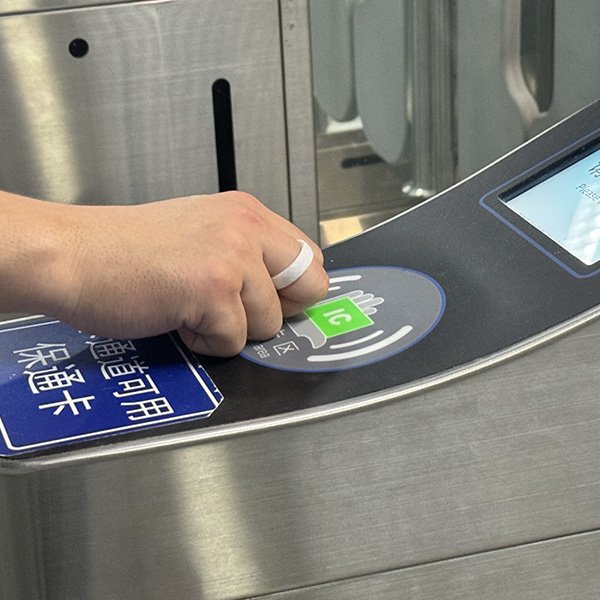

Application
