Overview
Kings series presents a tiny HF RFID tag collection,which supports ISO14443, NFC Forum, ISO15693 RFID chips based on 13.56MHz frequency band.
Excellent RF performance, physical properties and weather resistance are outstand features!
Whether fixed onto object surface, or emmbedded into item by injection molding and other methods to realize NFC interactive service and digitalization of item management!
| Tag Dimension | 5.0 x 5.0 mm |
| Tag Thickness | 1.0 mm |
| Built-in Antenna | Direct reading with great performance |
| Materials | EMC Epoxy |
| Chip | NXP Ntagxx, Icodexx, ST25Txx, TI Tag-it etc. (Customizable) |
| Protocol | ISO14443A, NFC, ISO15693
|
| Operation Temmperature | -40 ~ 85℃ |
| Temperature Resistance | 125℃/>1000h |
| Data Retention | 10 years |
| Reading Range | 10mm (Test by HUAWEI NOVA 7, Depends on reader/phone) |

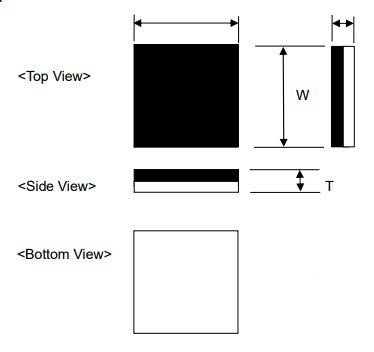

Reference Picture
| Mark | Dimension(mm) |
| L | 5.0 ± 0.2 |
| W | 5.0 ± 0.2 |
| T | 1.0 ± 0.3 |

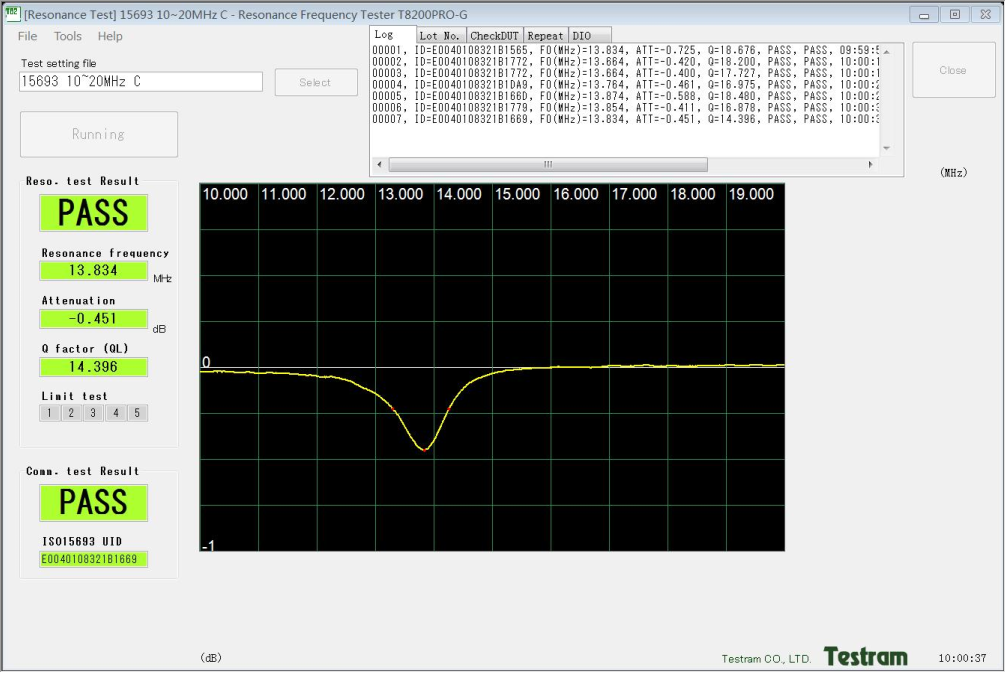

Performance Test
