Physical Feature

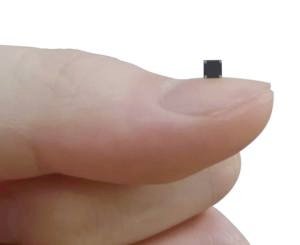

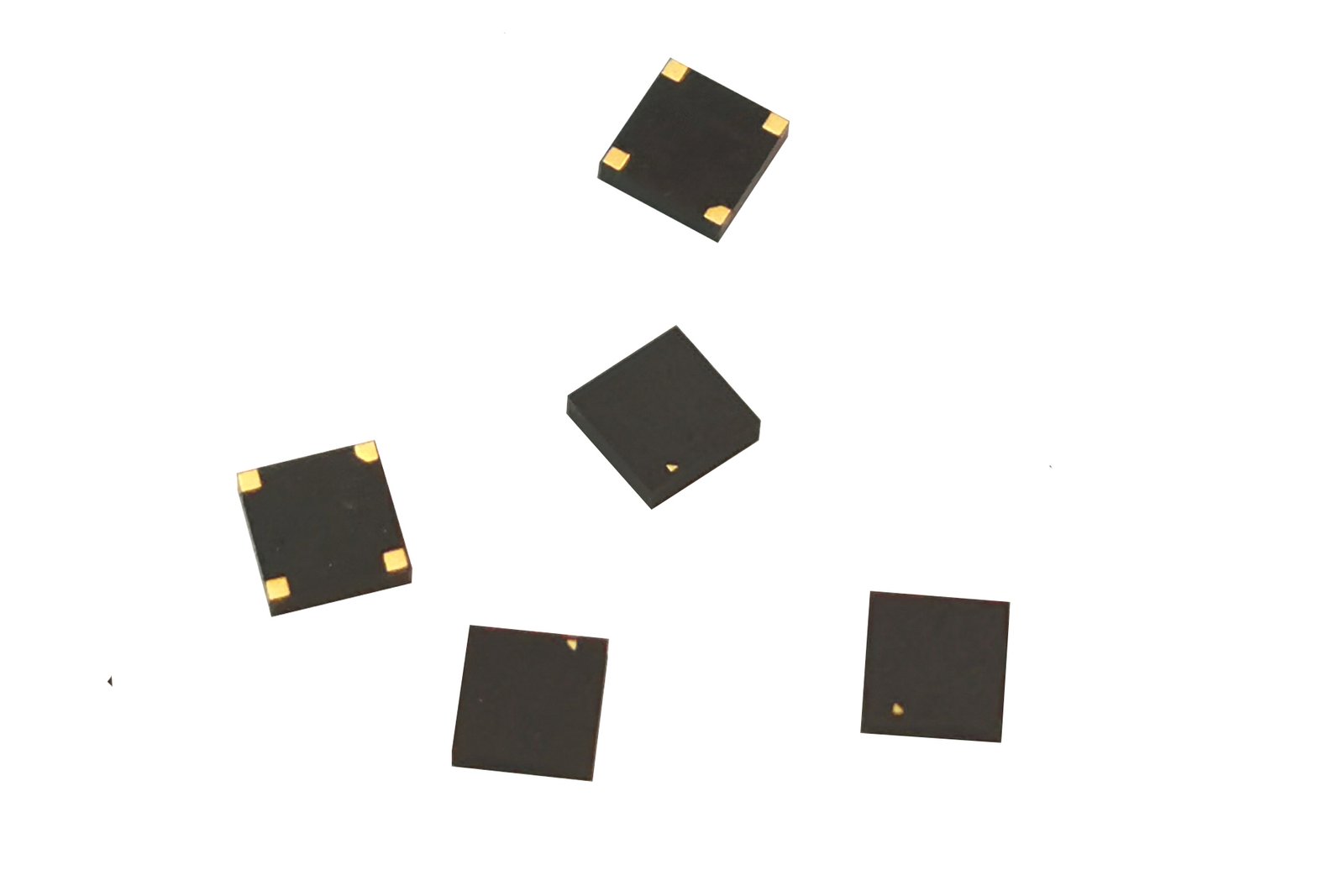

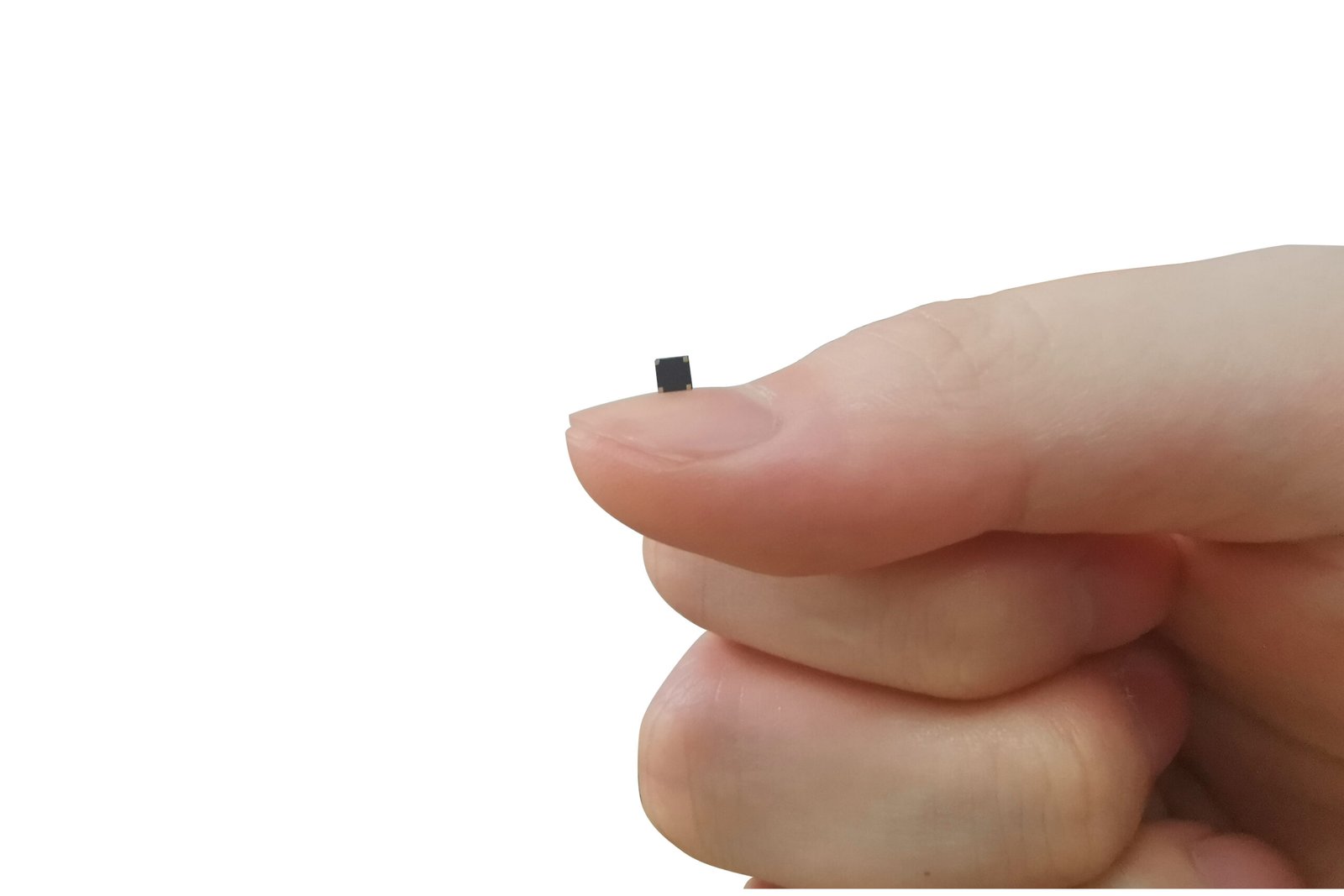

Q: What are the sizes of the tag?
A: There are three sizes: 2.6×2.6×0.8mm; 3.0×3.0×0.8mm; 4.0×4.0×1.0mm
Q: What frequency can these tag support?
A: According to the shape of the external coupled antenna, it can adapt to the full frequency of 860MHz ~ 960MHz.
Q: What chips does the tag support?
A: Supports all ISO18000-6C chips.
Q: Is the tag high temperature resistant?
A: -196℃/>2000h, 125℃/>1000h, 260℃/5min.
Q: Is the label waterproof?
A: Protection grade IP67.
Q: Are these tags divided into both sides?
A: There is no distinction between positive and negative.
Q: Can these tags be with adhesive?
A: Tag without adhesive.
Q: In what form is the tag shipped?
A: Single bulk static bag packaging or braiding.

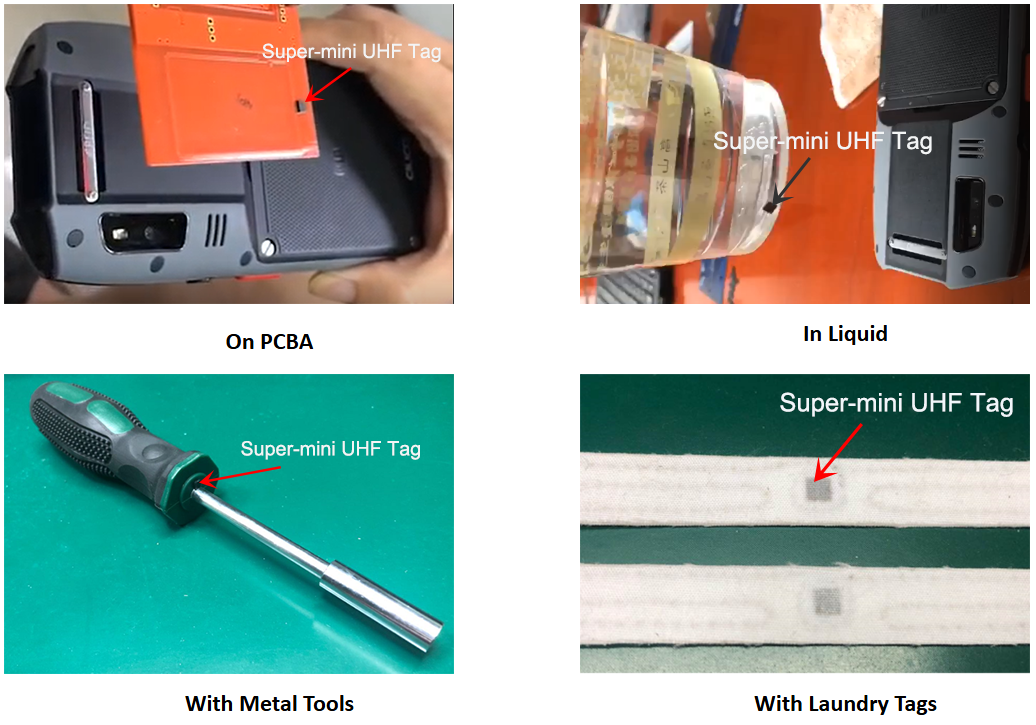

Application
Q: Can tags be used on metal?
A: The metal material itself can be used to change it into a coupled antenna.
Q: Can these tags be used on metal?
A: The metal itself can be used as a coupled antenna.
Q: Can these tags be embedded into metal?
A: Can’t be embedded in the metal.
Q: How to place theses tags on metal materials?
A: Directly place the tag upright on the metal edge or open a long slit on the metal and place the tag flat on the slit (the placement position needs to be adjusted according to the shape of the metal)

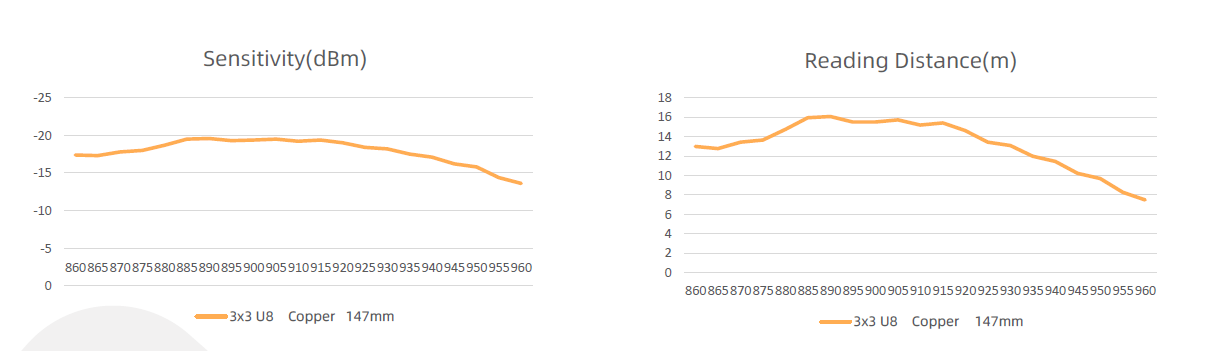

Performance
Q: What is the read distance of the extended antenna without coupling?
A: It can be identified at close range without using the coupling extension antenna. The identification distance will vary according to the model of the reader, and the identification distance is within 0.5m.

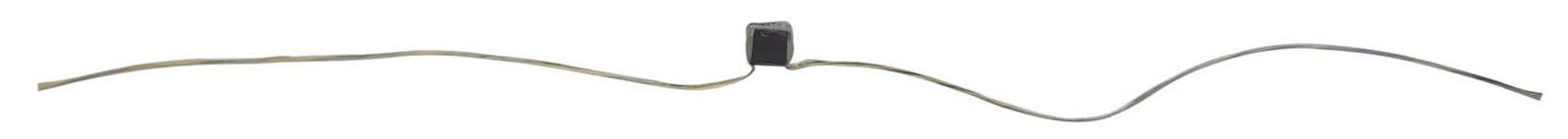

Q: What is the read distance of the extended antenna using coupling?
A: Depending on the length and shape of the coupled antenna, the recognition distance can be extended to several meters.
Other
Q: Can the tag size be customized?
A: The size cannot be customized.
Q: Can these tag surface be printed?
A: The surface can be printed with laser UV codes within 6 characters.
Q: What’s the MOQ of this tag?
A: The MOQ is 10K.
Q: How long is the general delivery date?
A: 6-8 weeks for less than 500K, 8-10 weeks for more than 500K
