TI Tag-it HF-I

Description

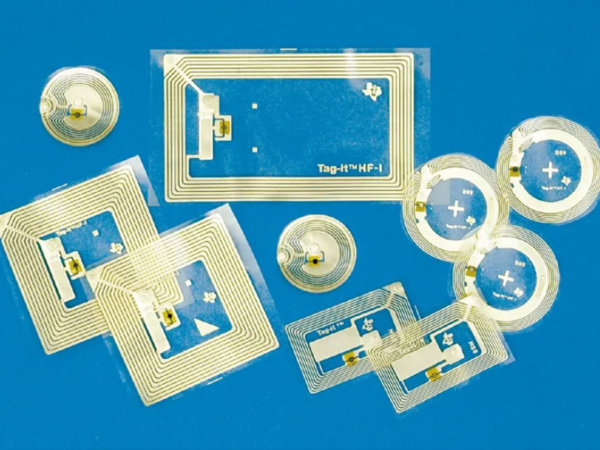

The Tag-it HF-I Plus Transponder Inlay famil of Texas Instruments RFID is based on the ISO/IEC 15693 standard for contactless integrated circuit cards (vicinity cards) and ISO/IEC 18000-3 standard for item management. This family of various available inlay shapes form also the basis of consumable smart labels for use in markets requiring quick and accurate.

Express parcel delivery

Airline boarding pass and baggage handing

Anti-counterfeit prevention

Distribution logistics and supply chain management

Building access badges

Asset tagging

TI RFID Chip Category

–  Tag-it™ HF-I Standard:  Memory 256bits, Main Mode P/N: RF-HDT-SJME-G1

– Tag-it™ HF-I Pro: Memory 256bits, Main Mode P/N: RF-HDT-AJLE-G1

– Tag-it™ HF-I Plus:Memory 2048bits, Main Mode P/N: RF-HDT-AJLC-G0

Inlay Format	Parameter
	Part Number	RO-SY4545TPL-2A(RI-I11-112A)	RO-SY4545TPL-2B(RI-I11-112B)	RO-SY4545TPL-2C*(Customization)
	Antenna	45x45mm
	Frequency (MHz)	13.80±0.4	14.40±0.4	14.15±0.4
	Protocol	ISO15693, ISO18000-3
	Chip Memory	2048 Bits
	Part Number	RO-SY7645TPL-2A(RI-I02-112A)	RO-SY7645TPL-2B(RI-I02-112B)	RO-SY7645TPL-2C(Customization)
	Antenna	45x76mm
	Frequency (MHz)	13.86±0.4	14.40±0.4	14.10±0.4
	Protocol	ISO15693, ISO18000-3
	Chip Memory	2048 Bits
	Part Number	RO-SY3822TPL-2*(RI-I03-112A)
	Antenna	22.5x38mm
	Frequency (MHz)	13.80±0.4
	Protocol	ISO15693, ISO18000-3
	Chip Memory	2048 Bits
	Part Number	RO-SYP24TPL-2*(RI-I16-112A)
	Antenna	φ24.2±0.1mm
	Frequency (MHz)	13.80±0.4
	Protocol	ISO15693, ISO18000-3
	Chip Memory	2048 Bits
