UHF On-Metal LED Flexible Label Honor Series

Honor presents a new generation Passive UHF On-Metal Flexible Label with LED lighting indication!

Honor label can work perfectly on metal surface, assist RFID applications for specific object location query or finding navigation by LED flashing. Honor labels could be printed by regular way and make customized dimensions.

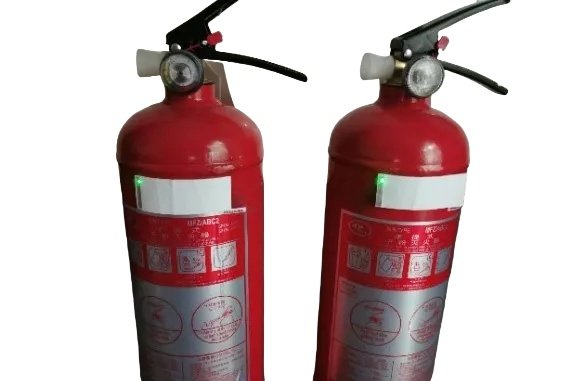

With RFID handheld reader, tag’s EPC can be read and LED lighting activated remotely, so as to quickly query and locate the target item. Greatly improve the efficiency and management for items finding objects!

The wide range anti-metal design is boosting various RFID applications with metal objects!

Feature

※ LED light, On-metal and flexible printable combination
※ Led flashing on specific label’s EPC from group items
※ Suitable to various metal surfaces
※ Bulk-reading, quick LED On
※ Plain surface, support most RFID printers
※ Shipping form: Wet inlay, Label in roll
※ Various antenna and label size, tailored to the project

General Specification

※ Dimension: 60×30×1.4mm (Customizable)
※ Protocol: ISO18000-6C, EPC C1G2
※ RFID Chip: KX2005XBL (OTP memory)
※ EPC: 160bits, User: 1312bits, TID: 96bits
※ Frequency: 840~960MHz
※ Working Mode: Passive
※ Chip Reading Sensitivity: -23.5dBm
※ Antenna Pattern and LED position: customs design
※ LED: Red, Green

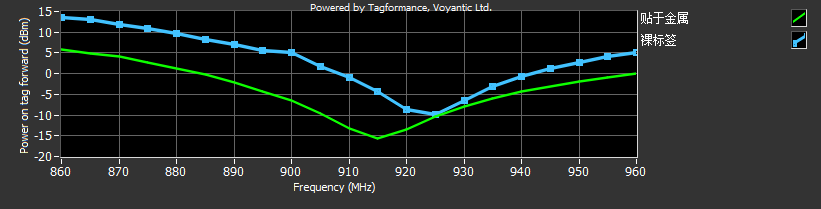

Performance and Test

Physical Feature

Q: What are the sizes of the tag?
A: There are three sizes: 2.6×2.6×0.8mm; 3.0×3.0×0.8mm; 4.0×4.0×1.0mm

Q: What frequency can these tag support?
A: According to the shape of the external coupled antenna, it can adapt to the full frequency of 860MHz ~ 960MHz.

Q: What chips does the tag support?
A: Supports all ISO18000-6C chips.

Q: Is the tag high temperature resistant?
A: -196℃/>2000h, 125℃/>1000h, 260℃/5min.

Q: Is the label waterproof?
A: Protection grade IP67.

Q: Are these tags divided into both sides?
A: There is no distinction between positive and negative.

Q: Can these tags be with adhesive?
A: Tag without adhesive.

Q: In what form is the tag shipped?
A: Single bulk static bag packaging or braiding.

Application

Q: Can tags be used on metal?
A: The metal material itself can be used to change it into a coupled antenna.

Q: Can these tags be used on metal?
A: The metal itself can be used as a coupled antenna.

Q: Can these tags be embedded into metal?
A: Can’t be embedded in the metal.

Q: How to place theses tags on metal materials?
A: Directly place the tag upright on the metal edge or open a long slit on the metal and place the tag flat on the slit (the placement position needs to be adjusted according to the shape of the metal)

Performance

Q: What is the read distance of the extended antenna without coupling?
A: It can be identified at close range without using the coupling extension antenna. The identification distance will vary according to the model of the reader, and the identification distance is within 0.5m.

Q: What is the read distance of the extended antenna using coupling?
A: Depending on the length and shape of the coupled antenna, the recognition distance can be extended to several meters.

Other

Q: Can the tag size be customized?
A: The size cannot be customized.

Q: Can these tag surface be printed?
A: The surface can be printed with laser UV codes within 6 characters.

Q: What’s the MOQ of this tag?
A: The MOQ is 10K.

Q: How long is the general delivery date?
A: 6-8 weeks for less than 500K, 8-10 weeks for more than 500K
