Conqueror Tag—High Reliability UHF On-metal Tag
Conqueror Series specially designed for RFID applica-tions of metal objects such as tools, medical instruments etc!Robust and Industrial-grade tags have outstanding characteristics of metal resistance, high temperature resistance, corrosion resistance and high waterproof level (IP67)!Main application: Medical equipment, Tools, Metalc objects, etc.
Model Selection
| MODEL | RFID CHIP | DIMENSION | READING DISTANCE |
| RF-SC1XYG3030SL2-5B | ICODE SLIX2 | 3.0×3.0×0.9mm | 4mm |
| RF-SC1XYG5050SL2-5B | ICODE SLIX2 | 5.0×5.0×0.9mm | 19mm |
| RF-SC1XYG7070SL2-5B | ICODE SLIX2 | 7.0×7.0×0.9mm | 25mm |
| RF-SC1XYG8080SL2-5B | ICODE SLIX2 | 8.0×8.0×0.9mm | 27mm |
| Accept customization of more UHF chips! | |||
Feature

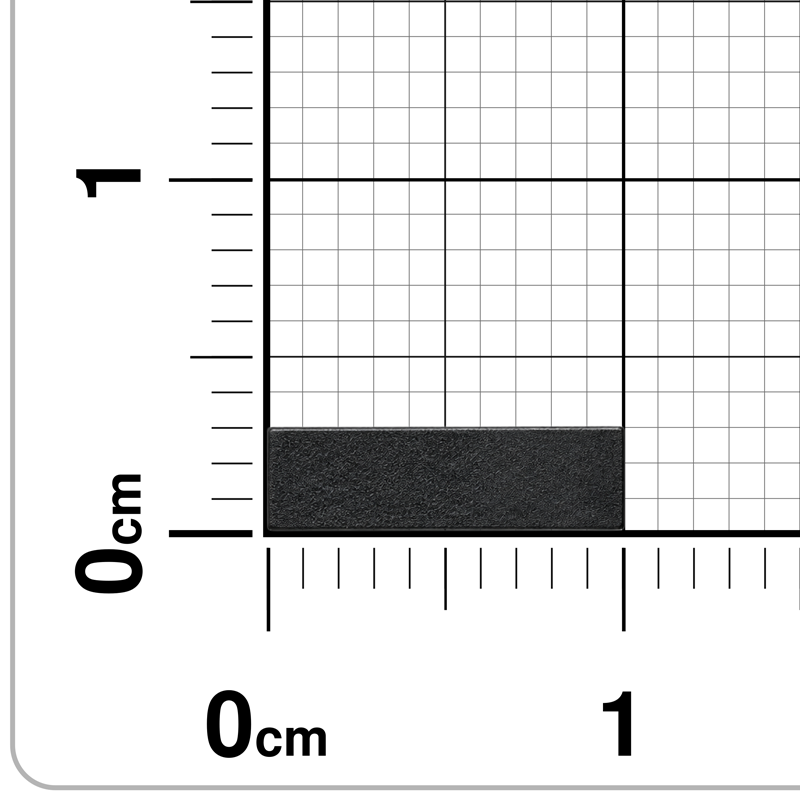

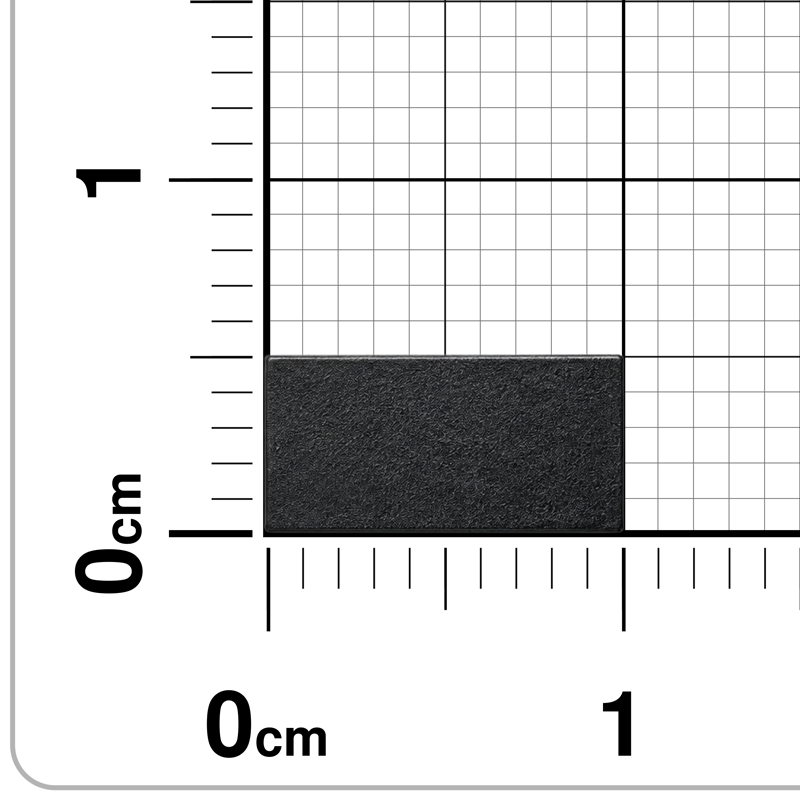

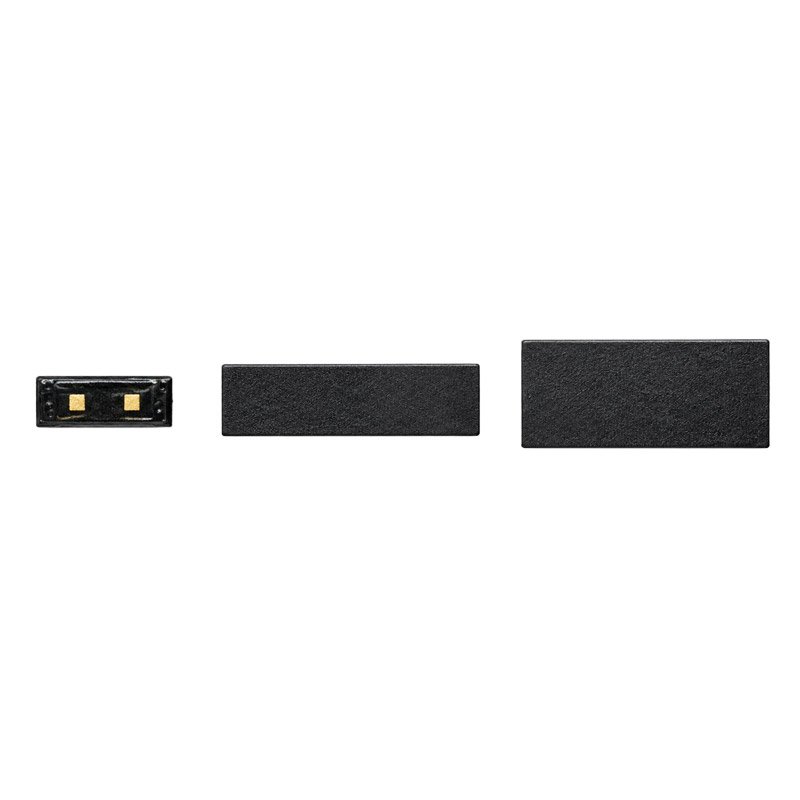

※ Dimension: 2×5.8×1.7 mm,3×10×3.5mm
※ Chip: Impinj Monza R6P, NXP UCODE 9
※ Protocol: ISO18000-6B/C
※ Wide Frequency Range: 860~940M meets variable RFID/IOT applications
※ Installation Way：Attached to metal surface(glue), implant inside(slotting + glue)
※ Outstanding Performance:
Reference as implanting inside metal surface
40-10cm（depend on slotting depth）
※ Temperature Resistance：
-196 °C/ >2000h, 125°C/ 1000h, 260 °C/5min
-40 ° C ~+ 85 °C Working Temperature
※ Waterproofing Grade：IP67
※ Multi application scenarios
Application
Video
FAQ
Physical Feature
Q: Is there any difference between the front and back of Conqueror series?

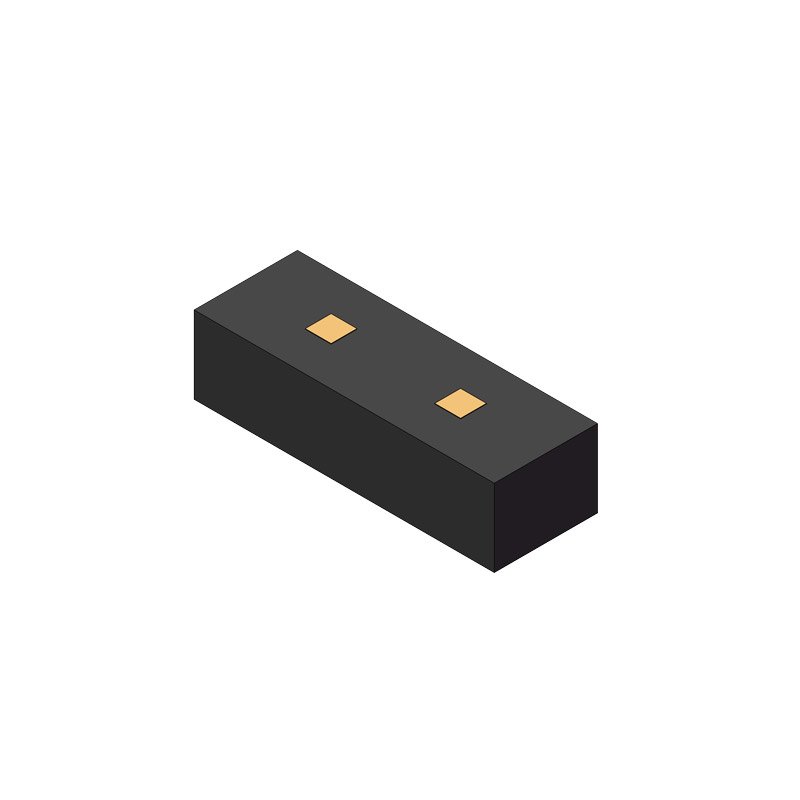

A: There are positive and negative differences. The gold mark point should face the metal surface.
Q: What chips can Conqueror series be used?
A: ISO18000-6C-protocol chips can be used.Q: Is the tag high temperature resistant?
A: -196℃/>2000h, 125℃/>1000h, 260℃/5min.
Q: How long can data be retained on tags?
A: According to the chip, it has been available for 10 years, 20 years and 50 years.
Q: Is the label waterproof?
A: Protection grade IP68.
Q: What materials are used in the tag?
A: Epoxy resin and fiberboard.
Q: In what form is the product shipped?
A: Three ways: scattering, braiding and UV film.
Q: Does the tag carry adhesive when shipping?
A: Without adhesive.
Q: Can the tag be sterilized?
A: High temperature sterilization or ultraviolet sterilization can be performed.
Application
Q: Can Conqueror series be embedded in metal?

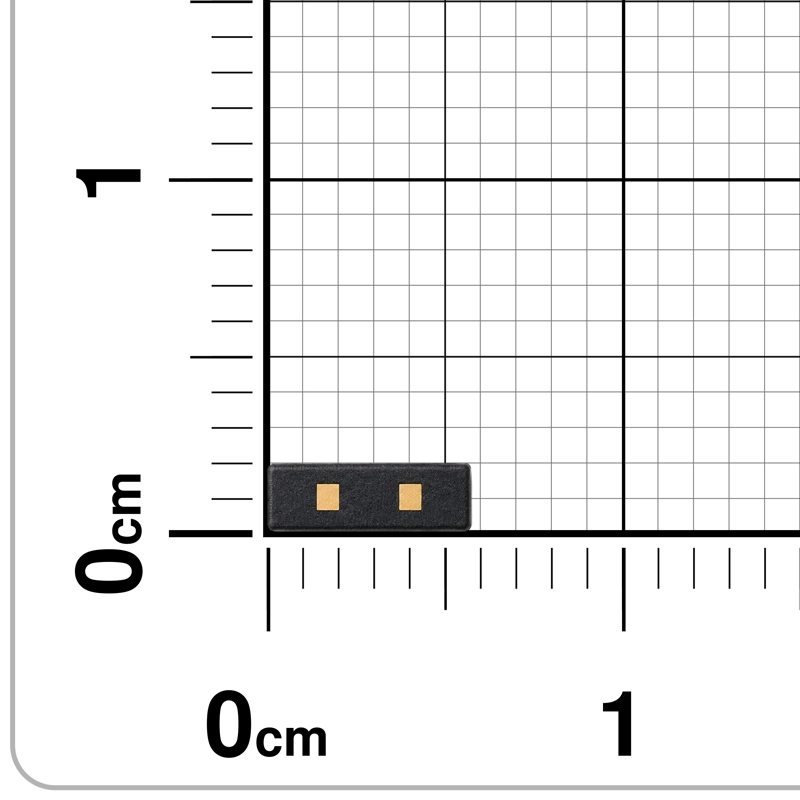

A: The 5.8*2*1.7 model can be embedded into metal, while the 10*3*3.5 model cannot, and the performance will be reduced.
Q: Can Conqueror series be put in metal boxes?
A: It can be put into a metal box with an open top, and the performance will change according to the size of the opening. The larger the opening, the better the performance.
Q: Can Conqueror series be used on nonmetallic substances?
A: This series is developed for metal Media. It can be read on non-metal media and recognized in short distance, but its performance cannot reach the best.
Performance
Q: How far is the read distance?
A: The reading distance varies from 1m to 6m according to the shape of metal medium and the position of label placement.
Other
Q: What’s the MOQ of this tag?
A: The MOQ is 10K.
Q: How long is the general delivery date?
A: the general delivery time is 2 weeks.
Q: What personalized service does the tag have?
A: Laser code or screen printing can be printed on the surface.
Q: Can I customize the size?
A: Square tag can be customized.
Q: What must be considered when recycling?
A: It can be used as ordinary garbage disposal and recycling.
Q: Are biocompatibility reports available?
A: All raw materials can provide MSDS report, which conforms to all relevant test items of Rohs and Reach.
Q: Are there any documents for the toxicity test?
A: Refer to MSDS report and Reach test report.
