Kings Tag
High Reliability HF Tag

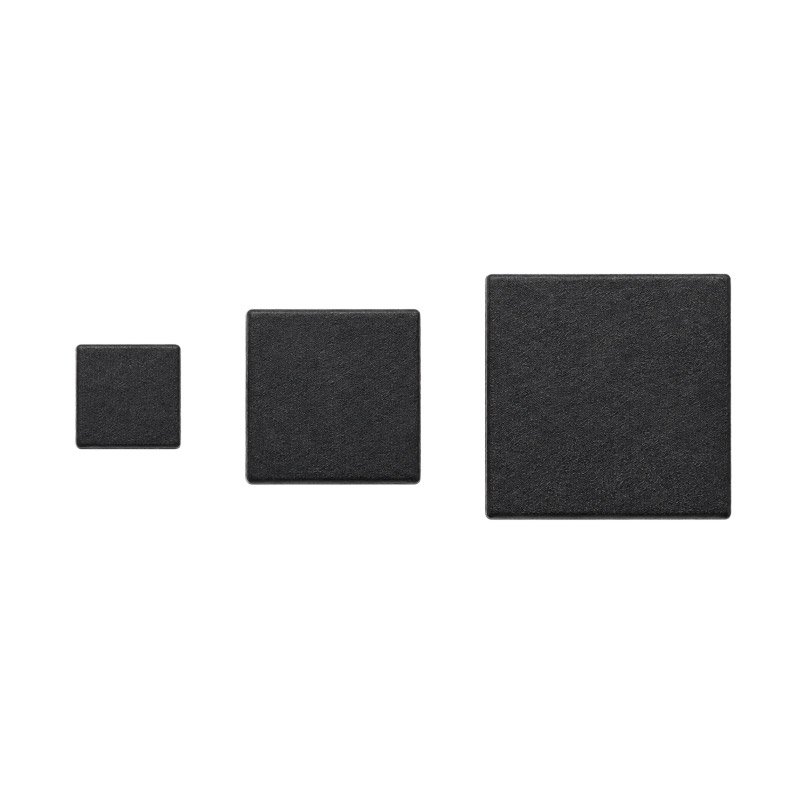

Kings Series presents a collection of tiny HF RFID tags that support ISO 14443, NFC Forum, and ISO 15693 RFID chips.
The built-in antenna enables direct tag reading with excellent performance. The tags can be fixed onto object surfaces or embedded into items through injection molding and other methods to enable NFC interactive services and digitalized item management.
Model Selection
| MODEL | RFID CHIP | DIMENSION | READING DISTANCE |

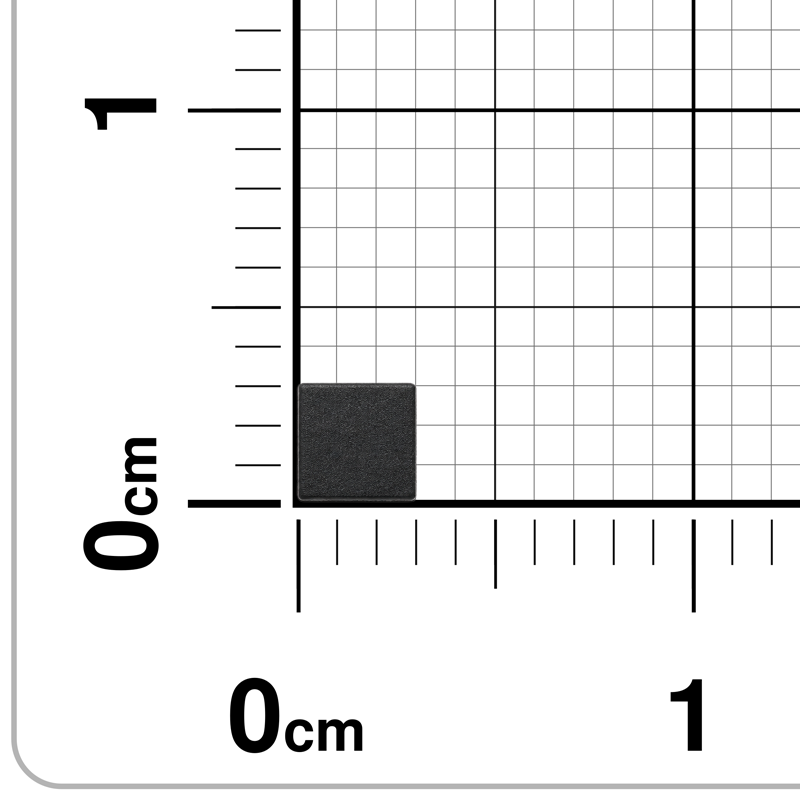

| RF-SC1XYG3030SL2-5B | ICODE SLIX2 | 3.0×3.0×0.9mm | 4mm |

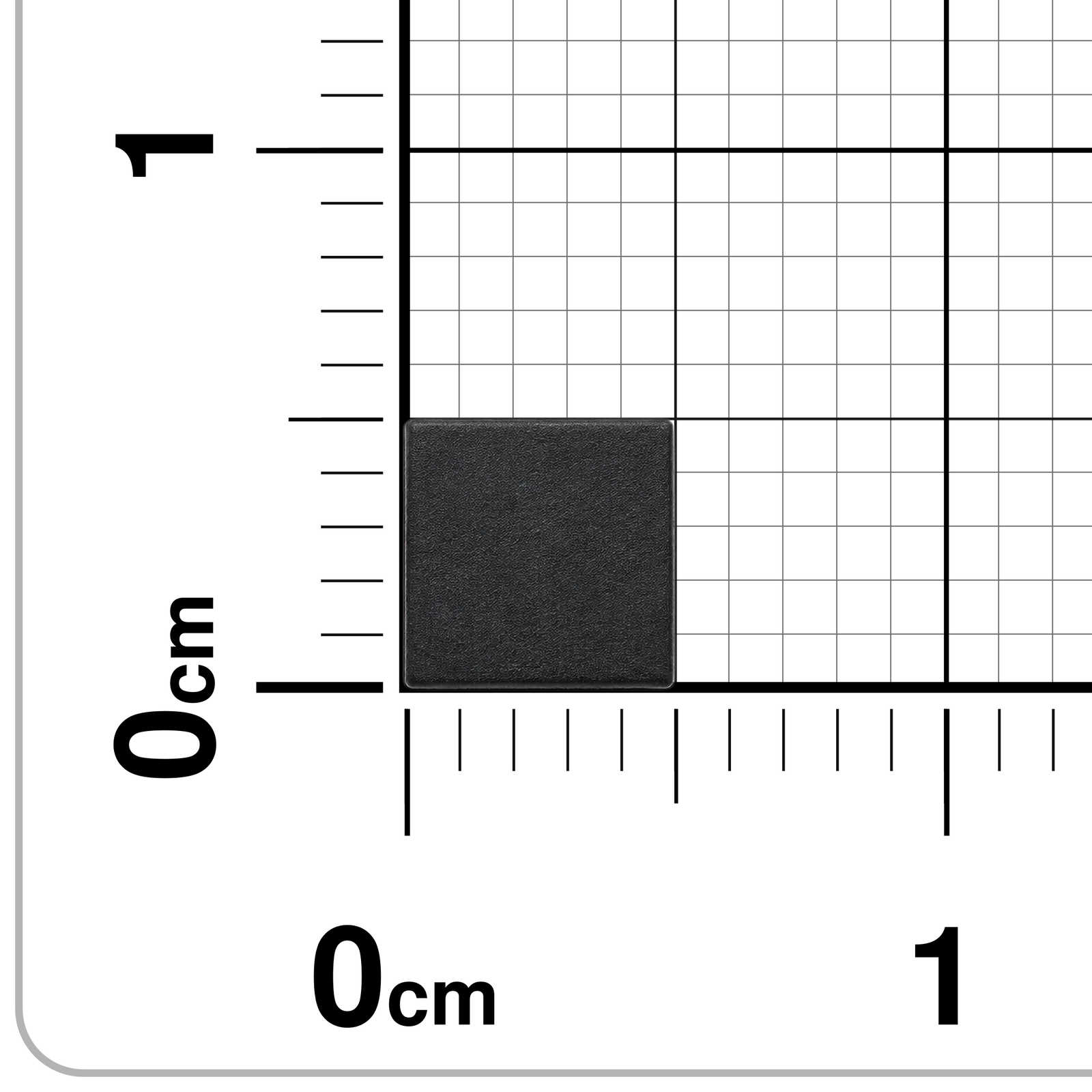

| RF-SC1XYG5050SL2-5B | ICODE SLIX2 | 5.0×5.0×0.9mm | 19mm |

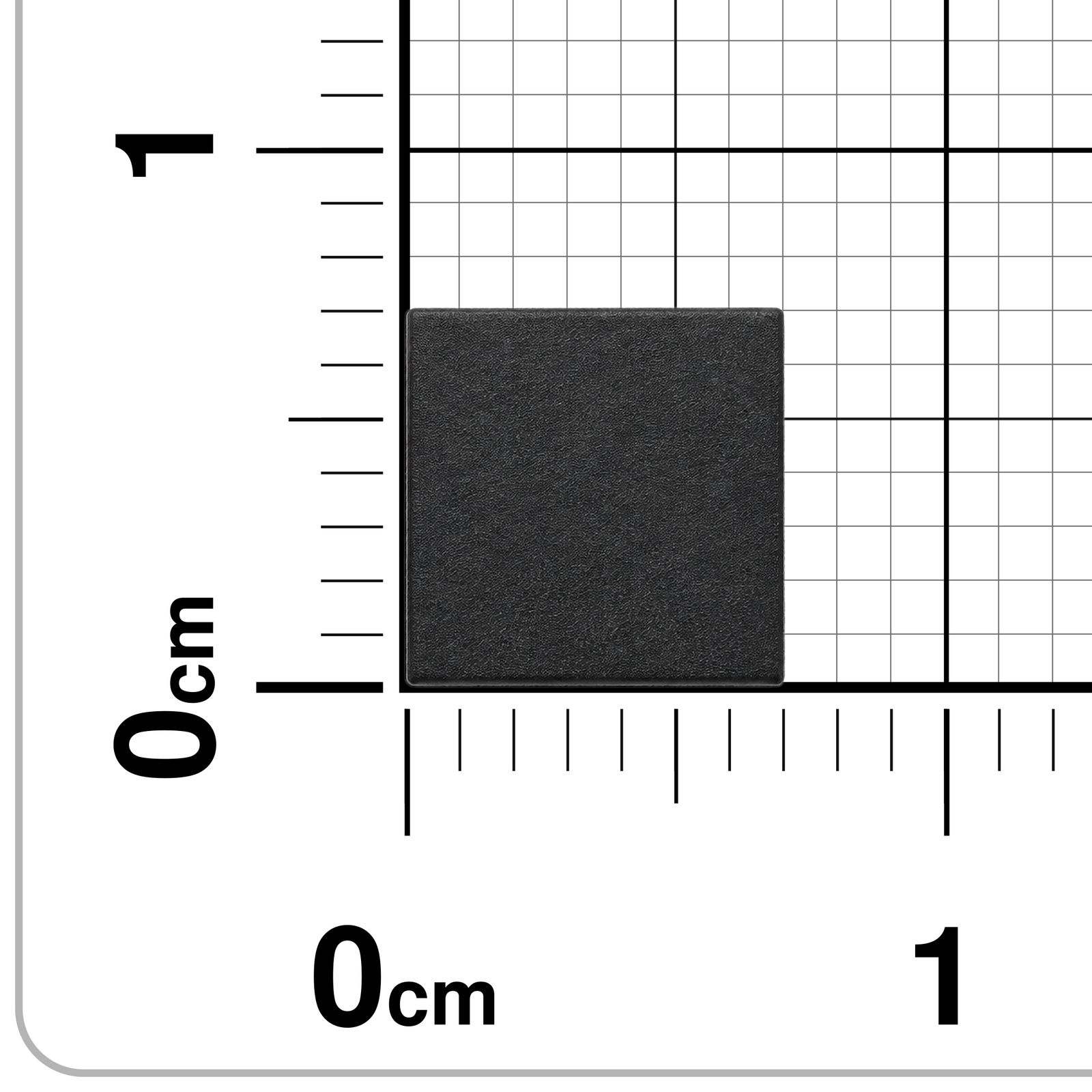

| RF-SC1XYG7070SL2-5B | ICODE SLIX2 | 7.0×7.0×0.9mm | 25mm |

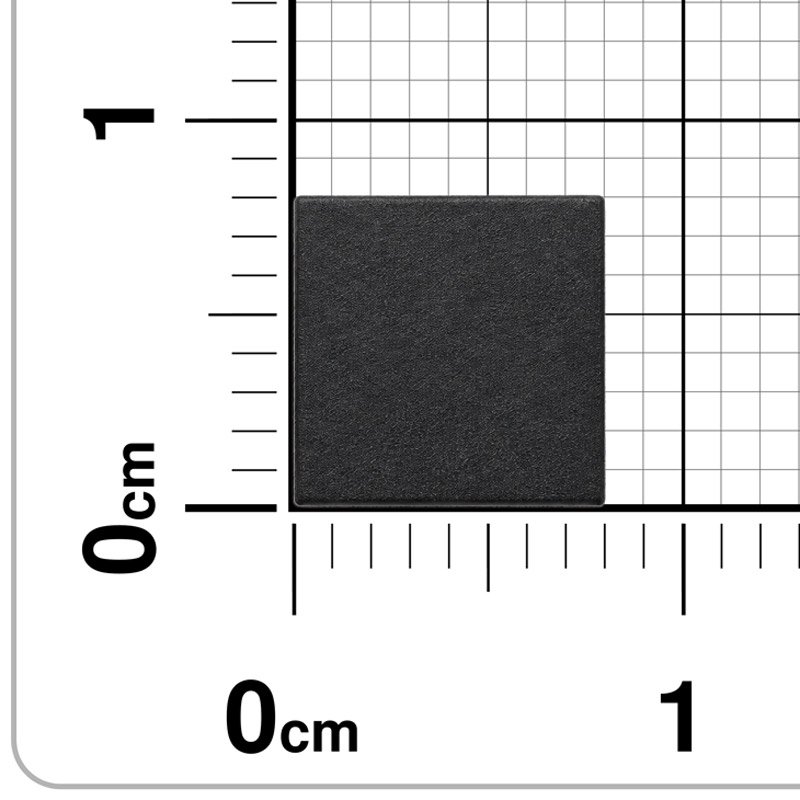

| RF-SC1XYG8080SL2-5B | ICODE SLIX2 | 8.0×8.0×0.9mm | 27mm |
| Accept customization of more UHF chips! | |||

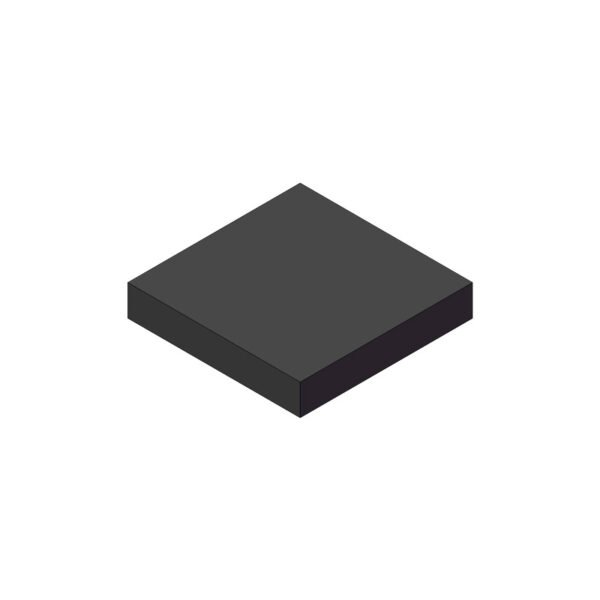

Reference Picture
| Mark | Dimension(mm) |
| L | 5.0 ± 0.15 |
| W | 5.0 ± 0.15 |
| T | 0.9 ± 0.20 |
Application
