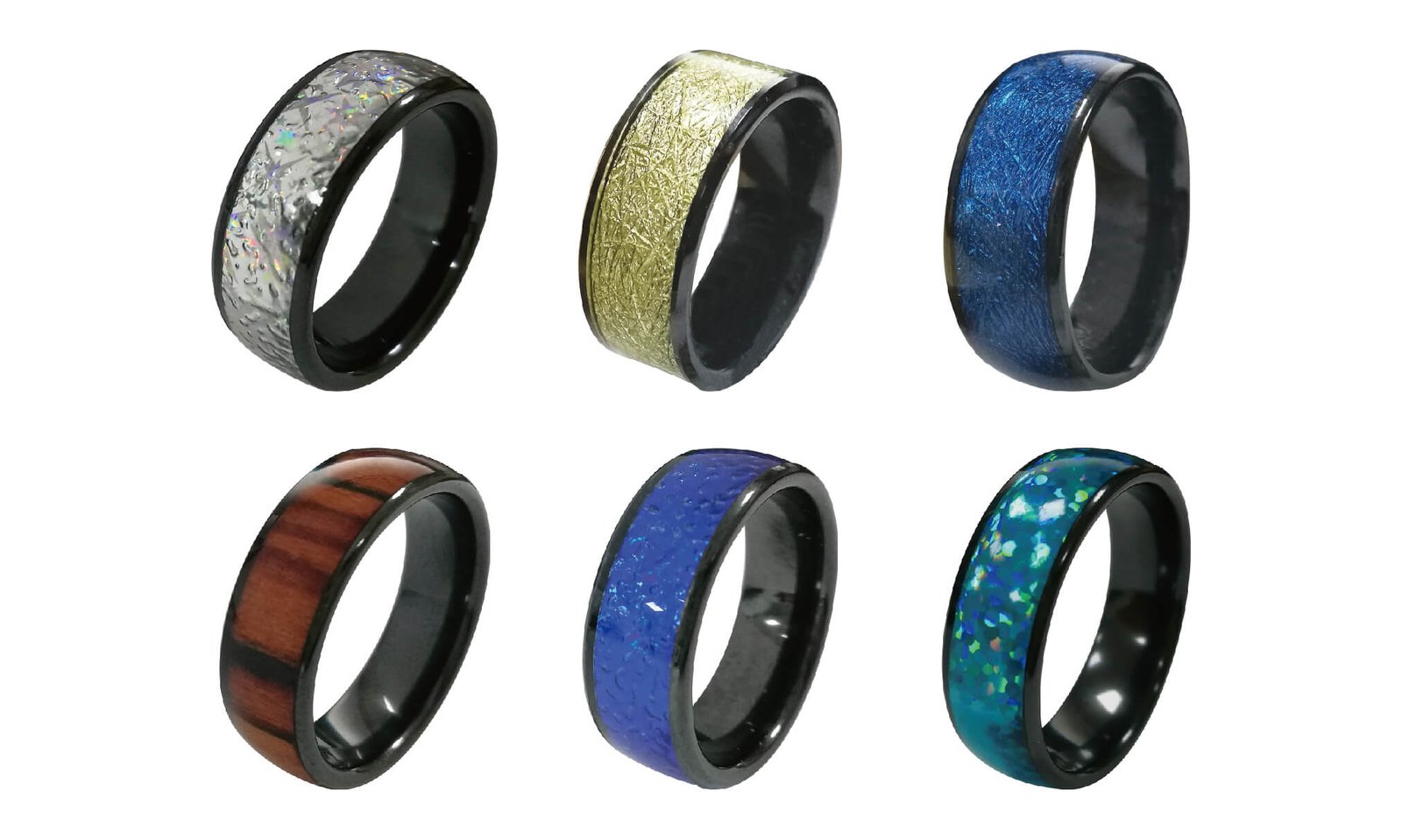

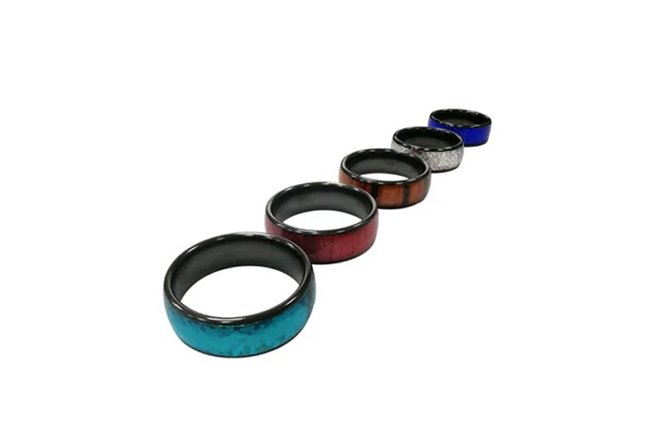

RFID NFC Ring

Overview

NFC ring is a wearable product that integrates fashion, personalization, intelligence, and NFC functions. According to the chip function, it can be applied to access control, social business cards, car keys, bus ticket cards, and even used with financial chips for non-contact small payments in banks.
Not only can it can provide a variety of materials and appearances, but also special NFC rings can be customized on demand, and even personal data processing can be done.

Application

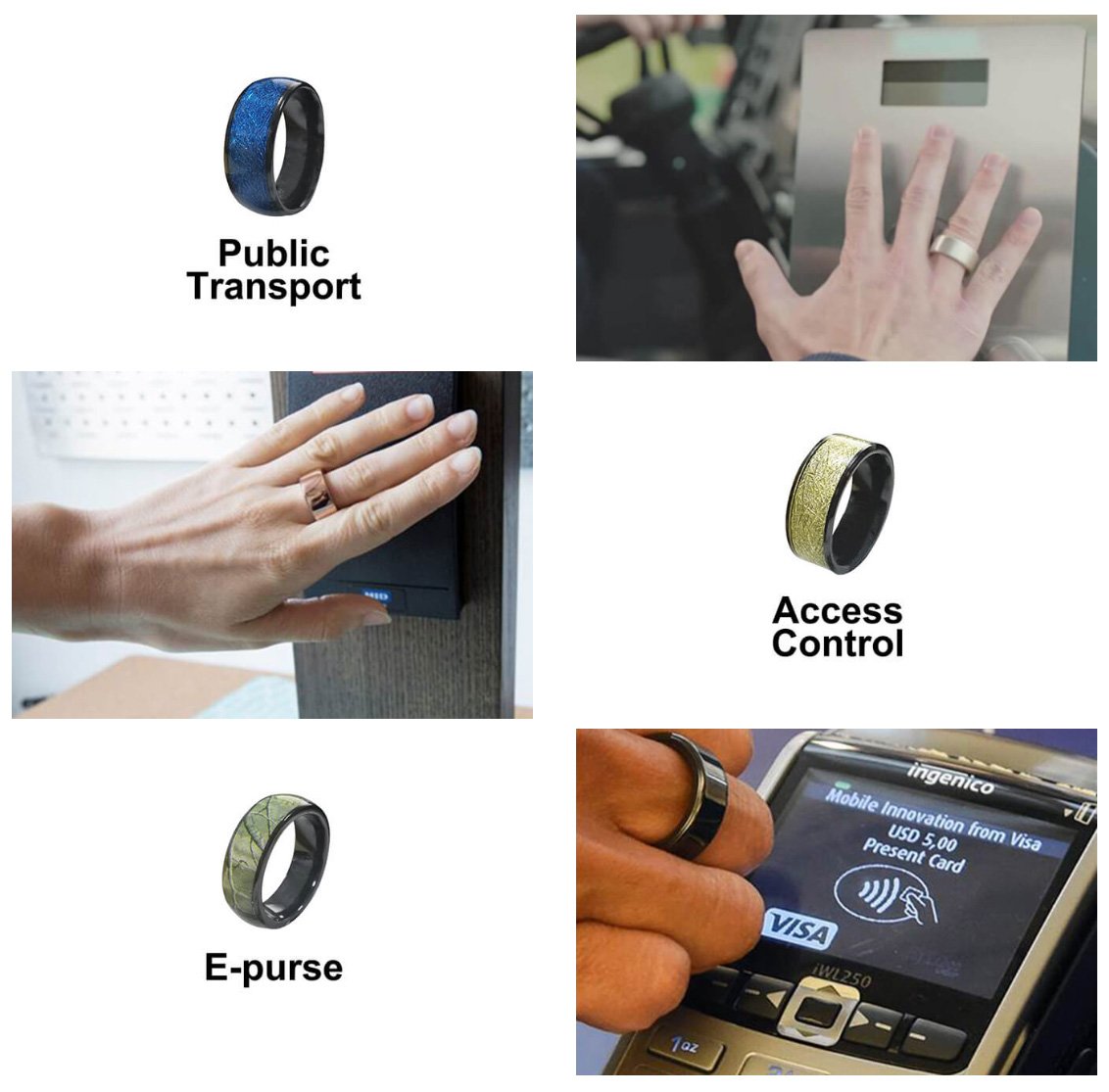

Application: NFC payment, Car Keys, Access Control, Public Transportation, Membership etc.

Feature

※ Chip: NTAG 213/215/216, ISO 14443A protocol NFC Chip, Contactless
CPU Chip

※ Antenna Size: Customization, according to different models, chips
and read & write performance requirements

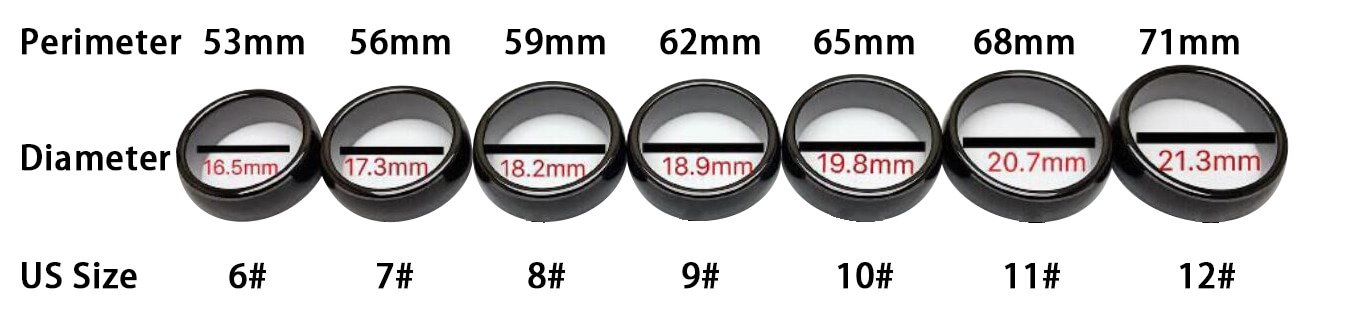

※ Dimensions: Ring Width 7~9mm, inner diameter refer to the following
data

※ Frequency: 13.0~14.5MHz, can be customized

※ Reading Distance: 10-30mm (Depends on ring specifications and reader
performance)

※ Reading direction: The metal ring has a fixed reading direction, and
other materials can be identified in all directions at close range

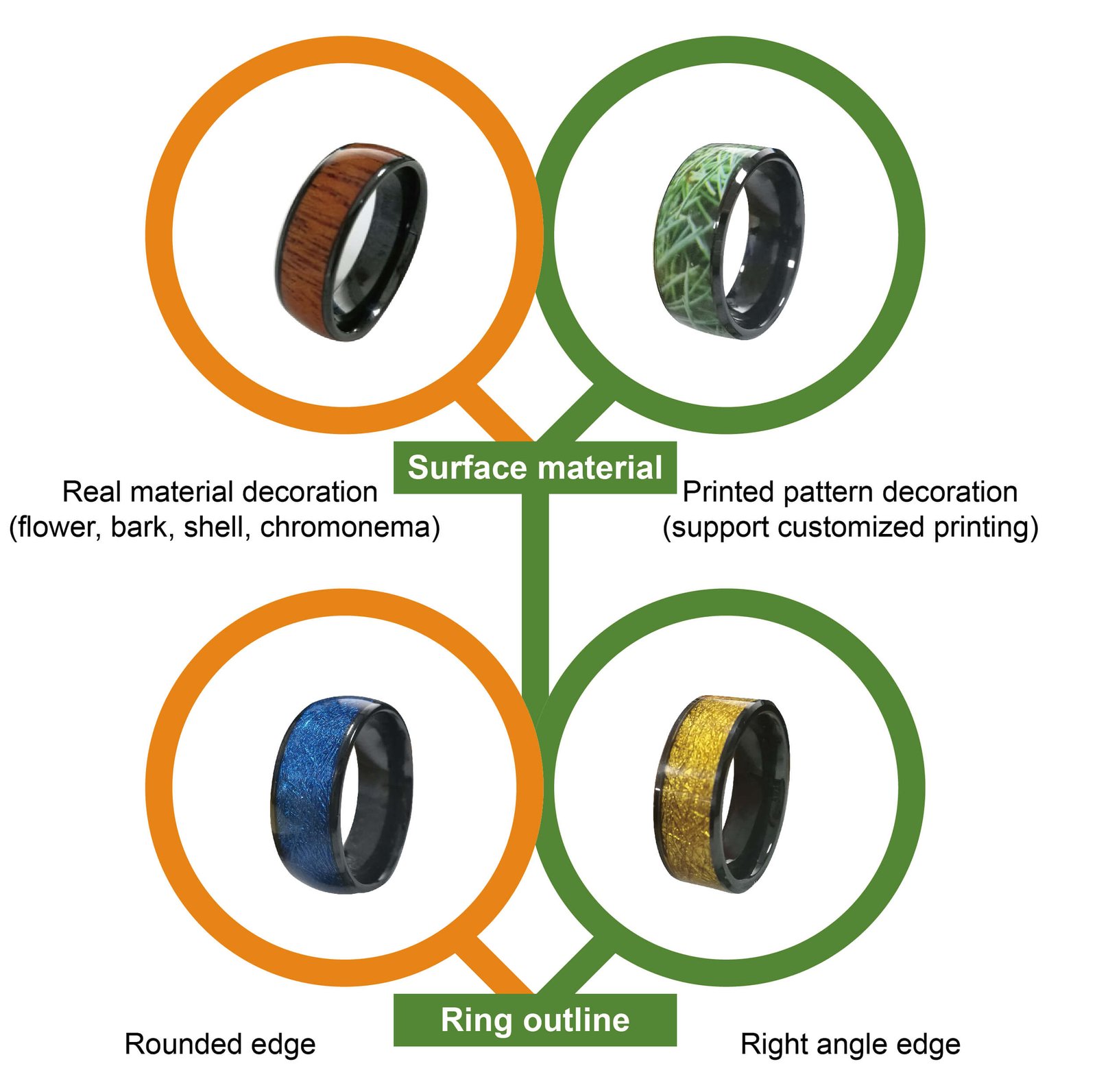

※ Material: Plastic, Ceramic, Alloy, Silver, Gold (single material
optional)

※ IP Rating: IP65~IP68(Different forming processes caused different IP
rate)

※ Personalization: Laser engraving, Built-in personalized patterns
